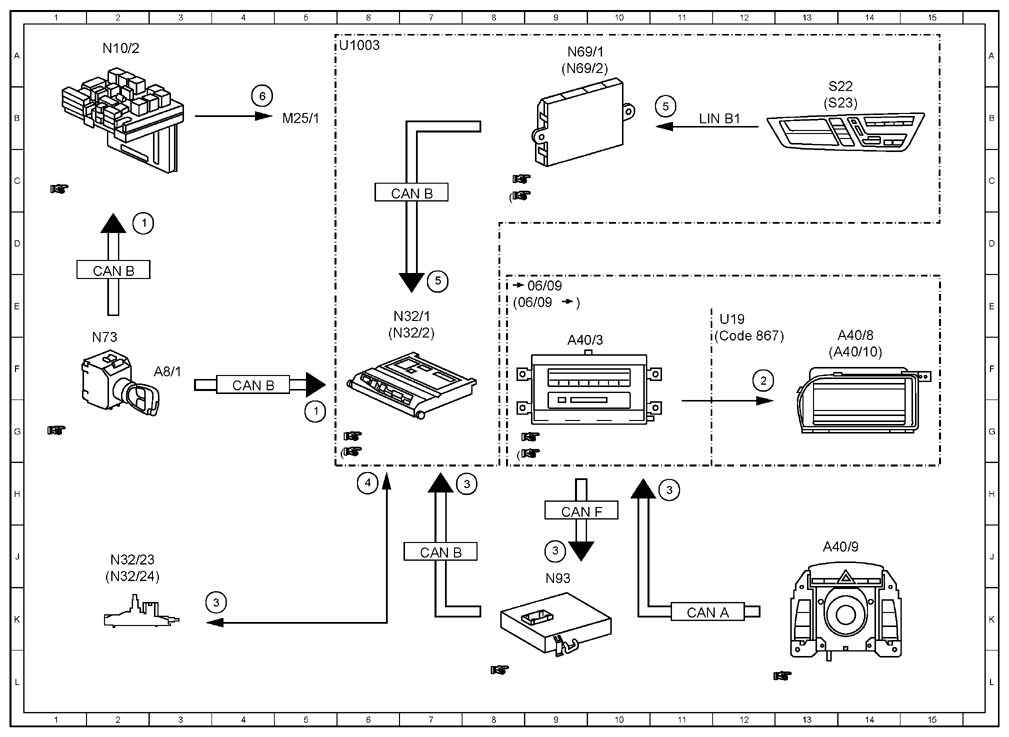

| 1 |
Circuit 15R/circuit 15, status ON |
2D |
| 1 |
Circuit 15R/circuit 15, status ON |
5G |
| 2 |
FDS submenu display, status |
12F |
| 3 |
Lumbar support pressure adjustment, request |
11H |
| 3 |
Lumbar support pressure adjustment, request |
9J |
| 3 |
Lumbar support pressure adjustment, request |
4K |
| 3 |
Lumbar support pressure adjustment, request |
8H |
| 4 |
Pressure sensor, signal |
|
| 5 |
Adjust or store memory position, request |
11B |
| 5 |
Adjust or store memory position, request |
7E |
| 6 |
Lumbar support pump, actuation |
4B |
| A40/10 |
SPLITVIEW display |
14F |
| A40/3 |
COMAND control unit |
9F |
| A40/8 |
COMAND display |
14F |
| A40/9 |
Front central operating unit |
13J |
| A8/1 |
Transmitter key |
3F |
| CAN A |
Telematics CAN |
11K |
| CAN B |
Interior CAN |
4F |
| CAN B |
Interior CAN |
2E |
| CAN B |
Interior CAN |
7J |
| CAN B |
Interior CAN |
7C |
| CAN F |
Central CAN |
9H |
| Code 867 |
SPLITVIEW |
12F |
| LIN B1 |
Front door LIN |
11B |
| M25/1 |
Lumbar pump |
5B |
| N10/2 |
Rear SAM control unit with fuse and relay module |
2A |
| N32/1 |
Left front seat control unit |
7E |
| N32/2 |
Right front seat control unit |
6F |
| N32/23 |
Driver lumbar support regulator control unit |
2J |
| N32/24 |
Front passenger lumbar support regulator control unit |
2J |
| N69/1 |
Left front door control unit |
9A |
| N69/2 |
Right front door control unit |
9A |
| N73 |
EIS [EZS] control unit |
2F |
| N93 |
Central gateway control unit |
9J |
| S22 |
Left front seat operation switch group |
13B |
| S23 |
Right front seat operation switch group |
13B |
| U1003 |
Valid for memory package, electrically adjustable front seats as of model year 2008 |
6A |
| U19 |
Valid for standard equipment |
12E |
