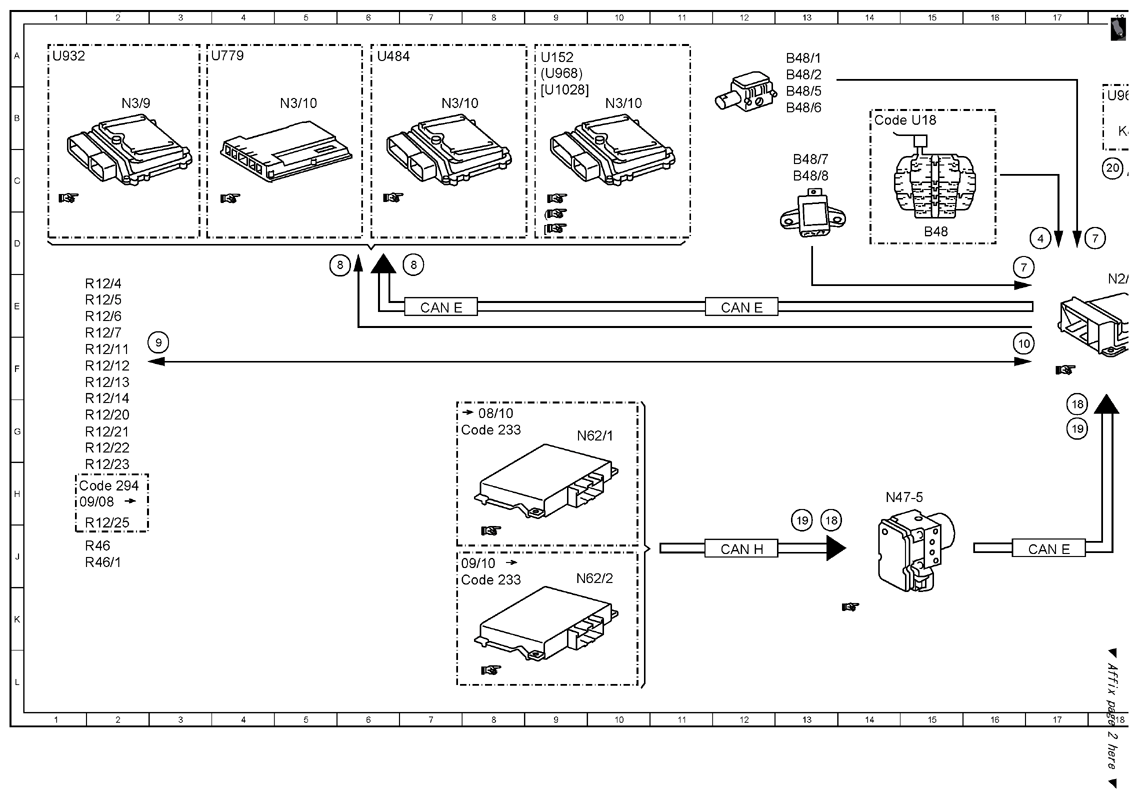

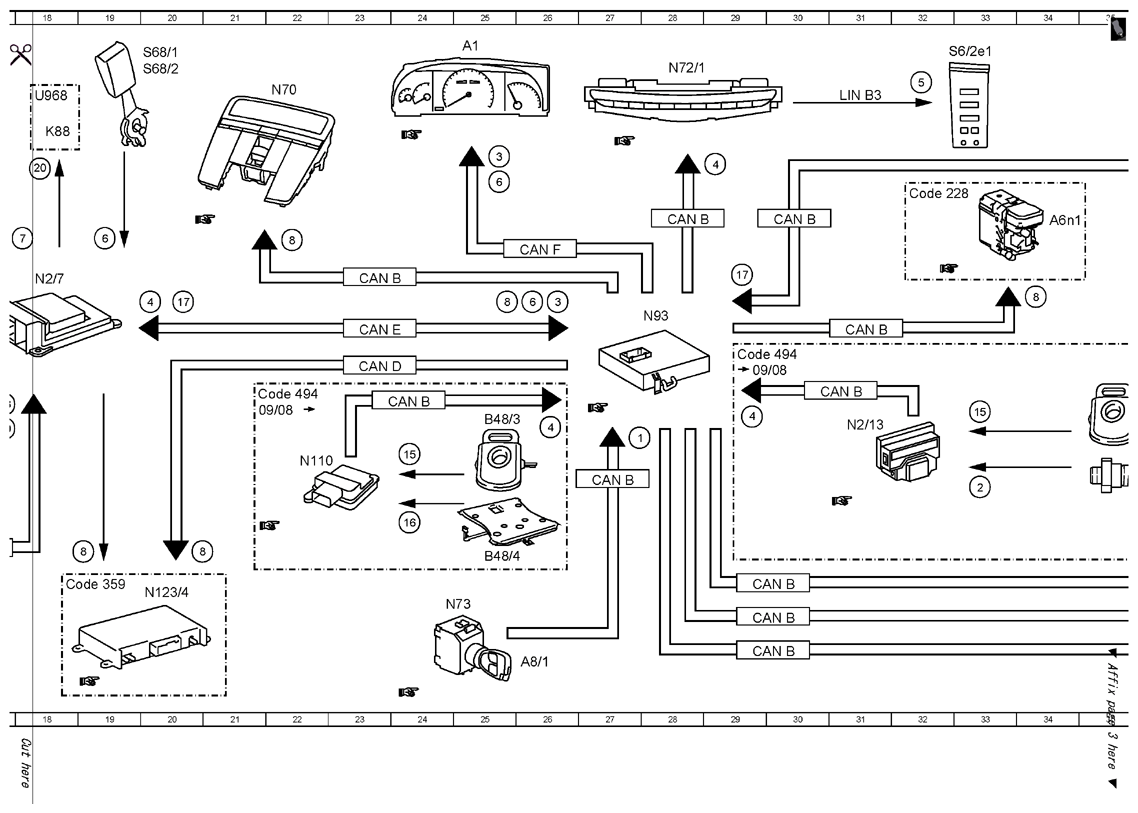

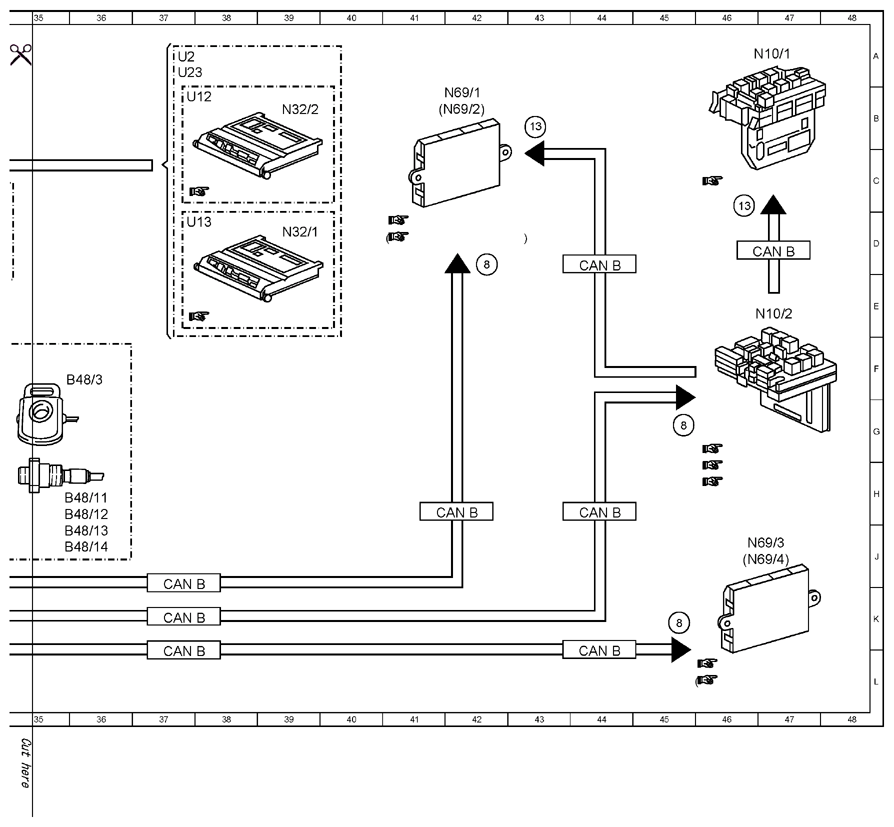

| 1 |
Circuit 15, status |
27G |
| 10 |
Restraint equipment, status |
16F |
| 13 |
Hazard warning flasher, request |
46C |
| 13 |
Hazard warning flasher, request |
|
| 15 |
Belt tension sensor, signal |
24G |
| 15 |
Belt tension sensor, signal |
33G |
| 16 |
Seat occupied recognition pressure sensor, signal |
24J |
| 17 |
Seat longitudinal position, signal |
20E |
| 17 |
Seat longitudinal position, signal |
29E |
| 18 |
Relative speed to opposing object, signal |
17G |
| 18 |
Relative speed to opposing object, signal |
13H |
| 19 |
Time until impact, signal |
17G |
| 19 |
Time until impact, signal |
13H |
| 2 |
WSS (Weight Sensing System) sensor, signal |
33H |
| 20 |
Pyrofuse, actuation |
18C |
| 3 |
Supplemental restraint system (SRS) messages, request |
26E |
| 3 |
Supplemental restraint system (SRS) messages, request |
25C |
| 4 |
Front passenger seat occupation, status |
20E |
| 4 |
Front passenger seat occupation, status |
17D |
| 4 |
Front passenger seat occupation, status |
29C |
| 4 |
Front passenger seat occupation, status |
29G |
| 4 |
Front passenger seat occupation, status |
26G |
| 5 |
ACSR warning lamp, actuation |
32A |
| 6 |
Seat belt buckle switch, status |
19D |
| 6 |
Seat belt buckle switch, status |
26E |
| 6 |
Seat belt buckle switch, status |
25C |
| 7 |
Impact detection, signal |
16D |
| 7 |
Impact detection, signal |
18D |
| 8 |
Crash, signal |
19J |
| 8 |
Crash, signal |
20J |
| 8 |
Crash, signal |
25E |
| 8 |
Crash, signal |
42D |
| 8 |
Crash, signal |
22D |
| 8 |
Crash, signal |
45K |
| 8 |
Crash, signal |
45G |
| 8 |
Crash, signal |
34E |
| 8 |
Crash, signal |
7D |
| 8 |
Crash, signal |
6D |
| 9 |
Restraint equipment, actuation |
3F |
| A1 |
Instrument cluster |
25A |
| A6n1 |
STH or HB control unit |
34D |
| A8/1 |
Transmitter key |
26L |
| B48 |
Front passenger seat occupied and child seat recognition sensor |
15D |
| B48/1 |
Driver-side frontal acceleration sensor |
13A |
| B48/11 |
Left front WSS (Weight Sensing System) sensor |
35H |
| B48/12 |
Right front WSS (Weight Sensing System) sensor |
35H |
| B48/13 |
Left rear WSS (Weight Sensing System) sensor |
35J |
| B48/14 |
Right rear WSS (Weight Sensing System) sensor |
35J |
| B48/2 |
Passenger-side frontal acceleration sensor |
13A |
| B48/3 |
Belt tension sensor |
36F |
| B48/3 |
Belt tension sensor |
25G |
| B48/4 |
Seat occupied recognition pressure sensor |
25J |
| B48/5 |
Airbag system driver assist |
13B |
| B48/6 |
Airbag system front passenger assist |
13B |
| B48/7 |
Driver door pressure sensor |
13C |
| B48/8 |
Front passenger door pressure sensor |
13C |
| CAN B |
Interior CAN |
27H |
| CAN B |
Interior CAN |
47D |
| CAN B |
Interior CAN |
44D |
| CAN B |
Interior CAN |
28D |
| CAN B |
Interior CAN |
29L |
| CAN B |
Interior CAN |
29K |
| CAN B |
Interior CAN |
29K |
| CAN B |
Interior CAN |
31F |
| CAN B |
Interior CAN |
31E |
| CAN B |
Interior CAN |
37L |
| CAN B |
Interior CAN |
37K |
| CAN B |
Interior CAN |
37K |
| CAN B |
Interior CAN |
23E |
| CAN B |
Interior CAN |
24G |
| CAN B |
Interior CAN |
30D |
| CAN B |
Interior CAN |
44H |
| CAN B |
Interior CAN |
44L |
| CAN B |
Interior CAN |
42H |
| CAN D |
Diagnostic CAN |
23F |
| CAN E |
Chassis CAN |
23E |
| CAN E |
Chassis CAN |
17J |
| CAN E |
Chassis CAN |
12E |
| CAN E |
Chassis CAN |
7E |
| CAN F |
Central CAN |
26D |
| CAN H |
Vehicle dynamics CAN |
12J |
| Code 228 |
Stationary heater |
32C |
| Code 233 |
DISTRONIC PLUS |
7G |
| Code 233 |
DISTRONIC PLUS |
7J |
| Code 294 |
Kneebag |
1H |
| Code 359 |
TELEAID emergency call system |
18K |
| Code 494 |
USA version |
29F |
| Code 494 |
USA version |
21F |
| Code U18 |
Automatic child seat recognition (ACSR[AKSE]) |
14B |
| K88 |
Pyrotechnical separator |
18B |
| LIN B3 |
OBF LIN |
31B |
| N10/1 |
Front SAM control unit with fuse and relay module |
47A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
47E |
| N110 |
Weight Sensing System (WSS) control unit |
22H |
| N123/4 |
Emergency call system control unit |
20K |
| N2/13 |
WSS (Weight Sensing System) control unit |
31G |
| N2/7 |
Restraint systems control unit |
18E |
| N3/10 |
ME-SFI [ME] control unit |
10B |
| N3/10 |
ME-SFI [ME] control unit |
5B |
| N3/10 |
ME-SFI [ME] control unit |
7B |
| N3/9 |
CDI control unit |
2B |
| N32/1 |
Left front seat control unit |
39D |
| N32/2 |
Right front seat control unit |
39B |
| N47-5 |
ESP control unit |
14H |
| N62/1 |
Radar sensors control unit (SGR) |
9G |
| N62/2 |
Video and radar sensor system control unit |
9J |
| N69/1 |
Left front door control unit |
42B |
| N69/2 |
Right front door control unit |
42B |
| N69/2 |
Right front door control unit |
|
| N69/3 |
Rear left door control unit |
46J |
| N69/4 |
Right rear door control unit |
46J |
| N70 |
Overhead control panel control unit |
22B |
| N72/1 |
Upper control panel control unit |
28A |
| N73 |
EIS [EZS] control unit |
24K |
| N93 |
Central gateway control unit |
28E |
| R12/11 |
Left rear sidebag squib |
1F |
| R12/12 |
Right rear sidebag squib |
1F |
| R12/13 |
Driver airbag ignition squib 1 |
1F |
| R12/14 |
Driver airbag ignition squib 2 |
1G |
| R12/20 |
Left front sidebag squib |
1G |
| R12/21 |
Right front sidebag squib |
1G |
| R12/22 |
Left rear windowbag squib |
1G |
| R12/23 |
Right rear windowbag squib |
1H |
| R12/25 |
Driver kneebag squib |
1J |
| R12/4 |
Front passenger airbag squib 1 |
1E |
| R12/5 |
Front passenger airbag squib 2 |
1E |
| R12/6 |
Left rear ETR squib |
1E |
| R12/7 |
Right rear ETR squib |
1F |
| R46 |
Driver buckle ETR squib |
1J |
| R46/1 |
Front passenger buckle ETR squib |
1J |
| S6/2e1 |
Automatic child seat recognition airbag OFF indicator lamp |
33A |
| S68/1 |
Driver seat belt buckle and seat belt warning switch |
20A |
| S68/2 |
Front passenger seat belt buckle and seat belt warning switch |
20A |
| U1028 |
Valid for engine 157 |
9B |
| U12 |
Valid for left-hand drive vehicles |
37B |
| U13 |
Valid for right-hand drive vehicles |
37D |
| U152 |
Valid for engine 156 |
9A |
| U2 |
Valid for all except{{USA}} |
37A |
| U23 |
Valid for seat occupied recognition |
37A |
| U484 |
Valid for M273 ME |
6A |
| U779 |
Valid for engine 275 |
3A |
| U932 |
Valid for engine 642 BLUETEC |
1A |
| U968 |
Valid for mild hybrid drive |
18B |
| U968 |
Valid for mild hybrid drive |
9A |
