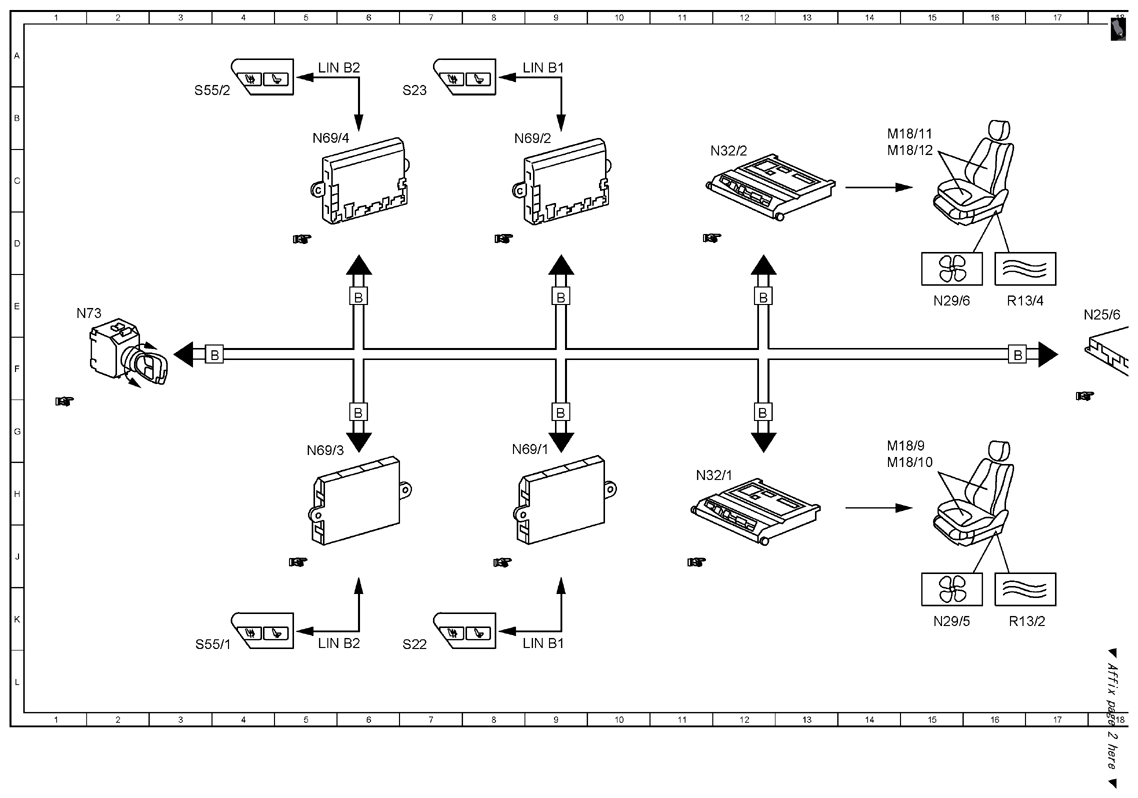

| A01 |
Explanation of CAN and LIN-Bus |
|
| LIN B1 |
Front door LIN |
|
| LIN B1 |
Front door LIN |
|
| LIN B2 |
Rear door LIN |
|
| LIN B2 |
Rear door LIN |
|
| M18/10 |
Left front seat backrest ventilation motor group |
14H |
| M18/11 |
Right front seat cushion ventilation motor group |
14B |
| M18/12 |
Right front seat backrest ventilation motor group |
14C |
| M18/5 |
Right rear seat backrest ventilation motor group |
22B |
| M18/6 |
Right rear seat cushion ventilation motor group |
22C |
| M18/7 |
Left rear seat backrest ventilation motor group |
22H |
| M18/8 |
Left rear seat cushion ventilation motor group |
22H |
| M18/9 |
Left front seat cushion ventilation motor group |
14G |

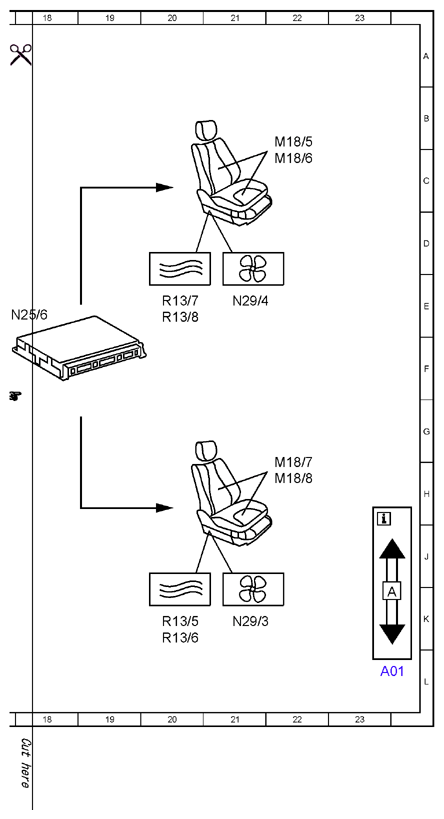

| N25/6 |
Rear seats control unit |
18E |
| N29/3 |
Left rear seat ventilation blower regulator |
21K |
| N29/4 |
Right rear seat ventilation blower regulator |
21E |
| N29/5 |
Left front seat ventilation blower regulator |
15K |
| N29/6 |
Right front seat ventilation blower regulator |
15E |
| N32/1 |
Left front seat control unit |
11H |
| N32/2 |
Right front seat control unit |
12C |
| N69/1 |
Left front door control unit |
8G |
| N69/2 |
Right front door control unit |
8B |
| N69/3 |
Rear left door control unit |
5G |
| N69/4 |
Right rear door control unit |
5B |
| N73 |
EIS [EZS] control unit |
1E |
| R13/2 |
Left front backrest heated cushion |
16K |
| R13/4 |
Right front backrest heated cushion |
16E |
| R13/5 |
Left rear seat heated cushion |
20K |
| R13/6 |
Left rear backrest heated cushion |
20K |
| R13/7 |
Right rear seat heated cushion |
20E |
| R13/8 |
Right rear backrest heated cushion |
20E |
| S22 |
Left front seat operation switch group |
7K |
| S23 |
Right front seat operation switch group |
7B |
| S55/1 |
Left rear seat operation switch group |
3K |
| S55/2 |
Right rear seat operation switch group |
3B |
