| 1 |
Circuit 15R/circuit 15, status ON |
7G |
| 1 |
Circuit 15R/circuit 15, status ON |
3C |
| 10 |
Massage function main valve, actuation |
7J |
| 11 |
Massage function motor, actuation |
6H |
| 12 |
Massage function motor limit switch, status |
7H |
| 13 |
Massage function pressure sensor, signal |
8H |
| 2 |
FDS submenu display, status |
18E |
| 3 |
Dynamic function ON/OFF, request |
11F |
| 3 |
Dynamic function ON/OFF, request |
15J |
| 3 |
Dynamic function ON/OFF, request |
17G |
| 4 |
Dynamic multicontour seat adjustment, request |
11F |
| 4 |
Dynamic multicontour seat adjustment, request |
15J |
| 4 |
Dynamic multicontour seat adjustment, request |
17H |
| 5 |
Adjust or store memory position, request |
10E |
| 5 |
Adjust or store memory position, request |
11B |
| 5 |
Adjust or store memory position, request |
17B |
| 6 |
Speed, turn rate and lateral acceleration, signal |
12F |
| 6 |
Speed, turn rate and lateral acceleration, signal |
14L |
| 7 |
Compressed air supply, request |
3B |
| 8 |
Dynamic multicontour seat pneumatic pump, status |
7F |
| 9 |
Massage function ON, request |
12F |
| 9 |
Massage function ON, request |
15H |
| 9 |
Massage function ON, request |
17H |

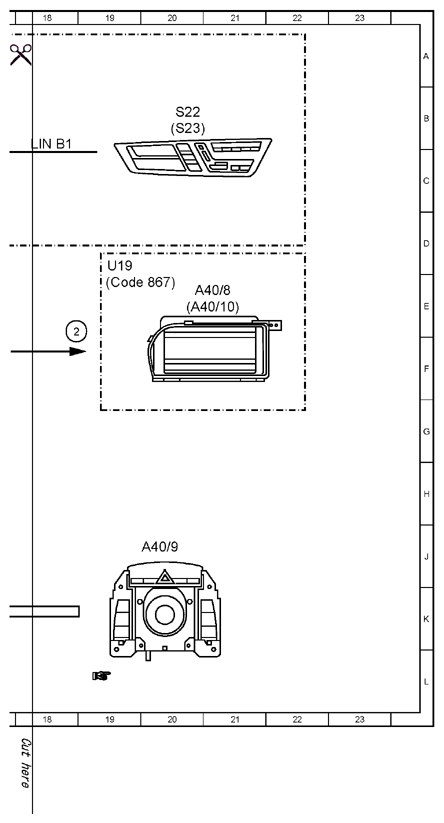

| A40/10 |
SPLITVIEW display |
20E |
| A40/3 |
COMAND control unit |
16E |
| A40/8 |
COMAND display |
21E |
| A40/9 |
Front central operating unit |
20J |
| A8/1 |
Transmitter key |
3F |
| CAN A |
Telematics CAN |
17J |
| CAN B |
Interior CAN |
12H |
| CAN B |
Interior CAN |
12C |
| CAN B |
Interior CAN |
5G |
| CAN B |
Interior CAN |
4D |
| CAN B |
Interior CAN |
2D |
| CAN B |
Interior CAN |
9D |
| CAN E |
Chassis CAN |
12K |
| CAN F |
Central CAN |
15H |
| Code 867 |
SPLITVIEW |
19E |
| LIN B1 |
Front door LIN |
18B |

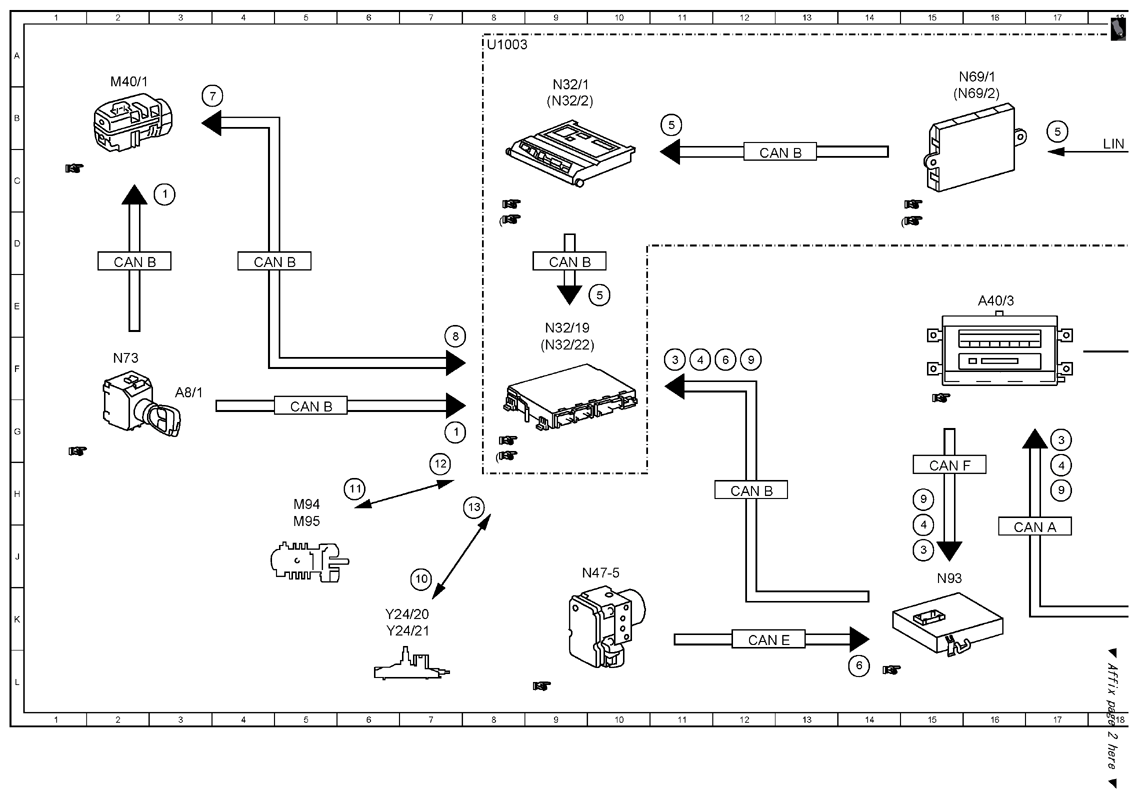

| M40/1 |
Pneumatic pump for dynamic seat control |
2A |
| M94 |
Left front seat massage function actuator motor |
5H |
| M95 |
Right front seat massage function actuator motor |
5J |
| N32/1 |
Left front seat control unit |
9B |
| N32/19 |
Left front dynamic seat control unit |
9E |
| N32/2 |
Right front seat control unit |
9B |
| N32/22 |
Right front dynamic seat control unit |
9F |
| N47-5 |
ESP control unit |
10J |
| N69/1 |
Left front door control unit |
16A |
| N69/2 |
Right front door control unit |
16B |
| N73 |
EIS [EZS] control unit |
2F |
| N93 |
Central gateway control unit |
15J |
| S22 |
Left front seat operation switch group |
20B |
| S23 |
Right front seat operation switch group |
20B |
| U1003 |
Valid for memory package, electrically adjustable front seats as of model year 2008 |
8A |
| U19 |
Valid for standard equipment |
19D |
| Y24/20 |
Dynamic driver seat massage function main valve |
6K |
| Y24/21 |
Dynamic front passenger seat massage function main valve |
6K |
