| A01 |
Explanation of CAN and LIN-Bus |
|
| A40/3 |
COMAND control unit |
7F |
| LIN B2 |
Rear door LIN |
|
| LIN B2 |
Rear door LIN |
|
| M40 |
Multicontour seat pneumatic pump |
24D |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28D |
| N25/6 |
Rear seats control unit |
24J |
| N32/20 |
Left rear multicontour backrest control unit |
13C |
| N32/21 |
Right rear multicontour backrest control unit |
13C |
| N69/3 |
Rear left door control unit |
16C |
| N69/4 |
Right rear door control unit |
16J |

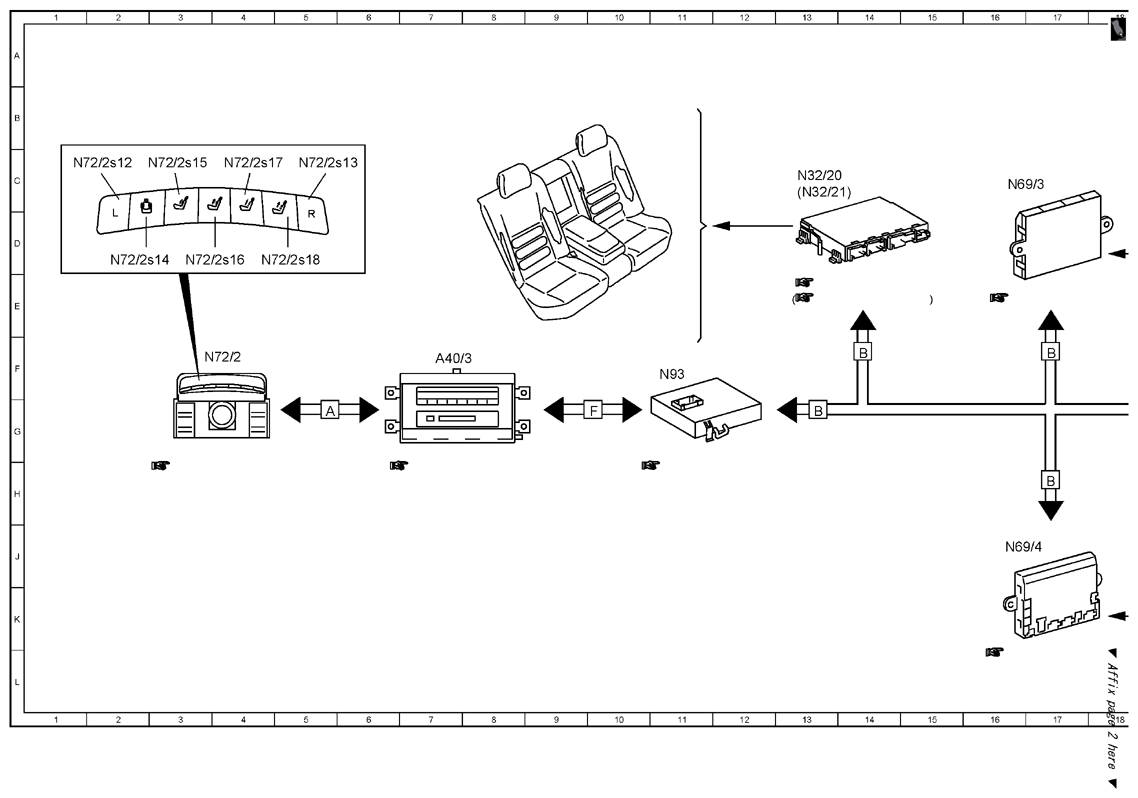

| N72/2 |
RCP [HBF] control unit |
4F |
| N72/2s12 |
Left seat selection button |
2C |
| N72/2s13 |
Right seat selection button |
5C |
| N72/2s14 |
Backrest side seat contour button |
2D |
| N72/2s15 |
Lumbar support seat contour button |
3C |
| N72/2s16 |
Lumbar support height adjustment button |
3D |
| N72/2s17 |
Gentle massage function button |
4C |
| N72/2s18 |
Firm massage function button |
5D |
| N93 |
Central gateway control unit |
11F |

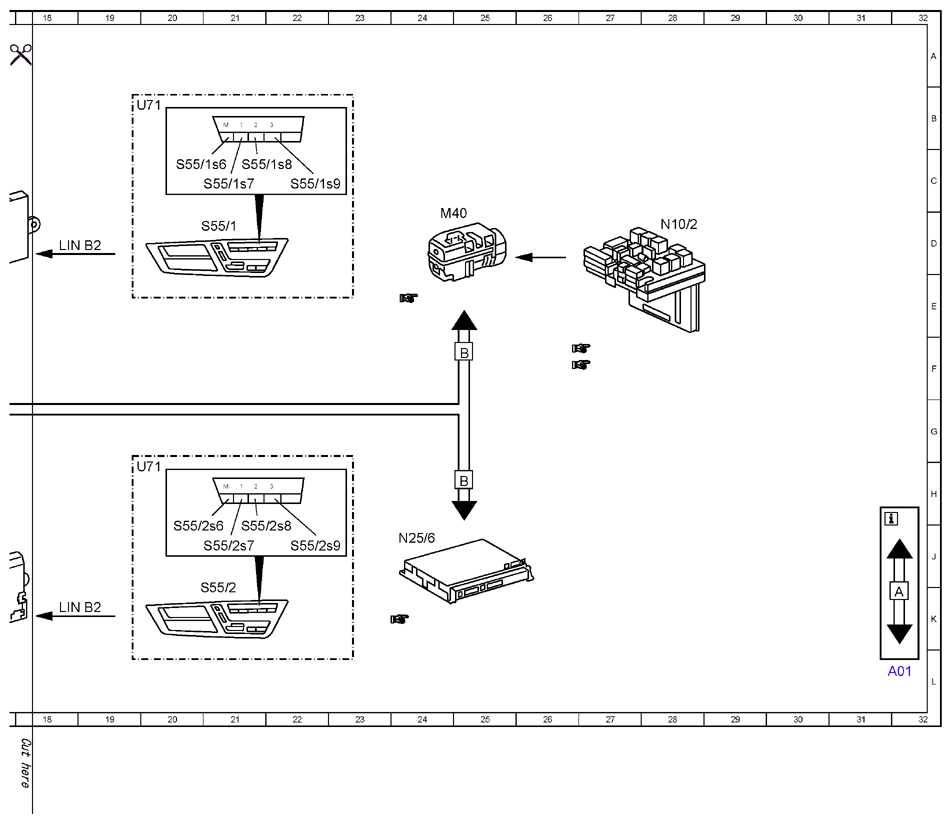

| S55/1 |
Left rear seat operation switch group |
21D |
| S55/1s6 |
Memory switch |
20C |
| S55/1s7 |
Memory 1 switch |
21C |
| S55/1s8 |
Memory 2 switch |
21C |
| S55/1s9 |
Memory 3 switch |
22C |
| S55/2 |
Right rear seat operation switch group |
21K |
| S55/2s6 |
Memory switch |
20J |
| S55/2s7 |
Memory 1 switch |
21J |
| S55/2s8 |
Memory 2 switch |
21J |
| S55/2s9 |
Memory 3 switch |
22J |
| U71 |
Valid for seat adjustment with memory |
19B |
| U71 |
Valid for seat adjustment with memory |
19H |
