| A1 |
Instrument cluster |
16J |
| B48/1 |
Driver-side frontal acceleration sensor |
24J |
| B48/10 |
Rear door pressure sensor, passenger-side |
26J |
| B48/11 |
Left front WSS (Weight Sensing System) sensor |
6L |
| B48/2 |
Passenger-side frontal acceleration sensor |
24J |
| B48/3 |
Belt tension sensor |
2H |
| B48/5 |
Airbag system driver assist |
24J |
| B48/6 |
Airbag system front passenger assist |
24J |
| B48/7 |
Driver door pressure sensor |
26J |
| B48/8 |
Front passenger door pressure sensor |
26J |
| B48/9 |
Rear door pressure sensor, driver-side |
26J |
| LIN B3 |
OBF LIN |
|
| N10/1 |

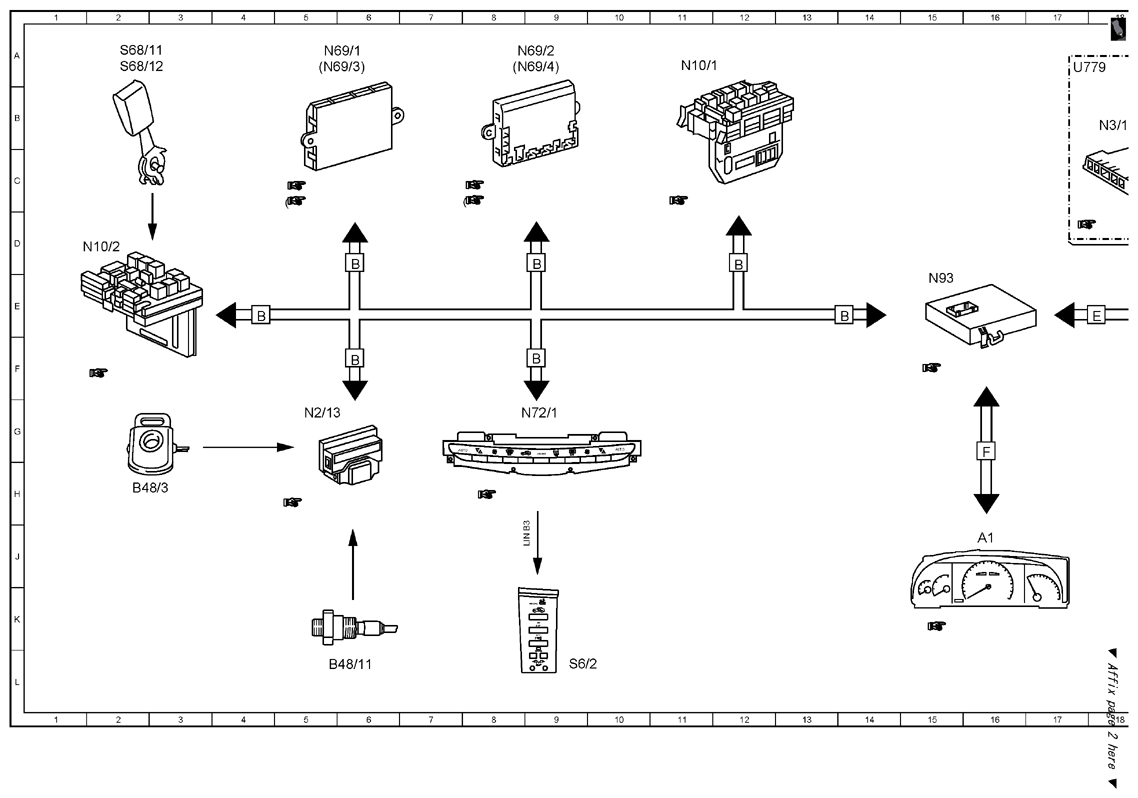

Front SAM control unit with fuse and relay module |
11A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
2D |
| N2/13 |
WSS (Weight Sensing System) control unit |
5G |
| N2/7 |

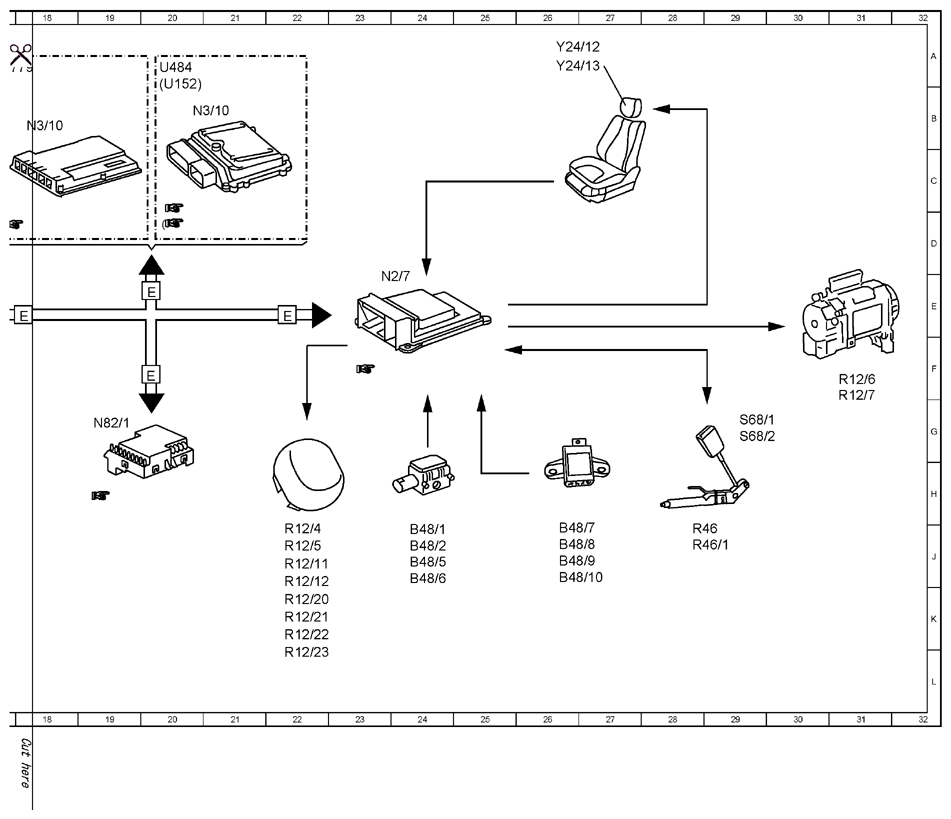

Restraint systems control unit |
23E |
| N3/10 |
ME-SFI [ME] control unit |
18B |
| N3/10 |
ME-SFI [ME] control unit |
20B |
| N69/1 |
Left front door control unit |
5A |
| N69/2 |
Right front door control unit |
9A |
| N69/3 |
Rear left door control unit |
5A |
| N69/4 |
Right rear door control unit |
8A |
| N72/1 |
Upper control panel control unit |
9G |
| N82/1 |
Vehicle power supply control unit |
19G |
| N93 |
Central gateway control unit |
15E |
| R12/11 |
Left rear sidebag squib |
22J |
| R12/12 |
Right rear sidebag squib |
22J |
| R12/20 |
Left front sidebag squib |
22K |
| R12/21 |
Right front sidebag squib |
22K |
| R12/22 |
Left rear windowbag squib |
22K |
| R12/23 |
Right rear windowbag squib |
22L |
| R12/4 |
Front passenger airbag squib 1 |
22J |
| R12/5 |
Front passenger airbag squib 2 |
22J |
| R12/6 |
Left rear ETR squib |
31F |
| R12/7 |
Right rear ETR squib |
31G |
| R46 |
Driver buckle ETR squib |
28J |
| R46/1 |
Front passenger buckle ETR squib |
28J |
| S6/2 |
Cockpit switch group |
9L |
| S68/1 |
Driver seat belt buckle and seat belt warning switch |
29G |
| S68/11 |
Left rear seat belt buckle switch |
2A |
| S68/12 |
Right rear seat belt buckle switch |
2A |
| S68/2 |
Front passenger seat belt buckle and seat belt warning switch |
29G |
| U152 |
Valid for engine 156 |
20B |
| U484 |
Valid for M273 ME |
20A |
| U779 |
Valid for engine 275 |
17A |
| Y24/12 |
Driver NECK-PRO head restraint solenoid |
26A |
| Y24/13 |
Front passenger NECK-PRO head restraint solenoid |
26A |
