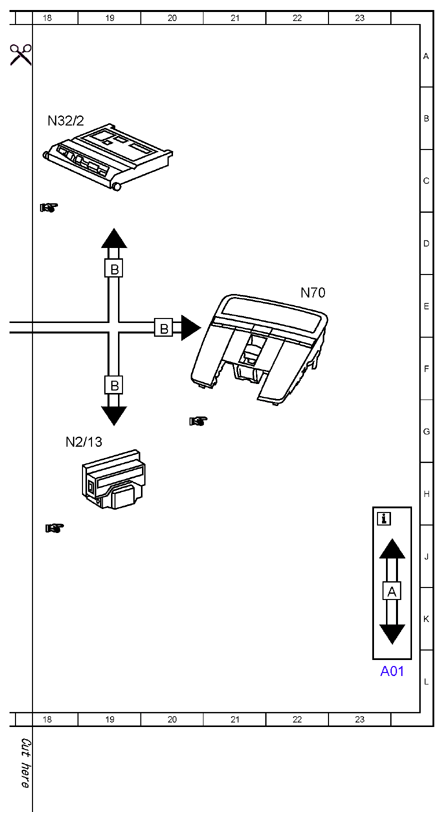

| A01 |
Explanation of CAN and LIN-Bus |
|
| A1 |
Instrument cluster |
6J |
| A7/3 |
Traction system hydraulic unit |
3G |
| A76 |
Left front reversible emergency tensioning retractor |
2D |
| A76/1 |
Right front reversible emergency tensioning retractor |
2E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
13B |
| N2/13 |
WSS (Weight Sensing System) control unit |
18G |
| N2/7 |
Restraint systems control unit |
3B |
| N25/6 |
Rear seats control unit |
15G |
| N32/19 |
Left front dynamic seat control unit |
15A |
| N32/2 |
Right front seat control unit |
18B |
| N32/20 |
Left rear multicontour backrest control unit |
15B |
| N32/21 |
Right rear multicontour backrest control unit |
15B |
| N32/22 |
Right front dynamic seat control unit |
15B |
| N69/1 |
Left front door control unit |
8G |
| N69/2 |
Right front door control unit |
12G |
| N69/3 |
Rear left door control unit |
8G |
| N69/4 |
Right rear door control unit |
12G |
| N70 |
Overhead control panel control unit |
22E |
| N93 |
Central gateway control unit |
6E |
| S68/1 |
Driver seat belt buckle and seat belt warning switch |
7D |
| S68/11 |
Left rear seat belt buckle switch |
9C |
| S68/12 |
Right rear seat belt buckle switch |
9C |
| S68/2 |
Front passenger seat belt buckle and seat belt warning switch |
7D |
