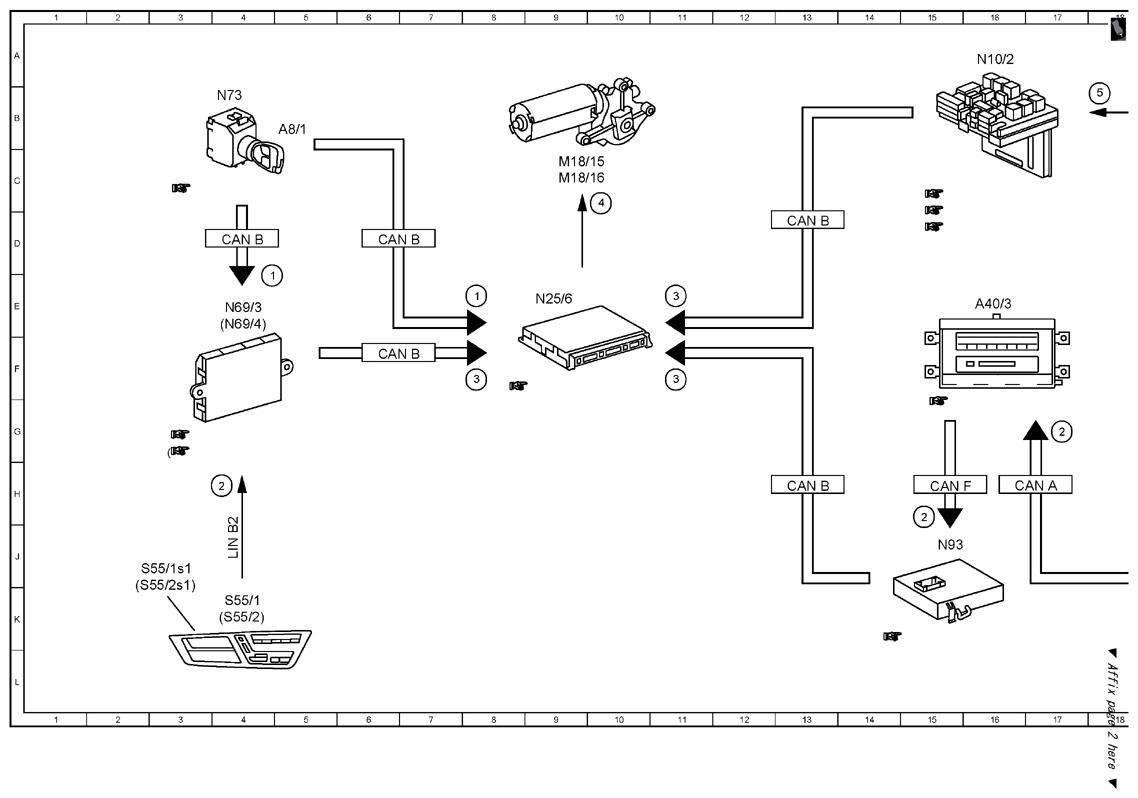

| 1 |
Circuit 15, status |
4E |
| 1 |
Circuit 15, status |
8E |
| 2 |
Rear head restraints button, status |
4H |
| 2 |
Rear head restraints button, status |
15H |
| 2 |
Rear head restraints button, status |
17G |
| 3 |
Retractable rear head restraints, request |
8F |
| 3 |
Retractable rear head restraints, request |
11F |
| 3 |
Retractable rear head restraints, request |
11E |
| 4 |
Retractable rear head restraints, actuation |
10C |
| 5 |
Rear seat belt buckle switch, status |
|
| A40/3 |
COMAND control unit |
16E |
| A40/9 |
Front central operating unit |
20H |
| A40/9s9 |
Head restraint folding button |
21H |
| A8/1 |
Transmitter key |
5B |
| CAN A |
Telematics CAN |
17H |
| CAN B |
Interior CAN |
4D |
| CAN B |
Interior CAN |
6F |
| CAN B |
Interior CAN |
13H |
| CAN B |
Interior CAN |
13D |
| CAN B |
Interior CAN |
6D |
| CAN F |
Central CAN |
15H |
| LIN B2 |
Rear door LIN |
4J |
| M18/15 |
Left rear head restraint inclination adjustment motor |
9C |
| M18/16 |
Right rear head restraint inclination adjustment motor |
9C |
| N10/2 |
Rear SAM control unit with fuse and relay module |
16A |
| N25/6 |
Rear seats control unit |
9E |
| N69/3 |
Rear left door control unit |
4E |
| N69/4 |
Right rear door control unit |
4E |
| N73 |
EIS [EZS] control unit |
4B |
| N93 |
Central gateway control unit |
15J |
| S55/1 |
Left rear seat operation switch group |
4K |
| S55/1s1 |
Head restraint adjustment switch |
3J |
| S55/2 |
Right rear seat operation switch group |
4K |
| S55/2s1 |
Head restraint adjustment switch |
3K |

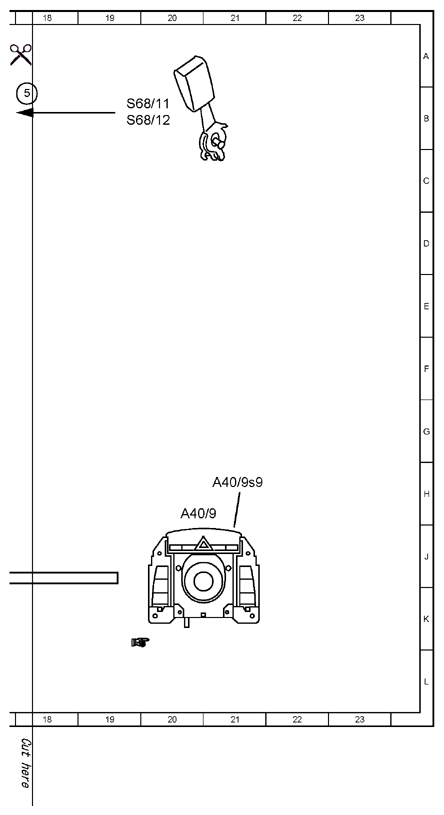

| S68/11 |
Left rear seat belt buckle switch |
19B |
| S68/12 |
Right rear seat belt buckle switch |
19B |
