Remove/install rear seat backrest - AR91.12-P-1620SXE

MODEL 221.176 with CODE (Z07) Top protection with CODE (Z19) S600 Pullman Guard state sedan Vis-a-vis seat

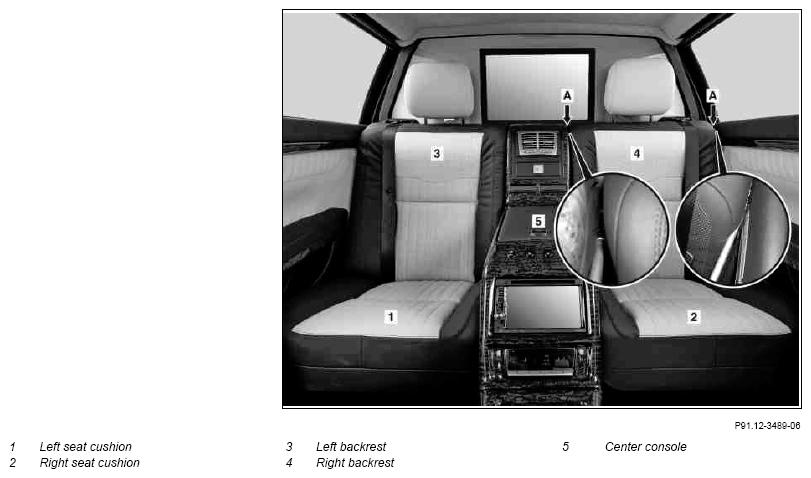

Fig 1: Identifying Rear Seat Backrest Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

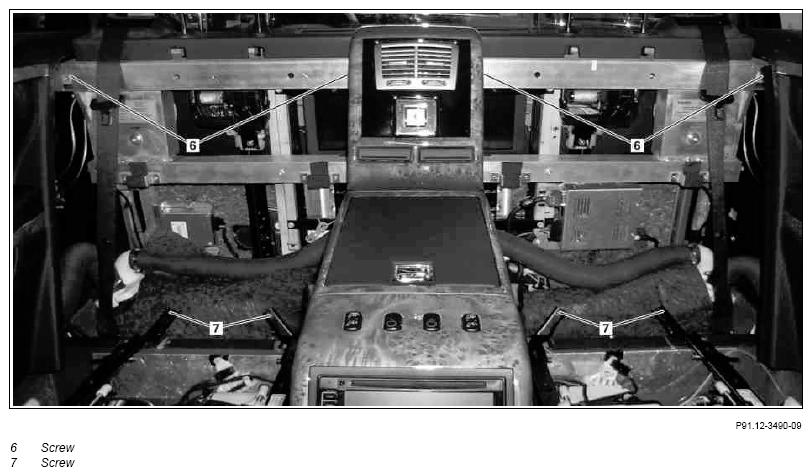

Fig 2: Identifying Rear Seat Backrest Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left and right seat cushion (1, 2) from vis-a-vis seat	The removal of the rear seat cushion is the same as for the rear seat and face-to-face seat	AR91.12-P-1020SXS
2	Remove screws/bolts (7) from left and right rear seat backrest (3, 4) at seat adjustment mechanism	To create access to the screws/bolts, detach the elastic bands of the seat-back lining at the seat adjustment mechanism.
			*BA91.12-P-1002-03H
3	Push side bolster of left and right rear seat backrest (3, 4) in upper area of side paneling or center console (5) to the side (arrow A) and carefully remove screws/bolts (6)	Protect working area. Danger of damaging the leather.
			*BA91.12-P-1003-03H
4	Disconnect electrical connector
5	Move out left and right rear seat backrest (3, 4) to the top and remove	When installing the rear seat backrest, ensure that the backrest frame is correctly seated at the partition wall.
6	Install in the reverse order
