Repair method for outside section of longitudinal member - AH63.30-P-1050-01N
WARNING: This page does not describe the selected car, but rather 198 other vehicles, including the 2020 Mercedes-Benz SLC300, 2019 Mercedes-Benz SLC300, 2019 Mercedes-Benz SL63 AMG, 2019 Mercedes-Benz SL550, and 2019 Mercedes-Benz SL450. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 215
The following must be observed in the case of damage at the hybrid joint on the outer side longitudinal member:
- Separating points are described in the repair descriptions for the A and B-pillar and must be made by following the reverse procedure.
Example: When replacing the A-pillar, use the separating cut for the B-pillar. When replacing the B-pillar, use the separating cut for the A-pillar.

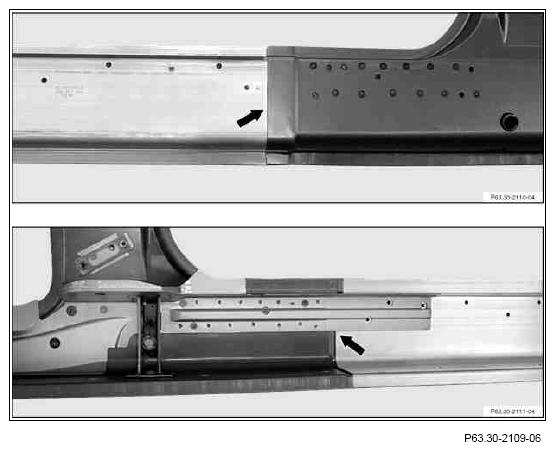

- The hybrid connection (arrows) of the new parts (A-pillar and outer side longitudinal member) must be joined together before installation.
The joining technology for the hybrid connection is given in the respective repair descriptions.
Notes on bonding and riveting as well as pretreatment of bonding surfaces.
