Component description for ME-SFI [ME] control unit - GF07.61-P-6000MMB
ENGINES 276.9 in MODEL 221.0/1

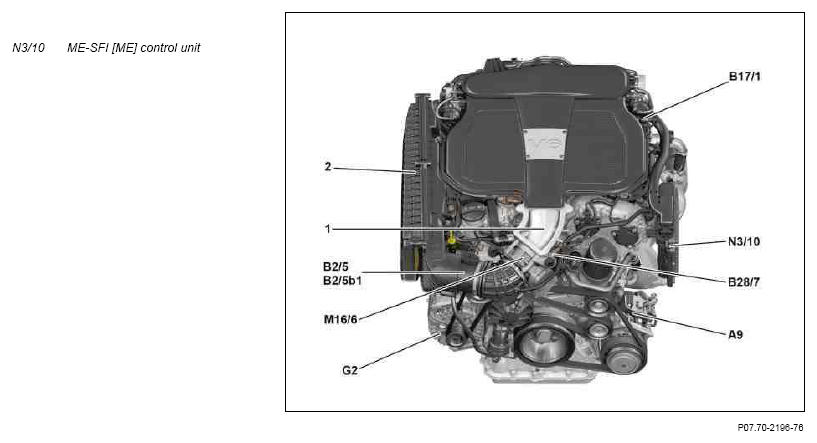

View of engine from front
Location
The ME-SFI [ME] control unit is located on the left on engine.
Task
The ME-SFI [ME] control unit creates in an electrical combination with the sensors and actuators of engine 276 DE (D irect-I njection) the engine timing.
The following systems and functions are controlled and coordinated by the ME-SFI [ME] control unit according to input signals:
- Ignition system
- Fuel supply
- Injection control
- Electronic accelerator
- Diagnosis and fault storage
- Engine start/stop function (for code (B03) ECO start/stop function)
- Drive authorization system and immobilizer
- Regulated camshaft adjustment
- Intake manifold switchover
- Heat management
- Torque interface
- Alternator interface
- AGR and exhaust treatment (with a NOx CAT) (for an engine with stratified operation)
Input and output signals
The following input signals are evaluated by the engine control and issued in the respective output signals:
- Direct input signals
- Direct output signals
- LIN signals
- CAN input signals
- CAN output signals
Direct input signals
- Circuit 15
- Circuit 30 (fused)
- Circuit 31
- Circuit 87M4
- Knock sensor 1, on the right (A16/1)
- Knock sensor 2, on the left (A16/2)
- Hot film MAF sensor (B2/5) (for an engine with stratified operation)
- Intake air temperature sensor (B2/5b1) (for an engine with stratified operation)
- Fuel pressure and temperature sensor (B4/25)
- LH intake camshaft Hall sensor (B6/4)
- Right intake camshaft Hall sensor (B6/5)
- Left exhaust camshaft Hall sensor (B6/6)
- RH exhaust camshaft Hall sensor (B6/7)
- Coolant temperature sensor (B11/4)
- Temperature sensor upstream of RH NOx storage catalytic converter (B16) (for an engine with stratified operation)
- Temperature sensor upstream of LH NOx storage catalytic converter (B16/1) (for an engine with stratified operation)
- Intake air temperature sensor (B17) (for an engine without stratified operation)
- Intake manifold intake air temperature sensor (B17/1)
- Pressure sensor downstream of throttle valve actuator (B28/7) (intake manifold air pressure)
- Accelerator pedal sensor (B37) - potentiometer 1
- Accelerator pedal sensor - potentiometer 2
- Crankshaft Hall sensor (B70)
- Left O2 sensor upstream of CAT (G3/3)
- Right O2 sensor upstream of CAT (G3/4)
- Left O2 sensor downstream of CAT (G3/5)
- Right O2 sensor downstream of CAT (G3/6)
- Throttle valve - actual value potentiometer 1 (M16/6r1)
- Throttle valve - actual value potentiometer 2 (M16/6r2)
- AGR - RH Hall sensor (M16/45b1) (for an engine with stratified operation)
- AGR - LH Hall sensor (M16/45b2) (for an engine with stratified operation)
- Circuit 15 (2)/spare 1 relay (changeover contact) (N10/1kD)
- Crash signal from the restraint system control unit (N2/7)
- Oil level check switch (S43)
Direct output signals
- Sensor voltages 1 and 2 (5 V) - engine plug
- Sensor voltages 1 and 2 (5 V) - vehicle plug
- Sensor grounds 1 and 2 - engine plug
- Sensor ground 1 - vehicle plug
- Accelerator pedal sensor - reference ground of potentiometers 1 and 2
- LH O2 sensor, upstream of CAT - oxygen sensor heater
- RH O2 sensor, upstream of CAT - oxygen sensor heater
- LH O2 sensor, downstream of CAT - oxygen sensor heater
- RH O2 sensor, downstream of CAT - oxygen sensor heater
- Engine and air conditioning electric suction fan with integrated control (M4/7) - specified speed of the fan
- Throttle valve - actuator motor (M16/6m1) (Plus)
- Throttle valve - actuator motor (M16/6m1) (Minus)
- Right exhaust gas recirculation actuator motor (M16/45m1) (on engine with stratified operation)
- Left exhaust gas recirculation actuator motor (M16/45m2) (on engine with stratified operation)
- Circuit 50 relay, starter (N10/1kH)
- Circuit 87 relay, engine (N10/1kC)
- Fuel pump control unit (N118) - "fuel pump ON" ground signal
- Two-disk thermostat heating element (R48)
- Cylinder 1 ignition coil (T1/1)
- Cylinder 2 ignition coil (T1/2)
- Cylinder 3 ignition coil (T1/3)
- Cylinder 4 ignition coil (T1/4)
- Cylinder 5 ignition coil (T1/5)
- Cylinder 6 ignition coil (T1/6)
- Heating system shutoff valve (Y16/2) up to 05/2011
- Left intake camshaft solenoid (Y49/4)
- Right intake camshaft solenoid (Y49/5)
- Left exhaust camshaft solenoid (Y49/6)
- Right exhaust camshaft solenoid (Y49/7)
- Purge control valve (Y58/1)
- Cylinder 1 fuel injector (Y76y1)
- Cylinder 2 fuel injector (Y76y2)
- Cylinder 3 fuel injector (Y76y3)
- Cylinder 4 fuel injector (Y76y4)
- Cylinder 5 fuel injector (Y76y5)
- Cylinder 6 fuel injector (Y76y6)
- Intake manifold resonance flap switchover valve (Y77/2)
- Intake manifold selector drum switchover valve (Y77/3)
- Quantity control valve (Y94)
- LH switchable engine mount (Y123) (for 4MATIC)
- RH switchable engine mount (Y123/1) (for 4MATIC)
- Engine oil pump valve (Y130)
LIN signals
- Alternator interface via drive LIN (LIN C1)
- Cooler sensor for engine diagnosis (B11/15) via the drivetrain LIN (for an engine with stratified operation, for code (494) USA version and code (917) Partial zero emission vehicle-emission USA)
CAN input signals
Instrument cluster (A1)
- Fuel reserve signal
Restraint systems control unit (N2/7)
- Crash signal
- Driver seat belt applied
Rear SAM control unit with fuse and relay module (N10/2)
- Engine hood closed (for code (551) Antitheft alarm system (EDW)
AAC control unit (N22/1)
- Specified fan speed request
- Air conditioning status
- Engine torque request
- Engine start request
- Engine stop prohibition
ESP control unit (N47-5)
- Vehicle speed
- Wheel speed signal
- Brake recognition
- Cruise control request
- Engine torque request (increase)
- Engine torque request (reduction)
- Engine start request
- Engine stop prohibition
- Engine stop release
LH and RH NOx sensor control units (N37/5, N37/6) (for an engine with stratified operation)
- NOx concentration in the exhaust
- O2 concentration in the exhaust
- Diagnostic data
AIRMATIC with ADS control unit (N51) (for code (489) AIRMATIC (air suspension with continuous adjustment damping)
- Engine start request
- Engine stop prohibition
Video and radar sensor system control unit (N62/2) (for code (233) DISTRONIC PLUS, code (237) Active Blind Spot Assist and code (238) Active Lane Keeping Assist)
- Engine torque request (increase)
- Engine torque request (reduction)
Left front door control unit (N69/1)
- Driver door closed
Upper control panel control unit (N72/1)
- ECO start/stop function status button
EIS [EZS] control unit (N73)
- Start enable (drive authorization system)
Steering column tube module (N80)
- Steering wheel angle
- Steering wheel angular velocity
Fuel system control unit (N118)
- Fuel pressure
- Self-diagnosis data
- Requested diagnostic data
Electric controller unit (VGS) (Y3/8)
- Drive position
- Transmission mode
- Actual gear, target gear
- Engine torque request (reduction)
- Starter enable in selector lever position "P, N"
- Engine idle specified speed (for actuation of the torque converter lockup clutch)
- Status of torque converter lockup clutch
- Emergency transmission limp-home mode
- Transmission oil temperature
CAN output signals
Instrument cluster
- Engine oil level too low
- Circuit 61 signal (generated by ME-SFI [ME] control unit)
- Fuel consumption (the trip computer is informed about the current fuel consumption by means of square-wave pulse packages (1 pulse = 0.2 l/h))
LH and RH NOx sensor control units (for an engine with stratified operation)
- Diagnosis request
Fuel pump control unit
- Fuel pump ON
- Specified fuel pressure
- Diagnosis request
EIS control unit
- Start enable request (drive authorization system)
Electric controller unit (VGS)
- Requests for catalytic converter heating
- Switching request
- Engine torque
- Engine coolant temperature
- Engine oil temperature
- Engine speed
- Engine load
- Kickdown
- Engine speed limitation active
- Limp-home mode engine control
Design
The housing of the ME-SFI [ME] control unit is made out of diecast aluminum and the cover is made out of corrosion-proof sheet steel. The ME-SFI [ME] control unit is protected against water and dusts. The housing contains the 32-bit measuring and control electronics for the engine control.
Power supply
The ME-SFI [ME] control unit is "circuit 30 fused" and also supplied with a voltage for ignition ON by "circuit 87 M4".
In the operating voltage range it has both short-circuit protection and reversed polarity protection.
Voltage is supplied through several pins connected in parallel to relieve the electrical connectors.
Ground connection
The "circuit 31" ground connection occurs over several ground lines from the electronic ground (LH footwell) (W34/1).
Computer run-on
If the ME-SFI [ME] control unit receives the signal "circuit 15 OFF", a processor run-on of approx. 4 seconds is started.
However, it may also last for several minutes due to various functions (for example, on-board diagnosis (OBD), drive authorization system (DAS), thermal management).
Assembly operations
Ensure before unplugging the plug on the ME-SFI [ME] control unit that the ignition is switched off and computer run-on has ended. This is to prevent damage to the ME-SFI [ME] control unit and save errors in the control units linked to the CAN.
Variants
The engine control variants, such as country and exhaust gas variants, are activated with the Diagnosis Assistance System (DAS) using the variant coding function.
Replacement of the ME-SFI [ME] control unit is not necessary.
| Designation | Unit | Values | Tolerance range | Remarks | |
|---|---|---|---|---|---|
| ME-SFI [ME] control unit (/)N3/10 | |||||
| Power supply | V | 12.0 | |||
| Voltage limit: | minimum | V | 8.0 | ||
| maximum | V | 19.0 | |||
| Power consumption: | Quiescent current | μA | 1000 | Maximum | |
| μA | 700 | Typical | |||
| Reverse polarity protection | Yes | ||||
| Additional specific parameters | No | ||||
| Flash capability/coding capability | Yes/yes | ||||
| Special features | No | ||||
| Knock sensor 1, on the right (A16/1) Knock sensor 2, on the left (A16/2) |
|||||
| Model | Capacitive sensor (piezo crystal) | ||||
| Capacity | PF | 1050 | ±23.8% | ||
| Sensitivity | mV/g | 26 | ±30.8% | ||
| Resistor | MΩ | >10 | |||
| Linearity | kHz | 3 - 20 | |||
| Working temperature | °C | -40 - +150 | |||
| Hot film MAF sensor (B2/5) (for an engine with stratified operation) | |||||
| Model | Hot film sensor | ||||
| Operating voltage | V | 7.5 - 14 | |||
| Pull up resistance | kΩ | 1.2 | For 5 V | ||
| Frequency for: | 0 kg/hour | Hz | < 1950 | ||
| 75 kg/hour | Hz | 2736 | |||
| 160 kg/hour | Hz | 3387 | |||
| 310 kg/hour | Hz | 4484 | |||
| 640 kg/hour | Hz | 7832 | |||
| Accuracy | % | ±2 | For 15 - 640 kg and 20°C | ||
| Cycle duration | ms | 52.4288 | |||
| Duty cycle | % | 10 | Low | ||
| Intake air temperature sensor (B2/5b1) (for an engine with stratified operation) | |||||
| Model | NTC resistor N egative T emperature C oefficient (NTC thermistor) |
||||
| Pull up resistance | kΩ | 2.15 | For 5 V | ||
| Resistance at: | -40°C | kΩ | 39.65 | ||
| 0°C | kΩ | 5.489 | |||
| 40°C | kΩ | 1.166 | |||
| 100°C | kΩ | 0.1973 | |||
| 130°C | kΩ | 0.0971 | |||
| Fuel pressure and temperature sensor (B4/25) | |||||
| Model | Combined pressure and temperature sensor | ||||
| Supply voltage | V | 5.0 | ±5% | ||
| Power consumption | mA | 15 | Maximum | ||
| Operating pressure | MPA | 28 | Maximum | ||
| Bursting pressure | MPA | 250 | |||
| Pressure measuring range | MPA | 0 - 30 | |||
| Temperature measurement range | °C | -40 - +140 | |||
| Ambient temperature | °C | -40 - +130 | |||
| Series resistor | kΩ | 3 | |||
| Resistor | kΩ | 30 | at 25 °C | ||
| Special features | 4-pin connector | ||||
| Left intake camshaft Hall sensor (B6/4) Right intake camshaft Hall sensor (B6/5) Left exhaust camshaft Hall sensor (B6/6) RH exhaust camshaft Hall sensor (B6/7) |
|||||
| Model | Hall sensor | ||||
| Supply voltage: | Circuit 87 M1 | V | 4.7 - 18 | B6/5, B6/7 | |
| circuit 87 M3 | V | 4.7 - 18 | B6/4, B6/6 | ||
| Maximum power consumption | mA | 10 | |||
| Output voltage | V | 0 - 18 | |||
| Output current | mA | 0 - 20 | |||
| Coolant temperature sensor (B11/4) | |||||
| Model | NTC resistor | ||||
| Supply voltage | V | 5.0 | ±5% | ||
| Series resistor | Ω | 1470 | ±1% | ||
| Resistance at: | 20°C | Ω | 3117 | ||
| 40°C | Ω | 1332 | |||
| 60°C | Ω | 628 | |||
| 80°C | Ω | 320 | |||
| 100°C | Ω | 175 | |||
| 120°C | Ω | 101 | |||
| Special features | Arbitrary polarity | ||||
| Cooler sensor for engine diagnosis (B11/15) (for an engine without stratified operation, for code (494) USA version and code (917) Partial zero emission vehicle-emission USA) | |||||
| Model | |||||
| Supply voltage | V | 12 | Circuit 87 | ||
| Interface transfer rate: | Maximum | kbit/s | 20 | Communication with the ME-SFI [ME] control unit via the drivetrain LIN | |
| Special features | 3-pin connector | ||||
| Temperature sensor upstream of RH NOx storage catalytic converter (B16) (for an engine with stratified operation), temperature sensor upstream of LH NOx storage catalytic converter (B16/1) (for an engine with stratified operation) | |||||
| Model | Positive temperature coefficient resistance P ositive T emperature C oefficient (PTC thermistor) | ||||
| Supply voltage | V | 5.0 | ±0.1% | ||
| Series resistor | kΩ | 1 | ±0.1% | ||
| Operating current | mA | 2.7 | Minimum | ||
| mA | 4.2 | Maximum | |||
| Resistance at: | 100°C | Ω | 276 | ||
| 600°C | Ω | 617 | |||
| 700°C | Ω | 679 | |||
| 1000°C | Ω | 849 | |||
| Operating temperature (exhaust temperature) | °C | -40 - +850 | |||
| Special features | Arbitrary polarity | ||||
| Intake air temperature sensor (B17) (except for an engine with stratified operation) Intake manifold intake air temperature sensor (B17/1) |
|||||
| Model | NTC resistor | ||||
| Supply voltage | V | 5.0 | ±5% | ||
| Series resistor | kΩ | 3.16 | ±1% | ||
| Resistance: | -20°C | Ω | 97120 | ||
| 0°C | Ω | 32660 | |||
| 20°C | Ω | 12490 | |||
| 40°C | Ω | 5325 | |||
| 60°C | Ω | 2490 | |||
| Special features | 2-pin connector | ||||
| Pressure sensor downstream of throttle valve actuator (B28/7) | |||||
| Model | Pressure sensor | ||||
| Supply voltage | V | 5.0 | ±0.25 V | ||
| Output voltage | V | 0.3 - 4.7 | For a 5 V supply voltage | ||
| Power consumption | mA | 10 | Maximum | ||
| Output current | mA | ±1 | |||
| Measuring range | kPa | 10 - 250 | Absolute pressure | ||
| Signal plausibility | V | 0.10 - 4.94 | |||
| Working temperature | °C | -40 - +135 | |||
| Accelerator pedal sensor (B37) | |||||
| Model | 2 Hall sensors | ||||
| Supply voltage | V | 5.0 | ±0.5 V | ||
| Power consumption | mA | 8.5 | ±2.5 mA | ||
| Signal current | μA | ≤50 | |||
| Linearity | % | ±1 | Both sensors | ||
| Temperature range | °C | -40 - +80 | |||
| Special features | Direct contacting over a 6-pin connector | ||||
| Crankshaft Hall sensor (B70) | |||||
| Model | Hall sensor | ||||
| Supply voltage | V | 5.0 | ±0.25 V | ||
| Power consumption | mA | 12 | Maximum of 15 mA | ||
| Output voltage | VV | 0 - 5.25 | |||
| Output current | mA | ≤0.25 | |||
| Distance to increment wheel | mm | 0.8 | ±0.5 mm | ||
| Special features | Depending in the direction of rotation | ||||
| Alternator (G2) | |||||
| Model | AC alternator with integral rectification | ||||
| Interface transfer rate: | Maximum | kbit/s | 20 | Communication with the ME-SFI [ME] control unit via the drivetrain LIN | |
| Special features | Self-diagnosis | ||||
| Left O2 sensor upstream of CAT (G3/3) Right O2 sensor upstream of CAT (G3/4) |
|||||
| Model | Wideband oxygen sensor (LSU 4.9) | ||||
| Supply voltage | V | 12 | Circuit 87 M2 | ||
| Voltage limit: | minimum | V | 10.8 | ||
| maximum | V | 16.5 | |||
| Medium heating current | mA | 400 | During idling | ||
| Internal resistance of the Nernst cell | Ω | 300 | |||
| Power consumption of the Nernst cell | μA | <250 | |||
| Nernst voltage | mV | 450 | |||
| Maximum exhaust temperature | °C | ≤930 | |||
| Frequency | Hz | 100 | |||
| Special features | Potential-free insulated sensor with 6-way connector | ||||
| Left O2 sensor downstream of CAT (G3/5) Right O2 sensor downstream of CAT (G3/6) |
|||||
| Model | Voltage-leap oxygen sensor (LSF 4.2) | ||||
| Supply voltage | V | 12 | Circuit 87 M2 | ||
| Sensor voltage | V | approx. 1 | Direction rich mixture | ||
| V | approx. 0 | Direction lean mixture | |||
| Frequency | Hz | 10 | |||
| Special features | Potential-free insulated sensor with 4-way connector | ||||
| Engine and AC electric suction fan with integrated control (M4/7) | |||||
| Model | Electric suction fan | ||||
| Supply voltage | V | 12 | Circuit 87 M2 and circuit 30 | ||
| Operating voltage | V | 6 - 18 | |||
| Specified speed of the fan | over a pulse width modulated signal (PWM signal) from the ME-SFI [ME] control unit | ||||
| Frequency | Hz | 10 | PWM signal | ||
| Duty cycle | % | 0 - 100 | PWM signal | ||
| Quiescent current | mA | 0.3 | |||
| Average operating current | A | 50 | ±2 A | ||
| AGR actuator motors (M16/45) (for an engine with stratified operation) | |||||
| Model | Actuator motor | ||||
| Supply voltage of the actuator motor | V | 12.0 | |||
| Actuator motor power consumption | A | < 1.4 | Operation | ||
| A | 4.0 | Maximum | |||
| Actuator motor resistance | Ω | 2.6 | ±0.3 Ω | ||
| Actuator motor inductivity | mH | 14.5 | ±3.0 mH | ||
| PWM signal (actuation) for the actuator motor | Hz | 1000 | |||
| Supply voltage for the Hall sensor | V | 5.0 | ±0.1 V | ||
| Maximum power consumption of the Hall sensor | mA | 6.5 | |||
| Special features | Polarity of the actuator motor reversible | ||||
| Throttle valve actuator (M16/6) | |||||
| Model | Actuator motor with a contact-less angular sensor | ||||
| Supply voltage of the actuator motor | V | 12.0 | |||
| Actuator motor power consumption | A | 1.5 - 9.5 | |||
| Supply voltage for potentiometer 1 and 2 | V | 5.0 | |||
| Potentiometer 1 | V | 0.5 | ±5.6% | Lower mechanical end stop | |
| Upper mechanical end stop | |||||
| V | 4.65 | ±5.0% | |||
| Potentiometer 2 | V | 4.5 | ±5.6% | Lower mechanical end stop | |
| Upper mechanical end stop | |||||
| V | 0.35 | ±5.0% | |||
| Diameter of the throttle valve | mm | 74 | |||
| Working temperature | °C | -40 - +120 | |||
| Two-disk thermostat heating element (R48) | |||||
| Model | Heating element | ||||
| Supply voltage | V | 12 | Circuit 87 M2 | ||
| Frequency | Hz | 141 | |||
| Resistor | Ω | 15.3 | ±1.5 Ω | at 20°C | |
| Oil level indicator switch (S43) | |||||
| Model | Reed contact (normally closed contact) | ||||
| Supply voltage | V | 5 | ±5% | ||
| Power consumption | mA | 1 | Minimum | ||
| Power consumption | mA | 400 | Maximum (induction free) | ||
| Resistor | Ω | ∞ | Minimum oil level not reached | ||
| Ω | 0 | Oil level OK | |||
| Shift point | mm | 19.2 | ±1 mm | ||
| Special features | 2-pin connector, Pin 1 blank | ||||
| Cylinder 1 - 6 ignition coils (T1/1 - T1/6) | |||||
| Supply voltage: | Circuit 87 M1 | V | 12 | T1/1, T1/2, T1/3 | |
| circuit 87 M3 | V | 12 | T1/4, T1/5, T1/6 | ||
| Operating voltage | V | 6 - 19 | |||
| Primary charging current | A | 21 | |||
| Resistance: | primary | Ω | 0.072 | ||
| secondary | kΩ | 1.59 | |||
| Inductivity: | primary | μH | 90 | ||
| secondary | H | 2.78 | |||
| Special features | Diagnosis feedback over the current interface | ||||
| Heating system shutoff valve (Y16/2) up to 05/2011 | |||||
| Model | Solenoid valve | ||||
| Supply voltage | V | 12 | Circuit 87 M2 | ||
| Rated voltage | V | 13.5 | |||
| Operating voltage | V | 8 - 16 | |||
| Power consumption | A | 1.6 | Maximum | ||
| Ambient temperature | °C | -40 - +140 | |||
| Temperature range for the coolant | °C | -40 - +125 | |||
| Switching condition: | Valve open | Pin 3 no ground | |||
| Valve closed | Pin 3 on ground | ||||
| Left intake camshaft solenoid (Y49/4) Right intake camshaft solenoid (Y49/5) Left exhaust camshaft solenoid (Y49/6) Right exhaust camshaft solenoid (Y49/7) |
|||||
| Model | Magnet | ||||
| Supply voltage: | Circuit 87 M1 | V | 12 | Y49/5, Y49/7 | |
| circuit 87 M3 | V | 12 | Y49/4, Y49/6 | ||
| Operating voltage | V | 8 - 16 | |||
| Maximum power consumption | A | < 3.0 | |||
| Coil resistance | Ω | 7.5 | ±6.5% | ||
| Inductance | mH | 23 | |||
| Frequency | Hz | 150 | PWM signal | ||
| Working temperature | °C | -40 - +130 | |||
| Start position of the intake camshaft | 36° after top dead center (T op D ead center) | ||||
| Start position of the exhaust camshaft | 20° before top dead center | ||||
| Adjustment range of the intake camshaft | 4° BTDC up to 36° ATDC | ||||
| Adjustment range of the exhaust camshaft | 20° BTDC up to 20° after top dead center | ||||
| Purge control valve (Y58/1) | |||||
| Model | Solenoid valve | ||||
| Supply voltage | V | 12 | Circuit 87 M2 | ||
| Operating voltage | V | 9 - 16 | |||
| Power consumption | mA | 0 - 500 | at 20°C | ||
| Actuation | % | 0 - 100 | PWM signal | ||
| Frequency | Hz | 200 | PWM signal | ||
| Coil resistance | Ω | 25.5 | ±1.5 Ω | at 20°C | |
| Injection nozzle for 1st to 6th cylinder (Y76y1 - Y76y6) | |||||
| Type | Piezo injectors | ||||
| Voltages | V | 125 | Rated voltage (for 20°C) | ||
| V | 160 | Maximum voltage | |||
| Current impulse: | Open | A | 8 | ||
| Close | A | -8 | |||
| Actuation times: | Open | μs | 180 | ||
| Close | μs | 200 | |||
| Loads | mC | 0.21 | Minimum loading | ||
| mC | 0.69 | Nominal loading | |||
| Needle lift | μm | 34 | |||
| Flow | mg/ms | 34.5 | For 200 bar and 0.69 mC | ||
| Resistor | kΩ | 220 | ±10 KΩ | ||
| Fuel pressure on injector | bar | approx. 200 | |||
| Special features | 2-pin connector, Pin 1 (+), Pin 2 (-) | ||||
| Quantity control valve (Y94) | |||||
| Model | Shift valve | ||||
| Operating voltage | V | 6 - 16 | |||
| Power consumption | A | approx. 14 | Maximum at 20°C | ||
| Effective current | A | < 5 | Maximum at 20°C | ||
| Coil resistance | Ω | 0.49 | ±5% | at 20°C | |
| Frequency | kHz | 4 | PWM signal | ||
| Actuation | % | 0 - 90 | PWM signal | ||
| Power loss (components) | W | 12 | Maximum | ||
| Ambient temperature | °C | -40 - +120 | |||
| Special features | Valve safe position (de-energized open) | ||||
| LH switchable engine mount (Y123) (for 4MATIC) RH switchable engine mount (Y123/1) (for 4MATIC) |
|||||
| Operating voltage | V | 9 - 15 | |||
| Induction voltage | V | < 130 | |||
| Minimum pulling voltage | V | < 9.0 | |||
| Minimum failure voltage | VV | >1.0 | |||
| Operating temperature | °C | -40 - +120 | |||
| Bearing limit temperature | °C | -40 - +130 | |||
| Coil resistance | Ω | 31.0 | ±10% | at 20°C | |
| Total resistance | Ω | 27.2 | ±10% | at 20°C | |
| Power consumption | A | < 0.5 | For 12 V | ||
| Switching speed | Hz | 2 - 30 | |||
| Engine oil pump valve (Y130) | |||||
| Model | Solenoid valve | ||||
| Supply voltage | V | 12 | Circuit 87 M2 | ||
| Frequency | Hz | 200 | PWM signal | ||
| Wiring diagram for gasoline direct injection system control unit | N3/10 | Vehicle plug | PE07.08-P-2101-97SAA | |
| N3/10 | Engine plug, sheet 1 | PE07.08-P-2101-97SAB | ||
| N3/10 | Engine plug, sheet 2 | PE07.08-P-2101-97SAE |
