Remove/install longitudinal member paneling - AR88.80-P-6000SXS

MODEL 221.1 with CODE (Z07) Top protection

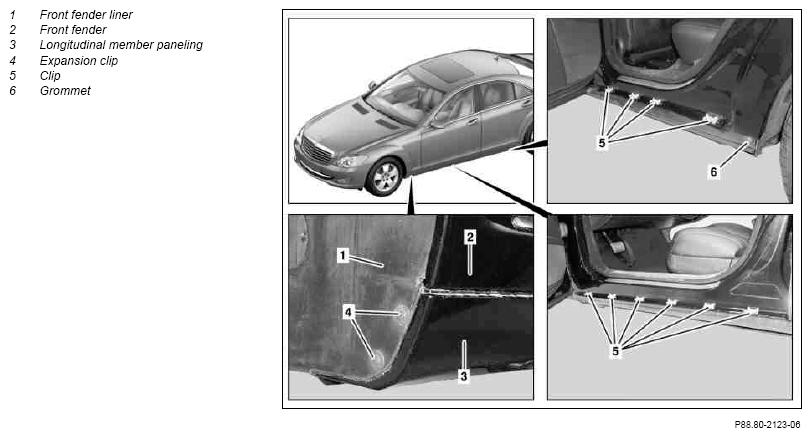

Fig 1: Identifying Longitudinal Member Paneling Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

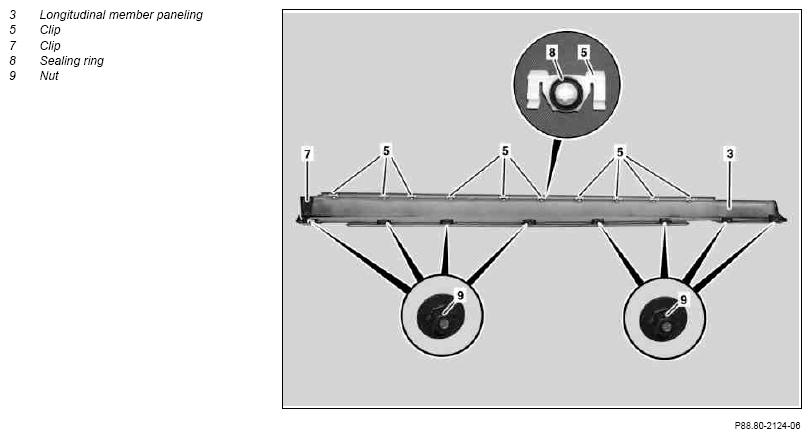

Fig 2: Identifying Longitudinal Member Paneling Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left and right rear door.		AR72.12-P-0600SXS
2	Remove underfloor protection plates in area of longitudinal member paneling (3).		AR61.40-P-1000SXS
3	Unscrew nuts (9) and loosen longitudinal member paneling (3) at bottom of longitudinal member.
4	Remove expansion clip (4) from front fender liner (1)
5	Unclip longitudinal member paneling (3), starting at front fender (2)	Ensure that longitudinal member paneling (3) is properly seated at all attachment points on longitudinal member to prevent paint damage. Insert clip (7) into grommet (6).
			Figure
6	Remove clips (5) on longitudinal member and attach to longitudinal member paneling (3)	Ensure that sealing rings (8) are seated correctly.
7	Install in the reverse order

Fig 3: Identifying Assembly Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
