| A0 |
Color code key |
23L |
| CAN B |
Interior CAN |
6K |
| F1/7 |
Left instrument panel fuse box |
3L |
| F1/7f110 |
Fuse 110 |
1K |

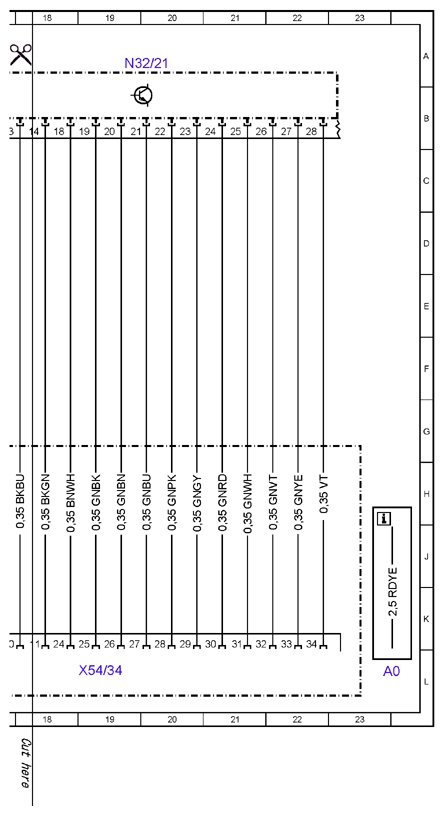

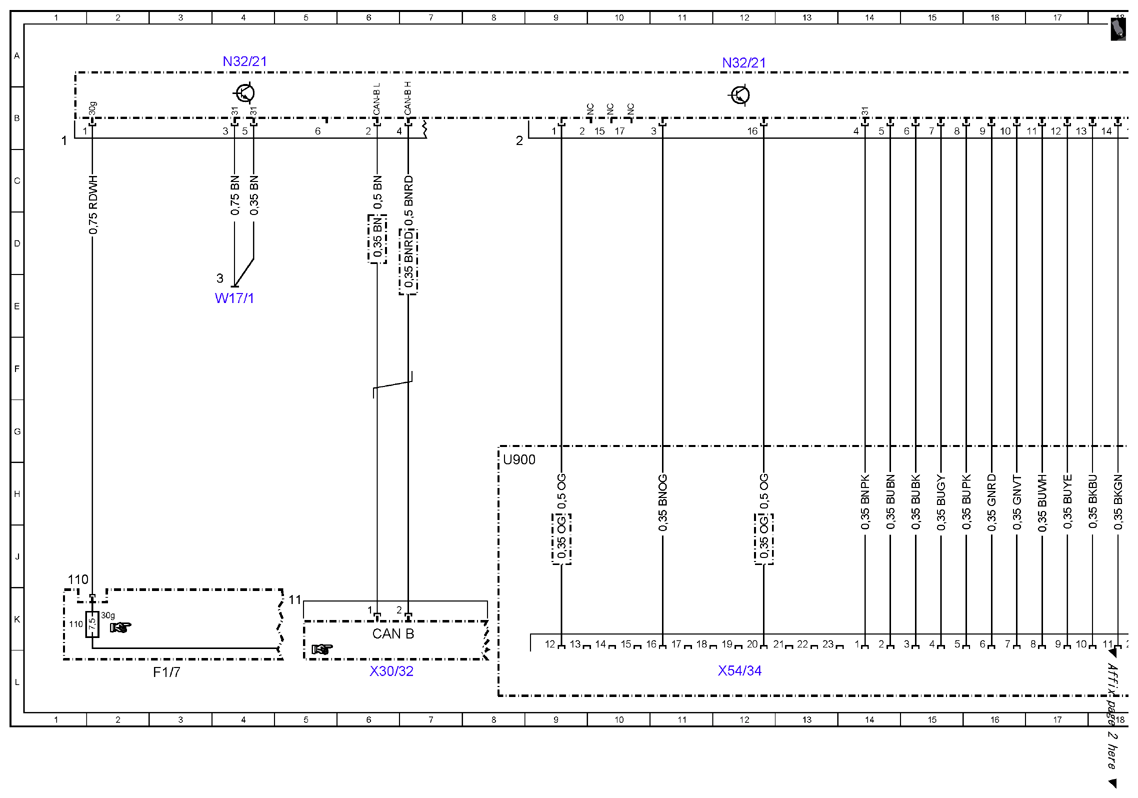

| N32/21 |
Right rear multicontour backrest control unit |
4A |
| N32/21 |
Right rear multicontour backrest control unit |
12A |
| N32/21 |
Right rear multicontour backrest control unit |
19A |
| U900 |
Further line routing not clarified at time of publication |
8H |
| W17/1 |
Ground (left rear seat) |
4E |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
6L |
| X54/34 |
Right rear multicontour backrest connector |
12L |
| X54/34 |
Right rear multicontour backrest connector |
19L |
