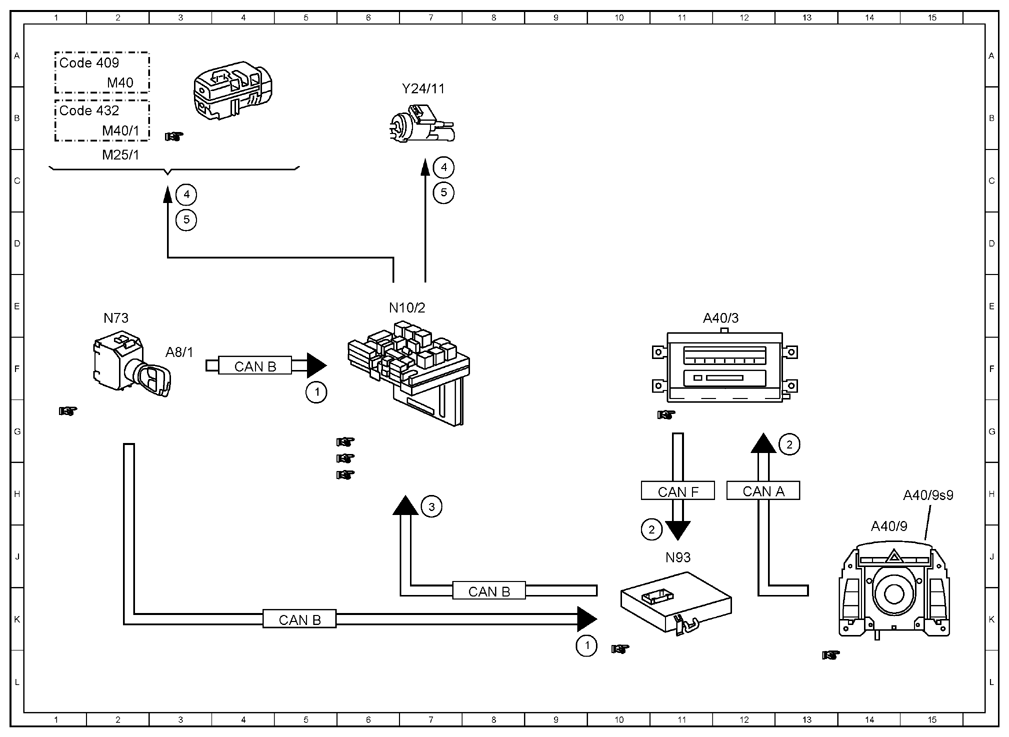

| 1 |
Circuit 15, status |
5F |
| 1 |
Circuit 15, status |
9K |
| 2 |
Rear head restraints button, status |
13G |
| 2 |
Rear head restraints button, status |
11J |
| 3 |
Retractable rear head restraints, request |
7H |
| 4 |
Retractable rear head restraints, actuation |
3C |
| 4 |
Retractable rear head restraints, actuation |
7C |
| 5 |
Multifunction pneumatic controller unit, actuation |
3D |
| 5 |
Multifunction pneumatic controller unit, actuation |
7C |
| A40/3 |
COMAND control unit |
11E |
| A40/9 |
Front central operating unit |
14J |
| A40/9s9 |
Head restraint folding button |
15H |
| A8/1 |
Transmitter key |
3F |
| CAN A |
Telematics CAN |
12H |
| CAN B |
Interior CAN |
4F |
| CAN B |
Interior CAN |
5K |
| CAN B |
Interior CAN |
8K |
| CAN F |
Central CAN |
11H |
| Code 409 |
Left and right front multicontour seats |
1A |
| Code 432 |
Left and right front dynamic multicontour seats |
1B |
| M25/1 |
Lumbar pump |
2C |
| M40 |
Multicontour seat pneumatic pump |
2B |
| M40/1 |
Pneumatic pump for dynamic seat control |
2B |
| N10/2 |
Rear SAM control unit with fuse and relay module |
6E |
| N73 |
EIS [EZS] control unit |
2E |
| N93 |
Central gateway control unit |
11J |
| Y24/11 |
Rear head restraints valve block |
7B |
