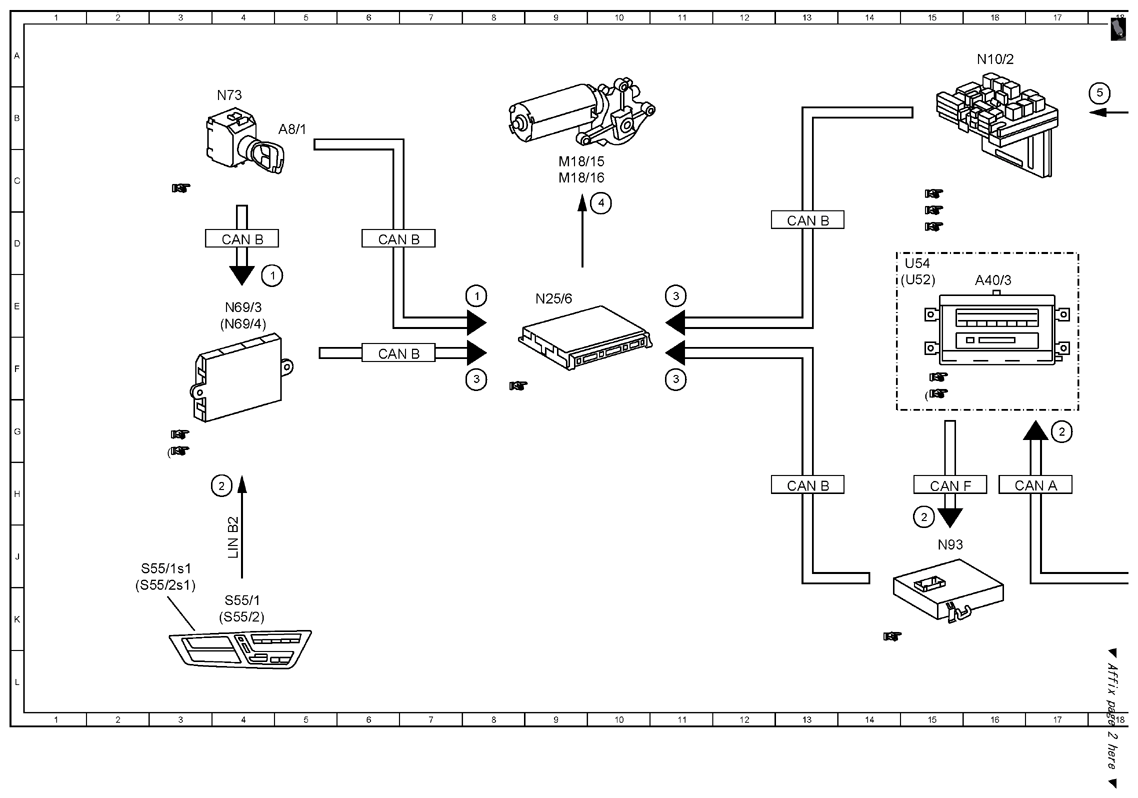

| 1 |
Circuit 15, status |
|
| 1 |
Circuit 15, status |
|
| 2 |
Rear head restraints button, status |
|
| 2 |
Rear head restraints button, status |
|
| 2 |
Rear head restraints button, status |
|
| 3 |
Retractable rear head restraints, request |
|
| 3 |
Retractable rear head restraints, request |
|
| 3 |
Retractable rear head restraints, request |
|
| 4 |
Retractable rear head restraints, actuation |
|
| 5 |
Rear seat belt buckle switch, status |
|
| A40/3 |
COMAND control unit |
|
| A40/9 |
Front central operating unit |
|
| A40/9s9 |
Head restraint folding button |
|
| A8/1 |
Transmitter key |
|
| CAN A |
Telematics CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN F |
Central CAN |
|
| LIN B2 |
Rear door LIN |
|
| M18/15 |
Left rear head restraint inclination adjustment motor |
|
| M18/16 |
Right rear head restraint inclination adjustment motor |
|
| N10/2 |
Rear SAM control unit with fuse and relay module |
|
| N25/6 |
Rear seats control unit |
|
| N69/3 |
Rear left door control unit |
|
| N69/4 |
Right rear door control unit |
|
| N73 |
EIS [EZS] control unit |
|
| N93 |
Central gateway control unit |
|
| S55/1 |
Left rear seat operation switch group |
|
| S55/1s1 |
Head restraint adjustment switch |
|
| S55/2 |
Right rear seat operation switch group |
|
| S55/2s1 |
Head restraint adjustment switch |
|

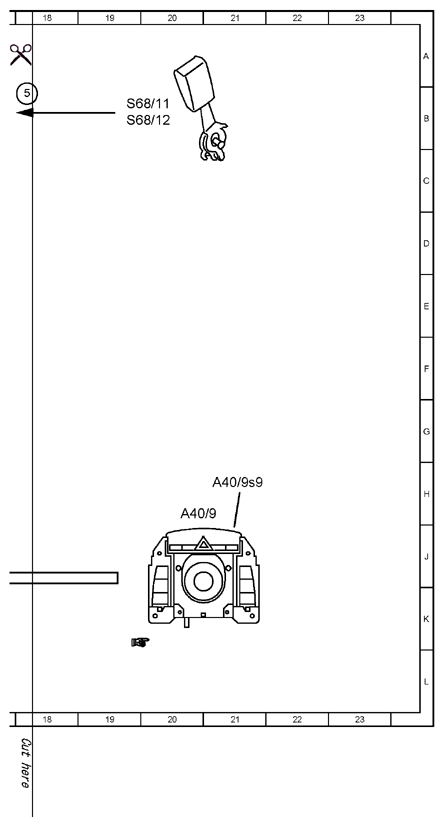

| S68/11 |
Left rear seat belt buckle switch |
|
| S68/12 |
Right rear seat belt buckle switch |
|
| U52 |
Valid for Japan |
|
| U54 |
Valid for all except Japan |
|
