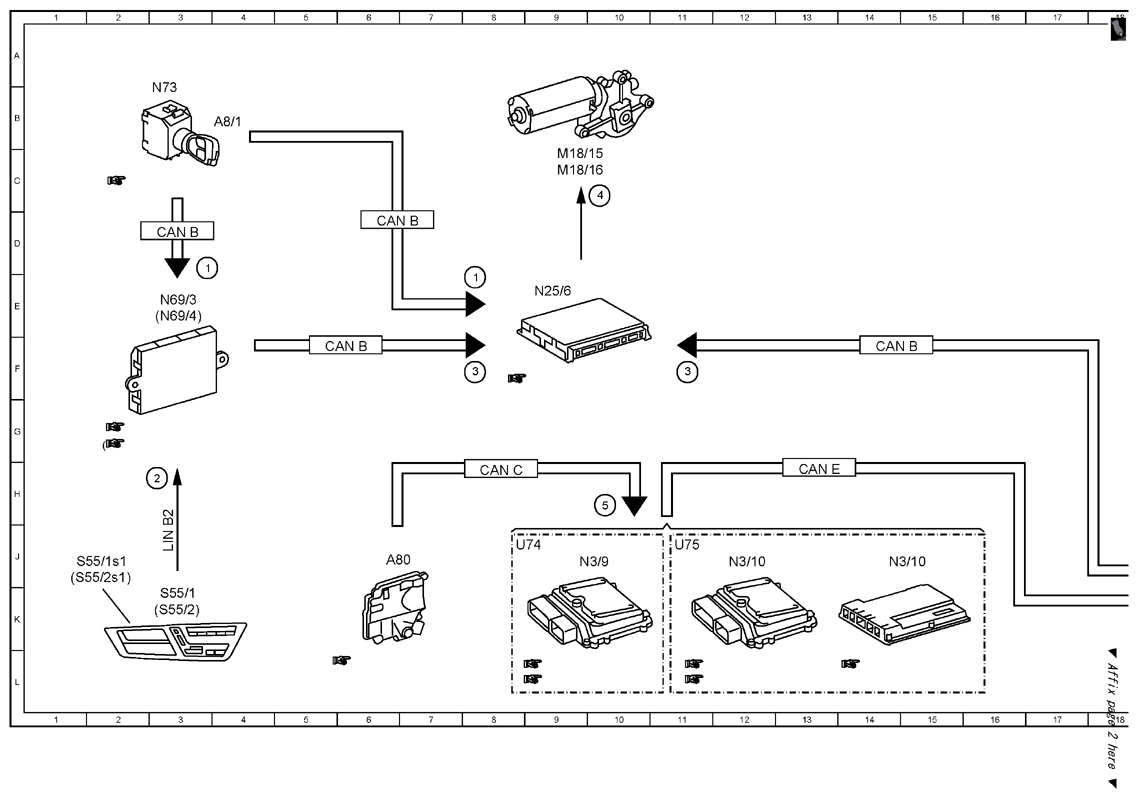

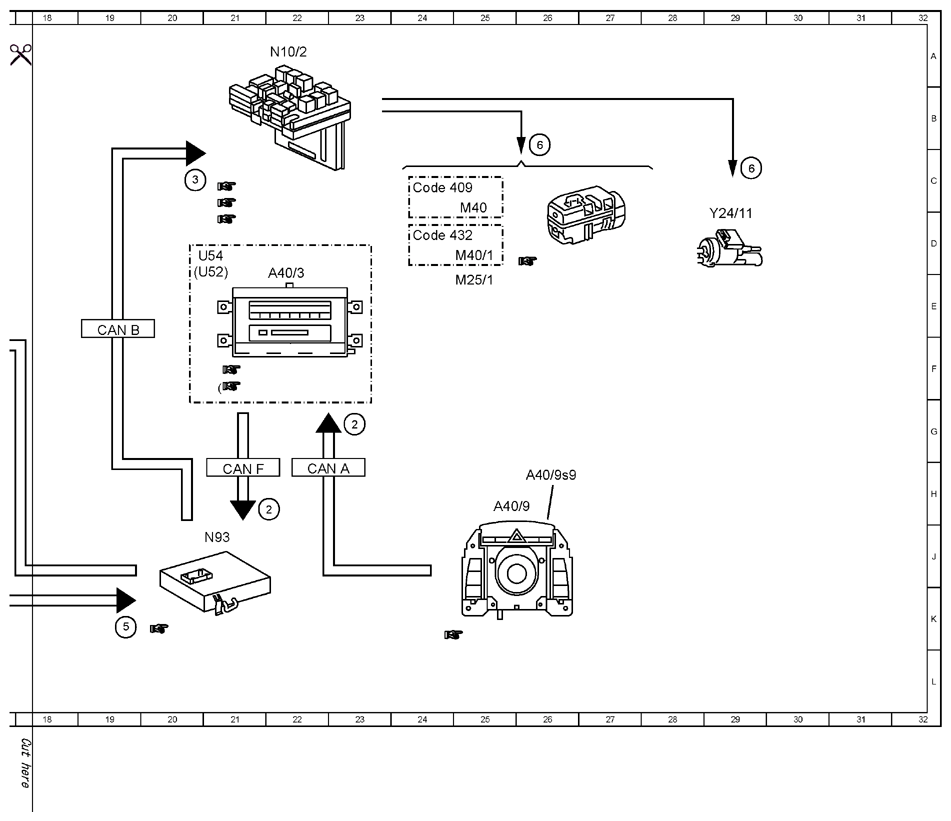

| 1 |
Circuit 15, status |
|
| 1 |
Circuit 15, status |
|
| 2 |
Rear head restraints button, status |
|
| 2 |
Rear head restraints button, status |
|
| 2 |
Rear head restraints button, status |
|
| 3 |
Retractable rear head restraints, request |
|
| 3 |
Retractable rear head restraints, request |
|
| 3 |
Retractable rear head restraints, request |
|
| 4 |
Retractable rear head restraints, actuation |
|
| 5 |
Reverse gear, status |
|
| 5 |
Reverse gear, status |
|
| 6 |
Multifunction pneumatic controller unit, actuation |
|
| 6 |
Multifunction pneumatic controller unit, actuation |
|
| A40/3 |
COMAND control unit |
|
| A40/9 |
Front central operating unit |
|
| A40/9s9 |
Head restraint folding button |
|
| A8/1 |
Transmitter key |
|
| A80 |
Intelligent servo module for DIRECT SELECT |
|
| CAN A |
Telematics CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN C |
Drive train CAN |
|
| CAN E |
Chassis CAN |
|
| CAN F |
Central CAN |
|
| Code 409 |
Left and right front multicontour seats |
|
| Code 432 |
Left and right front dynamic multicontour seats |
|
| LIN B2 |
Rear door LIN |
|
| M18/15 |
Left rear head restraint inclination adjustment motor |
|
| M18/16 |
Right rear head restraint inclination adjustment motor |
|
| M25/1 |
Lumbar pump |
|
| M40 |
Multicontour seat pneumatic pump |
|
| M40/1 |
Pneumatic pump for dynamic seat control |
|
| N10/2 |
Rear SAM control unit with fuse and relay module |
|
| N25/6 |
Rear seats control unit |
|
| N3/10 |
ME-SFI [ME] control unit |
|
| N3/10 |
ME-SFI [ME] control unit |
|
| N3/9 |
CDI control unit |
|
| N69/3 |
Rear left door control unit |
|
| N69/4 |
Right rear door control unit |
|
| N73 |
EIS [EZS] control unit |
|
| N93 |
Central gateway control unit |
|
| S55/1 |
Left rear seat operation switch group |
|
| S55/1s1 |
Head restraint adjustment switch |
|
| S55/2 |
Right rear seat operation switch group |
|
| S55/2s1 |
Head restraint adjustment switch |
|
| U52 |
Valid for Japan |
|
| U54 |
Valid for all except Japan |
|
| U74 |
Valid for diesel engines |
|
| U75 |
Valid for gasoline engines |
|
| Y24/11 |
Rear head restraints valve block |
|
