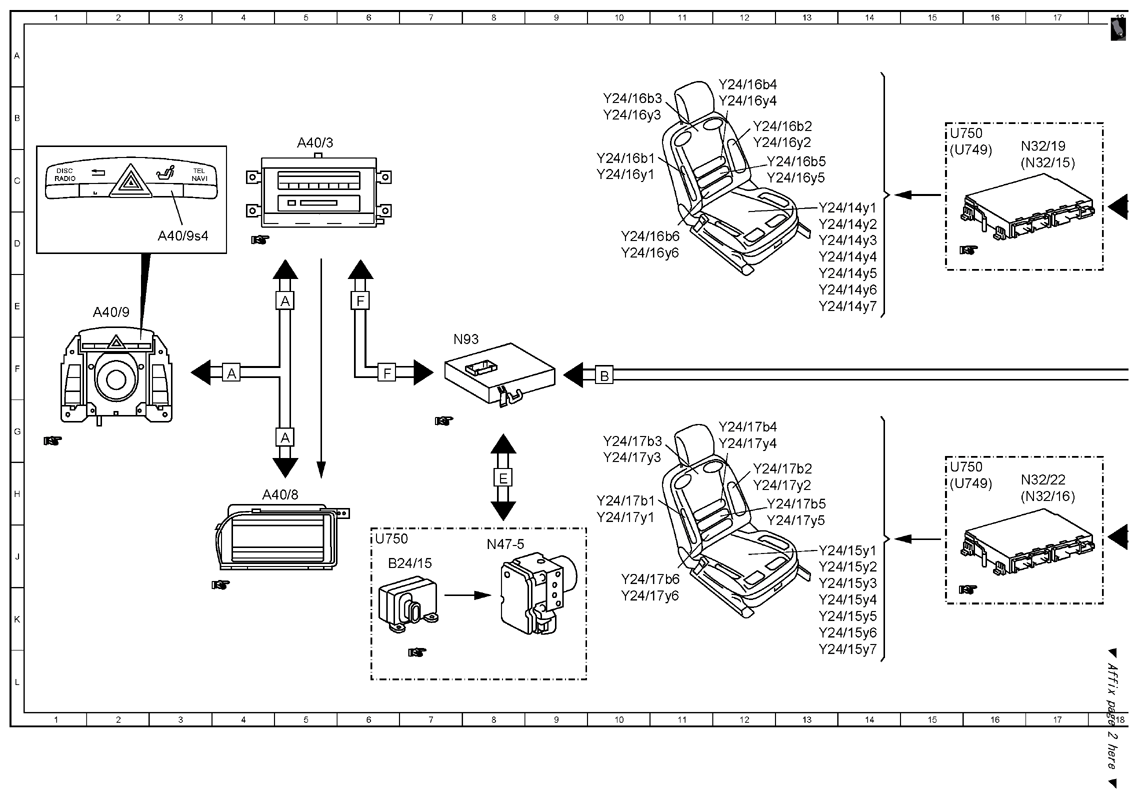

| A40/3 |
COMAND control unit |
5B |
| A40/8 |
COMAND display |
4H |
| A40/9 |
Front central operating unit |
2E |
| A40/9s4 |
Multicontour seat quick select button |
3D |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
7J |
| LIN B1 |
Front door LIN |
|
| LIN B1 |
Front door LIN |
|
| M40 |
Multicontour seat pneumatic pump |
30F |
| M40/1 |
Pneumatic pump for dynamic seat control |
30E |

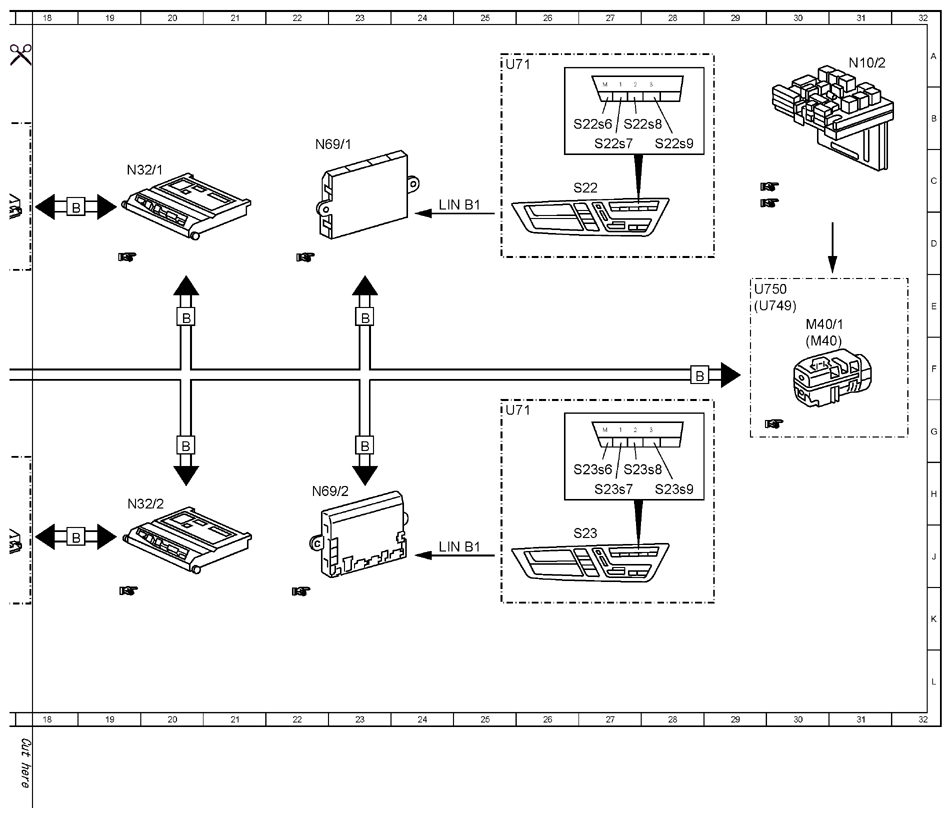

| N10/2 |
Rear SAM control unit with fuse and relay module |
31A |
| N32/1 |
Left front seat control unit |
19C |
| N32/15 |
Left front multicontour backrest control unit |
16C |
| N32/16 |
Right front multicontour backrest control unit |
16H |
| N32/19 |
Left front dynamic seat control unit |
16C |
| N32/2 |
Right front seat control unit |
19H |
| N32/22 |
Right front dynamic seat control unit |
16H |
| N47-5 |
ESP control unit |
8J |
| N69/1 |
Left front door control unit |
22B |
| N69/2 |
Right front door control unit |
22H |
| N93 |
Central gateway control unit |
7F |
| S22 |
Left front seat operation switch group |
27C |
| S22s6 |
Memory switch |
27B |
| S22s7 |
Memory 1 switch |
27B |
| S22s8 |
Memory 2 switch |
27B |
| S22s9 |
Memory 3 switch |
28B |
| S23 |
Right front seat operation switch group |
27J |
| S23s6 |
Memory switch |
27H |
| S23s7 |
Memory 1 switch |
27H |
| S23s8 |
Memory 2 switch |
27H |
| S23s9 |
Memory 3 switch |
28H |
| U71 |
Valid for seat adjustment with memory |
25A |
| U71 |
Valid for seat adjustment with memory |
25G |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
29E |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
15C |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
15H |
| U750 |
Valid for dynamic seat (DS [FDS]) |
29E |
| U750 |
Valid for dynamic seat (DS [FDS]) |
6J |
| U750 |
Valid for dynamic seat (DS [FDS]) |
15B |
| U750 |
Valid for dynamic seat (DS [FDS]) |
15H |
| Y24/14y1 |
Lower massage row 1 piezo valve |
13D |
| Y24/14y2 |
Lower massage row 2 piezo valve |
13D |
| Y24/14y3 |
Lower massage row 3 piezo valve |
13D |
| Y24/14y4 |
Lower massage row 4 piezo valve |
13D |
| Y24/14y5 |
Lower massage row 5 piezo valve |
13E |
| Y24/14y6 |
Lower massage row 6 piezo valve |
13E |
| Y24/14y7 |
Upper massage row piezo valve |
13E |
| Y24/15y1 |
Lower massage row 1 piezo valve |
13J |
| Y24/15y2 |
Lower massage row 2 piezo valve |
13J |
| Y24/15y3 |
Lower massage row 3 piezo valve |
13K |
| Y24/15y4 |
Lower massage row 4 piezo valve |
13K |
| Y24/15y5 |
Lower massage row 5 piezo valve |
13K |
| Y24/15y6 |
Lower massage row 6 piezo valve |
13K |
| Y24/15y7 |
Upper massage row piezo valve |
13L |
| Y24/16b1 |
Left backrest lateral support cushion pressure sensor |
10C |
| Y24/16b2 |
Right backrest lateral support cushion pressure sensor |
12B |
| Y24/16b3 |
Shoulder cushion pressure sensor |
10B |
| Y24/16b4 |
Upper lumbar cushion pressure sensor |
12B |
| Y24/16b5 |
Central lumbar cushion pressure sensor |
12C |
| Y24/16b6 |
Lower lumbar cushion pressure sensor |
10D |
| Y24/16y1 |
Left backrest lateral support cushion piezo valve |
10C |
| Y24/16y2 |
Right backrest lateral support cushion piezo valve |
12B |
| Y24/16y3 |
Shoulder cushion piezo valve |
10B |
| Y24/16y4 |
Upper lumbar cushion piezo valve |
12B |
| Y24/16y5 |
Central lumbar cushion piezo valve |
12C |
| Y24/16y6 |
Lower lumbar cushion piezo valve |
10D |
| Y24/17b1 |
Left backrest lateral support cushion pressure sensor |
10H |
| Y24/17b2 |
Right backrest lateral support cushion pressure sensor |
12H |
| Y24/17b3 |
Shoulder cushion pressure sensor |
10G |
| Y24/17b4 |
Upper lumbar cushion pressure sensor |
12G |
| Y24/17b5 |
Central lumbar cushion pressure sensor |
12H |
| Y24/17b6 |
Lower lumbar cushion pressure sensor |
10J |
| Y24/17y1 |
Left backrest lateral support cushion piezo valve |
10H |
| Y24/17y2 |
Right backrest lateral support cushion piezo valve |
12H |
| Y24/17y3 |
Shoulder cushion piezo valve |
10G |
| Y24/17y4 |
Upper lumbar cushion piezo valve |
12G |
| Y24/17y5 |
Central lumbar cushion piezo valve |
12J |
| Y24/17y6 |
Lower lumbar cushion piezo valve |
10K |
