Seat belt height adjustment mechanism (front seat) removal and installation - AR91.40-P-1100SXA
MODEL 221.0##/1## ## as of 198219

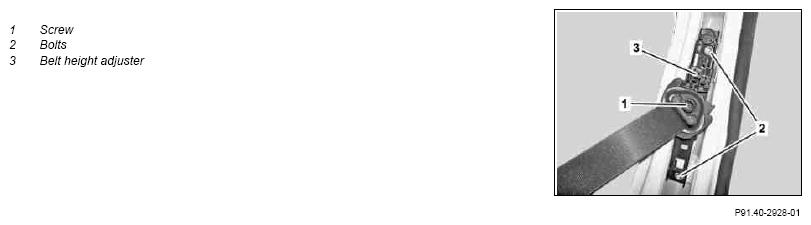

Shown at right belt height adjuster
| Remove/install | |||
| 1 | Remove paneling on B-pillar | AR68.30-P-4700SX | |
| 2 | Remove bolt (1) from seat belt guide bracket. | *BA91.40-P-1002-01O | |
| 3 | Remove bolts (2) and remove belt height adjuster (3) | *BA91.40-P-1011-01O | |
| 4 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 221 | |
|---|---|---|---|
| BA91.40-P-1002-01O | Screw on front upper belt guide fitting | Nm | 30 |
| BA91.40-P-1011-01O | Bolt at front belt height adjuster | Nm | 32 |
