Removing, installing windowbag - AR91.60-P-0693SXS

MODEL 221.1 with code (Z07) top protection

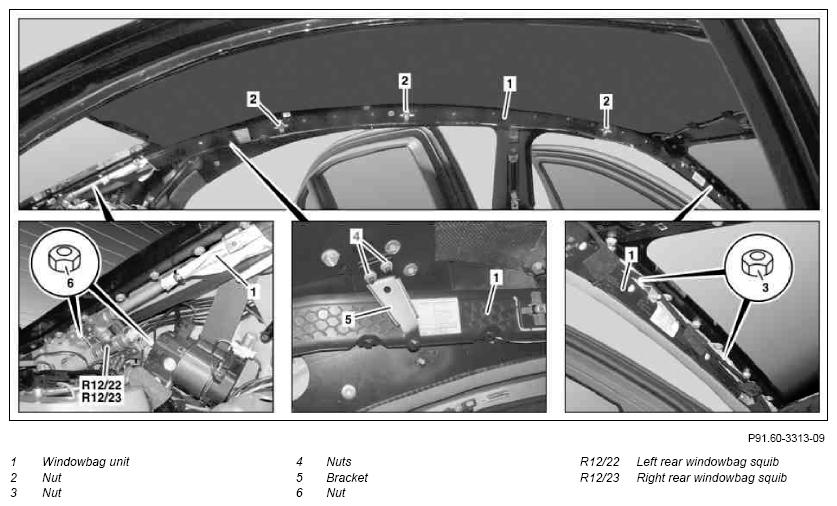

Fig 1: Identifying Windowbag Remove/Install Components
G10129864Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units. Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. AS91.00-Z-0001-01A
NOTES Notes on performing repair, body work and welding on vehicles with airbags and ETR units   AH91.00-P-0002-01M
NOTES Notes on avoiding damage to windows installed in special high-security vehicles   AH67.00-P-0003-01FB
IMPORTANT Assessment of airbag and belt tensioner units in accident vehicles   AH91.00-P-0006-01B
IMPORTANT Legal requirements on handling and storing airbags and emergency tensioning retractor units   AH91.00-P-0004-01A
1 Remove headliner   AR68.30-P-4300SXS
2 Connect ground line to starter battery and to on-board electrical system battery   AR54.10-P-0003SX
3 Disconnect connector from left rear windowbag squib (R12/22) or right rear windowbag squib (R12/23) INSTALLATION IMPORTANT connector must be heard to engage when being plugged in.
4.1 Detach ground (heated rear window) to C-pillar When removing the left windowbag unit (1).
5.1 Detach electric wiring harness from antenna blocking circuit When removing the right windowbag unit (1).
6 Remove bracket (5) for the paneling on the C-pillar
7 Unscrew nuts (6) of windowbag unit (1) on C-pillar TORQUE SPECIFICATION *BA91.60-P-1002-01L
8 Unscrew nuts (3) of windowbag unit (1) on A-pillar TORQUE SPECIFICATION *BA91.60-P-1003-01L
9 Unscrew nuts (2) of windowbag unit (1) on the roof frame TORQUE SPECIFICATION *BA91.60-P-1011-01L
10 Remove windowbag unit (1) NOTES Remove windowbag unit (1) carefully to ensure that the interior and the plastic coating on the inside of the glazing are not damaged.
IMPORTANT If a new windowbag unit (1) is being installed, the defective windowbag unit (1) must be properly disposed of. Refer to: ↓
REFER TO FORMS   Notes on disposing of airbag and emergency tensioning retractor units OS91.00-P-0001-01A
11 Install in the reverse order
12.1 Check supplemental restraint system (SRS) with STAR DIAGNOSIS After installing new windowbag unit (1).
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
AIRBAG

Number Designation Model 221
BA91.60-P-1002-01L Nut for windowbag gas generator Nm 7
BA91.60-P-1003-01L Nut, windowbag to A-pillar Nm 5
BA91.60-P-1011-01L Bolt/nut, windowbag unit to roof frame Nm 6
