Remove/install seat belt buckle (front seat) - AR91.40-P-1515SX

MODELS 221.0/1

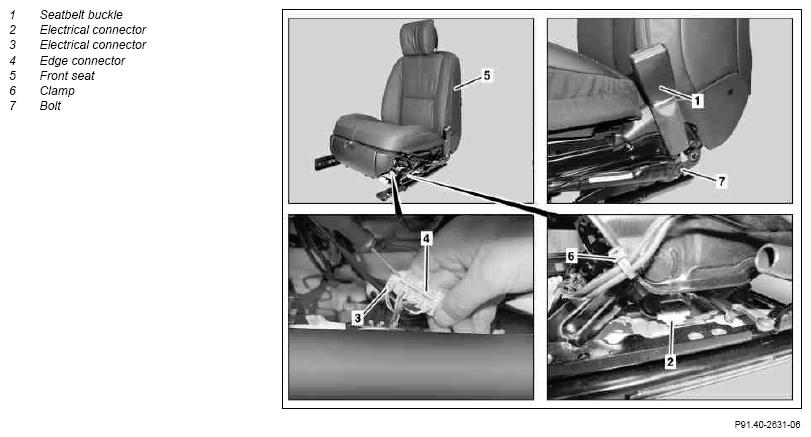

Fig 1: Identifying Front Seat Belt Buckle Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front seat (5)		AR91.10-P-1000SX
2	Disconnect electric connector (2)
3	Detach multipoint connector (4) from seat frame and disconnect electrical connector (3) using a suitable screwdriver
4	Loosen clamp (6) from seat frame
5	Remove bolt (7) and remove seat belt buckle (1)		*BA91.40-P-1003-01O
6	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 221
BA91.40-P-1003-01O	Bolt on front belt buckle	Nm	32
