Remove/install head restraint drive unit - AR91.29-P-1200SX
MODELS 221.0/1 front seat
| Remove/install | |||
| 1 | Remove left or right head restraint | AR91.16-P-0040SX | |

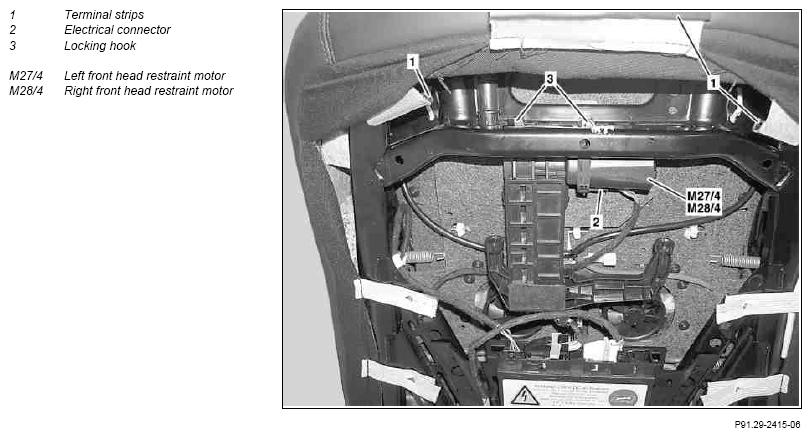

| 2 | Detach terminal strips (1) on front seat backrest | ||
| 3 | Disconnect electric connector (2) | ||
| 4 | Release catch hook (3) to right and remove left front head restraint motor (M27/4) or right front head restraint motor (M28/4) | ||
| 5 | Install in the reverse order |
