Remove/install front seat sidebag unit - AR91.60-P-0695SX
MODEL 221.0/1

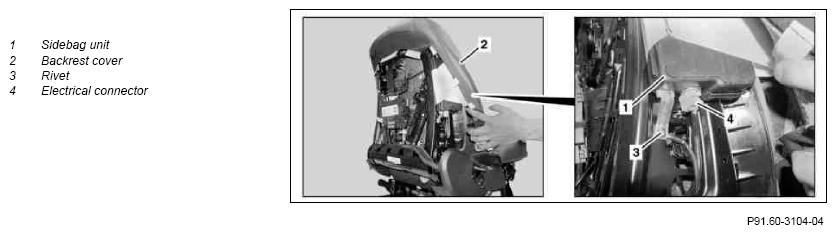

Shown on right front seat
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal regulations on handling and storing airbags and emergency tensioning retractors | AH91.00-P-0004-01A | ||
| 1 | Move left or right front seat forwards | ||
| 2 | Detach ground line to starter battery and on-board electrical system battery | AR54.10-P-0003SX | |
| 3 | Remove seat-back lining on front seat backrest | ||
| 4 | Release backrest cover (2) in area of sidebag unit (1) | ||
| 5 | Drill out rivet (3). | *WH58.30-Z-1003-29A | |
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| 6 | Detach electrical connector (4) and remove sidebag unit (1) | ||
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| 7 | Install in the reverse order | ||
| 8.1 | Check supplemental restraint system (SRS) using STAR DIAGNOSIS | After replacing sidebag unit (1). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
| WH58.30-Z-1003-29A | Hand riveter | |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
