Remove/install front seat control unit - AR91.29-P-1550SX
MODEL 221.0/1
MODIFICATION NOTES
| 3.5.07 | "Disconnect ground line and note on avoiding electrostatic charge" added |
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Loosen left or right front seat, fold back | AR91.10-P-1000SX | |
| 2 | Disconnect ground cable | AR54.10-P-0003SX | |

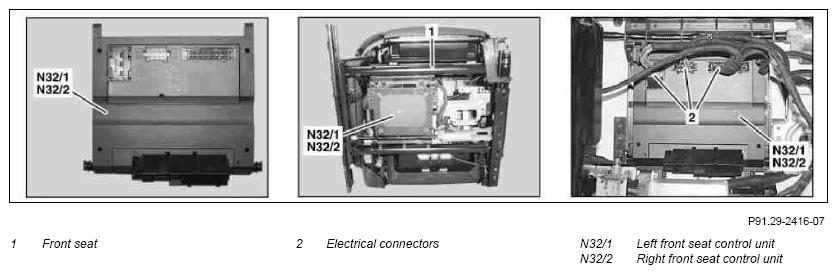

| 3 | Detach electrical connectors (2) and unclip left front seat control unit (N32/1) or right front seat control unit (N32/2) from front seat (1) and remove | ||
| 4 | Install in the reverse order |
