Remove/install front acceleration sensor - AR91.60-P-0750MB

MODEL 215, 220.0/1 as of 1.9.02 with CODE (803) Model year 2003

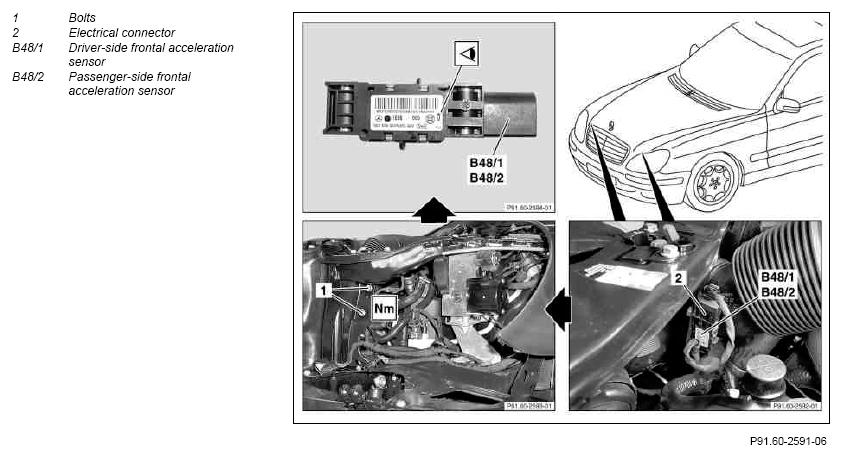

Fig 1: Identifying Front Acceleration Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove headlamp assembly	Left, right.
		Model 220 without lamp unit Xenon headlamp, code 612b.
		Model 220 with lamp unit Xenon headlamp, code 612b.
		Model 215	AR82.10-P-4730N
2	Remove bolts (1)	Bolt, frontal acceleration sensor to front module support	*BA91.60-P-1013-01A
3	Remove frontal acceleration sensor, driver-side (B48/1) or passenger-side (B48/2)	Make sure that the black rimmed arrow points in the direction of travel.
4	Detach electrical connector (2) from the frontal acceleration sensor, driver side (B48/1) or passenger-side (B48/2)
5	Install in the reverse order
