Remove, replace and install rear center seat belt - AR91.40-P-0683SX
MODEL 221.0/1 except CODE (224) Rear individual seat design
| Remove/install | |||
| Risk of injury caused by release of spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| 1 | Remove rear shelf | Model 221.0 or Model 221.1 without code (Z07) Top protection |
AR68.30-P-4580SX |
| MODEL 221.1 with CODE (Z07) Top protection | AR68.30-P-4580SXS | ||

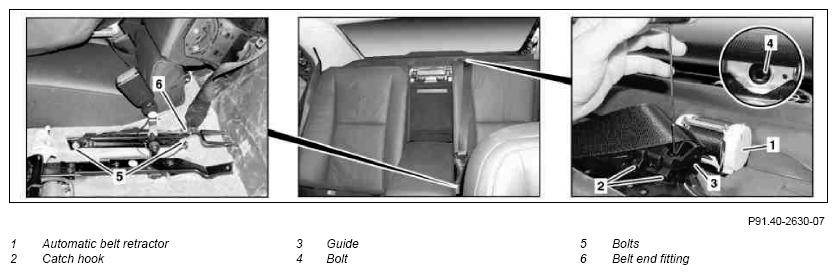

| 2 | Unclip catch hook (2) of guide (3) | Fig 2 | |
| 3 | Remove bolt (4) on automatic belt retractor (1) | *BA91.40-P-1006-01O | |
| 4 | Remove bolts (5) from belt end fitting (6) and remove belt end fitting (6) | *BA91.40-P-1007-01O | |
| 5 | Remove automatic belt retractor (1) | Refer to: ↓ |
|
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| 6 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 221 | |
|---|---|---|---|
| BA91.40-P-1006-01O | Bolt to rear inertia reel | Nm | 32 |
| BA91.40-P-1007-01O | Screw on rear belt buckle | Nm | 32 |
