Retrofit mechanically adjustable worktable in the rear - AN91.10-P-0006SX

MODEL 221.022/028/054/056/070/071/084/086/122/128/154/156/170/171/176/184/186 1#

Shown on removed front seat

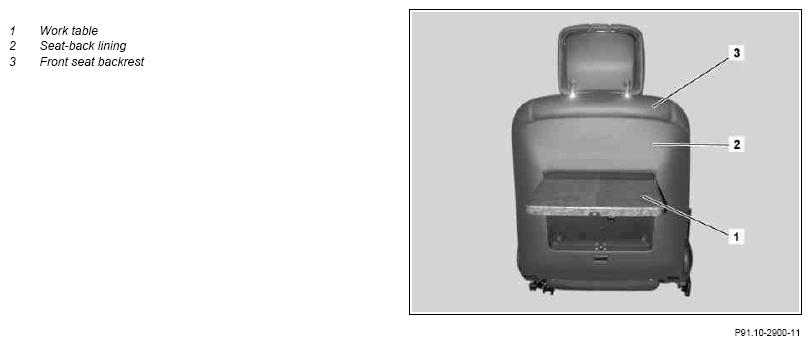

Fig 1: Identifying Front Seat Backrest, Work Table And Seat-Back Lining

Courtesy of MERCEDES-BENZ USA

		The worktable (1) can be installed on one or both front seat backrests (3). The package contents are the same for the left and right front seat backrest (3).
	Removal
1	Move left and/or right front seat to foremost position
2	Set left and/or right front seat backrest to vertical position
3	Raise left and/or right front seat cushion at rear
4	Remove seat-back lining (2) on front seat backrest (3) of left and/or right front seat	Seat-back lining (2) is no longer applicable. It is replaced by a new seat-back lining (2) with worktable (1).
	Install
5	Mount new seat-back lining (2) with worktable (1) to front seat backrest (3) of left and/or right front seat
6.1	Replace seat-back lining (2) on front seat backrest of other front seat	Only vehicles with (code 800A) Nappa leather, on which only one worktable (1)  is installed.
7	Enter special equipment in the vehicle data card and in the vehicle's online data card	For retrofitting on driver seat: code (407) Left worktable. For retrofitting on front passenger seat: Code (408) Right worktable.
