Retrofit front seat height adapter - AN91.10-P-0002M

MODEL 220

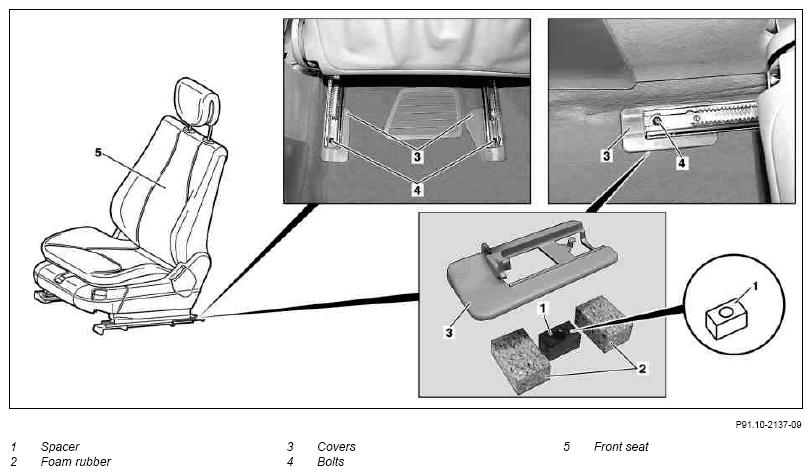

Fig 1: Identifying Retrofit Front Seat Height Adapter Components

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove bolts (4, 4 pieces) on the front and rear seat rails		Fig 2
	Install
2	Raise front seat frame, place spacers (1) on the right and left as well as at the front and rear under the under the seat rails and fasten with the bolts contained in the accessories	Do not damage covers (3)	*BA91.10-P-1001-01H
3	Clamp foamed material (2) in each case in front of and behind the spacer (1) under the covers (3) of the seat rails
4	Check seat adjustment for proper function
5	If the package changes, supplement the code or designation of the relevant special equipment on the vehicle data card

FRONT SEATS

Number	Designation		Model 220 up to 30.11.01
BA91.10-P-1001-01H	Bolt to seat runner	Nm	50

Fig 2: Identifying External Torx Set (001 589 76 09 00)

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A 220 910 17 36	Increased height seat, 220	1
