Vehicle menu item, function - GF54.30-P-3160SX

MODEL 221.0/1 except CODE (498) Japan version up to Model Year 08

MODEL 216.3 except CODE (498) Japan version up to Model Year 08

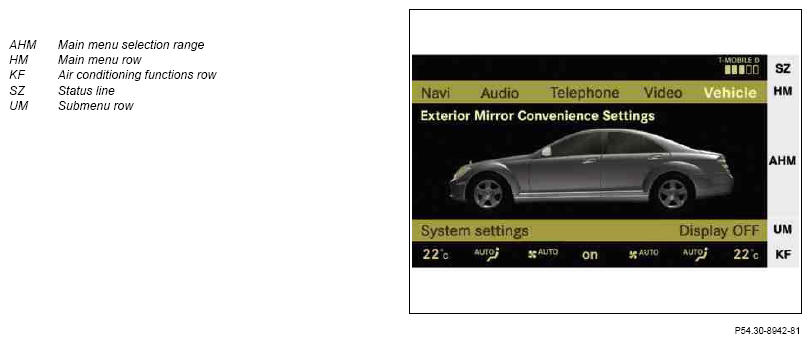

"Vehicle" menu item shown on model 221 up to 31.8.06

Menu item "Vehicle" of main menu row

If the "Vehicle" menu item of the main menu row is activated, it is possible to select the "System settings" menu item in the submenu row.

"System settings" menu item

If the "System settings" menu item is activated in the submenu row, it is possible to select under the following submenu items:

• "Display"
• "Time"
• "Read out"
• "Linguatronic"
• "Language"
• "Favorite"
• "Services"
• "Reset"

"Display" submenu item in system settings

If the "Display" submenu item is activated, the following settings can be selected:

• "Day screen"
• "Night screen"
• "Automatic"

"Time" submenu item in system settings

If the "Time" submenu item is activated, the following settings can be selected:

• "Clock"
• "Date"
• "Format"
• "Time zone"

"Read out" submenu item in system settings

The reading speed of the read out function can be set as follows:

• "Slow"
• "Medium"
• "high-speed" range

Apart from the reading speed, on vehicles with code (494) USA version it is possible to select between the sex (female or male) of the voice reading aloud.

"Linguatronic" submenu item in system settings

The following settings can be selected for Linguatronic:

• "Display help window"
• "Further training"
• "Erase further training"

"Language" submenu item in system settings

One of the following languages can be selected for the display in the COMAND display (A40/8):

• "German"
• "English"
• "US English" only on vehicles with code (494) USA version
• "French"
• "Spanish"
• "Italian"
• "Dutch"
• "Danish"
• "Swedish"
• "Portuguese"
• "Turkish"
• "Russian"
• "Chinese"

"Favorite" submenu item in system settings

With this setting the freely programmable button (A40/9s10) on the front central operating unit (A40/9) can be assigned with one of the following functions:

• "Rear roller blind"
• "Display off"
• "Tow away protection"
• "Repeat acoustic driver" vehicles

In addition the following equipment variants are available on except code (494) USA version:

• "Two-way radio connection"

  (only for special-purpose vehicles and not driver-configurable)

• "Activate data protection"
• "Interior protection"
• "Tow away and interior protection"

The scope of the functions available is depends on the special equipment fitted in the vehicle

"Service" submenu item in system settings

The following settings can be selected via the "Services" submenu:

• "Services status"

  Display and change the status of the available services

• "Find Bluetooth devices"

  Find new Bluetooth devices

• "Disable Bluetooth"

  Disable all Bluetooth connections

"Reset" submenu item in system settings

All adjusted settings are reset to the factory settings by selecting the "Reset" submenu item. This erases all individual settings and all address book entries.

	Cockpit central display, component description		GF54.30-P-6100SX
	Front central operating unit, component description		GF54.21-P-4500SX
