Trip computer (RRE) component networking - GF54.50-P-0001-02SX

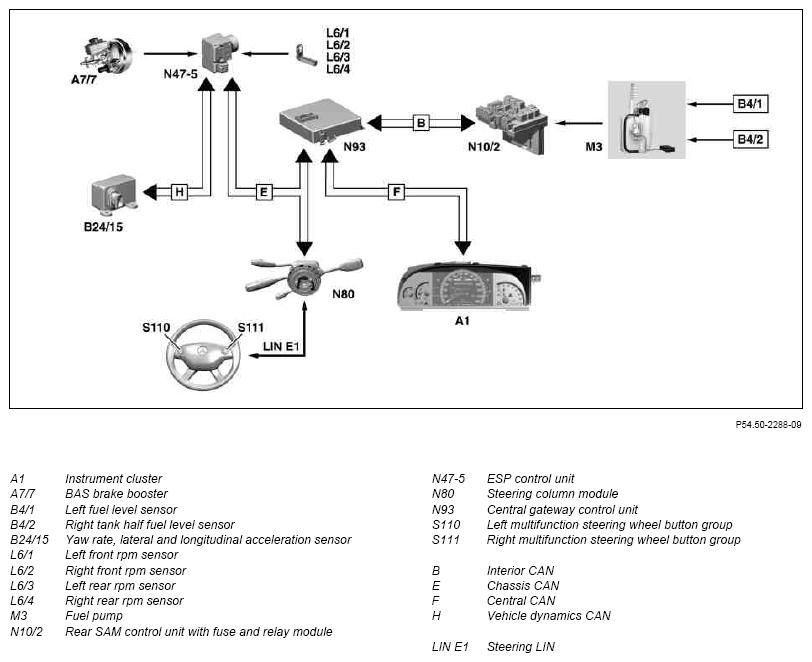

Fig 1: Trip Computer (RRE) - Block Diagram (Shown On Model 221.07)

G10111023

Courtesy of MERCEDES-BENZ USA

Shown on model 221.07 up to 31.8.06
