PARKTRONIC block diagram - GF54.65-P-0003-02LE

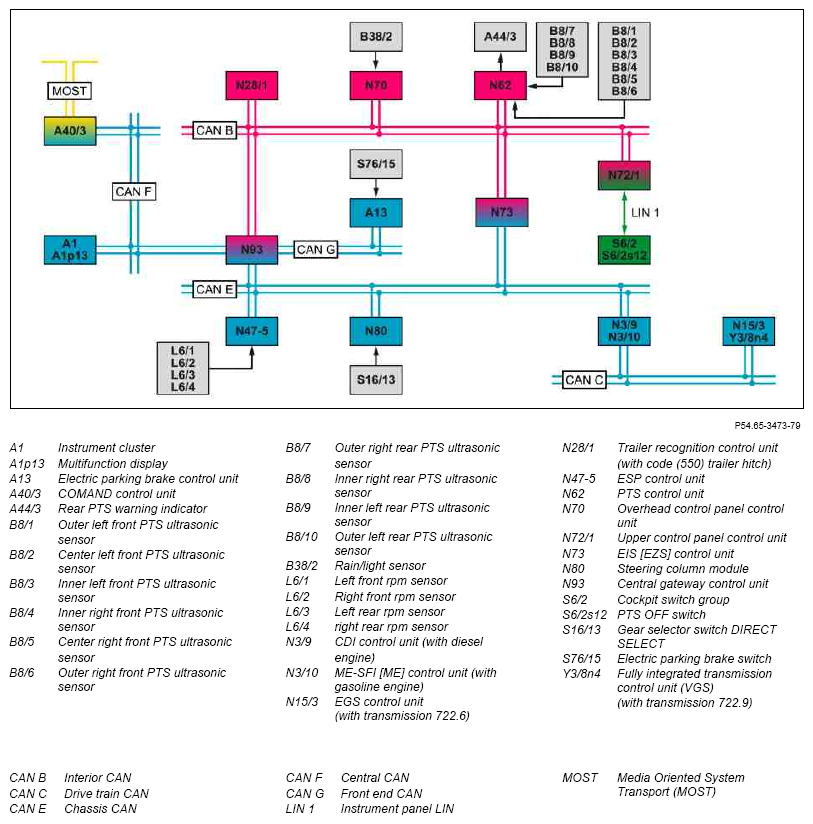

Fig 1: PARKTRONIC - Block Diagram

G10111039

Courtesy of MERCEDES-BENZ USA
