Fanfare horn system, function - GF54.35-P-0001SX
MODEL 221.0/1 up to Model Year 08
Function requirements:
- Circuit 15 ON
Function

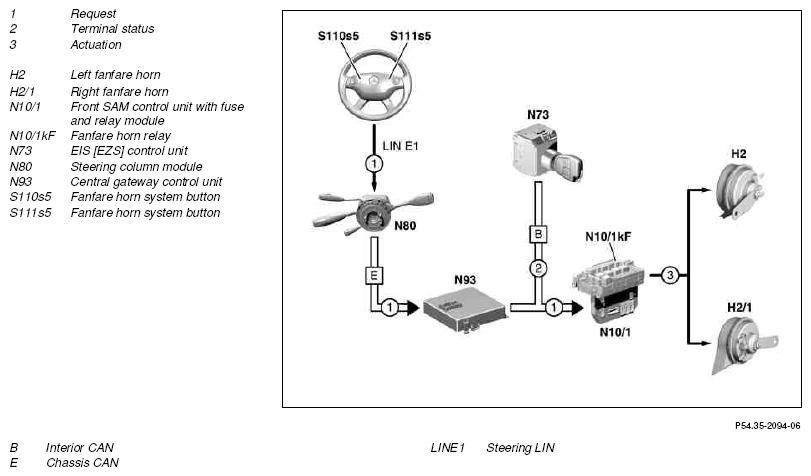

The pressing of the fanfare horn system button is read in by the steering column module via the steering LIN and passed on to the central gateway control unit via the chassis CAN. The central gateway control unit passes on the request to the front SAM control unit via the interior CAN.
The front SAM control unit actuates the fanfare horns via the fanfare horns relay.
The circuit status is transmitted by the EIS [EZS] control unit on the interior CAN.
| Fanfare position of components | GF54.35-P-0001-01SX | ||
| Fanfare horns block diagram | GF54.35-P-0001-03SX | ||
| Driver-side SAM control module with fuse and relay module component description | N10/1 | GF54.21-P-6010SX | |
| Electronic ignition/starter switch control unit (EIS) component description | N73 | GF80.57-P-6000SX | |
| Steering column module component description | N80 | GF54.21-P-6050SX | |
| Central gateway control unit, component description | N93 | GF54.21-P-4170SX |
