| A1 |
Instrument cluster |
8 L |
| A2/6 |
CD changer |
23 L |
| A2/6x1 |
CD changer connector 1 |
22 G |
| B26 |
Electronic compass |
30 L |

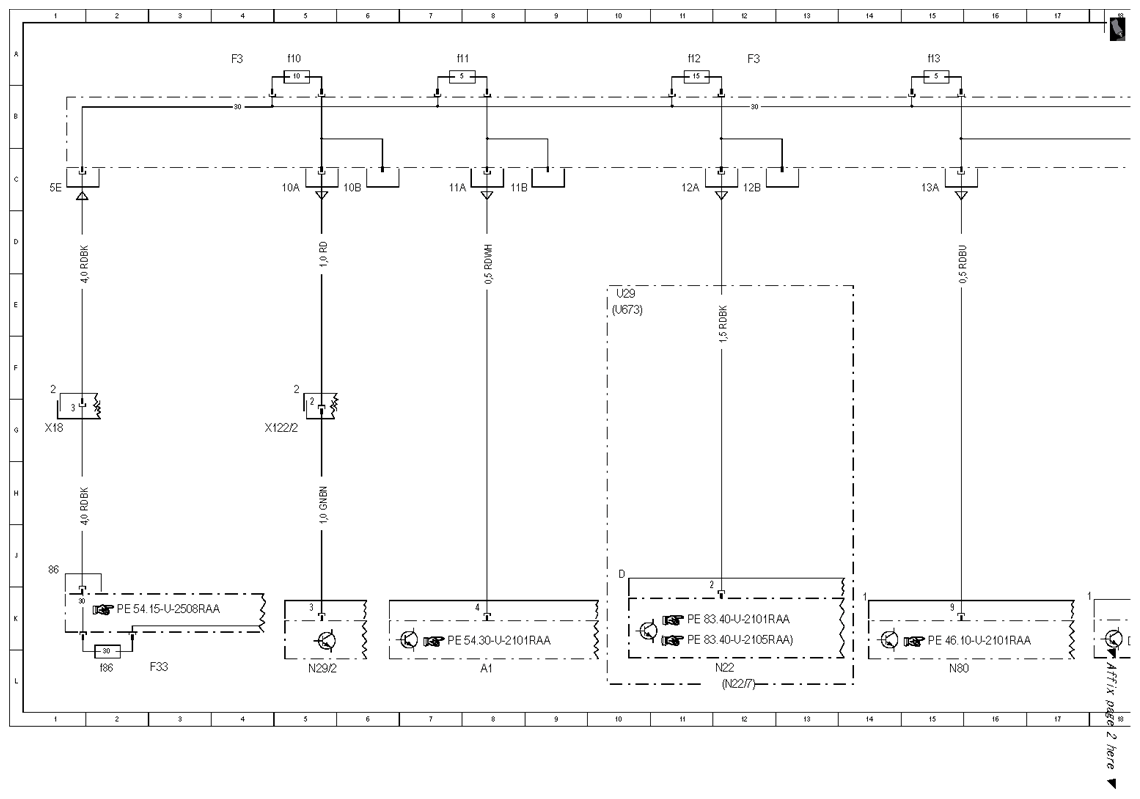

| F3 |
Cockpit fuse box |
4 A |
| F3 |
Cockpit fuse box |
12 A |
| F3 |
Cockpit fuse box |
20 A |
| F3 |
Cockpit fuse box |
28 A |
| F3 |
Cockpit fuse box |
37 A |
| F33 |
Battery compartment prefuse box |
2 L |
| F33f86 |
Fuse 86 |
2 L |
| F3f10 |
Fuse 10 |
5 A |
| F3f11 |
Fuse 11 |
7 A |
| F3f12 |
Fuse 12 |
11 A |

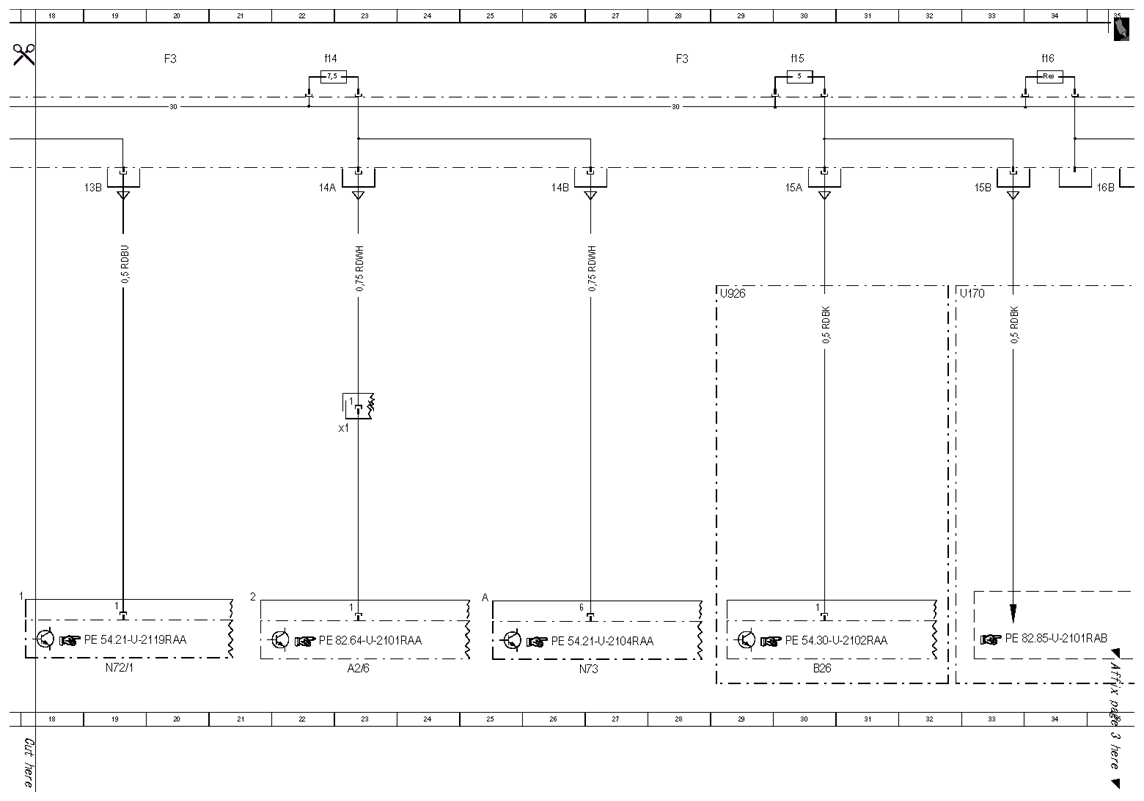

| F3f13 |
Fuse 13 |
15 A |
| F3f14 |
Fuse 14 |
22 A |
| F3f15 |
Fuse 15 |
30 A |
| F3f16 |
Fuse 16 |
34 A |

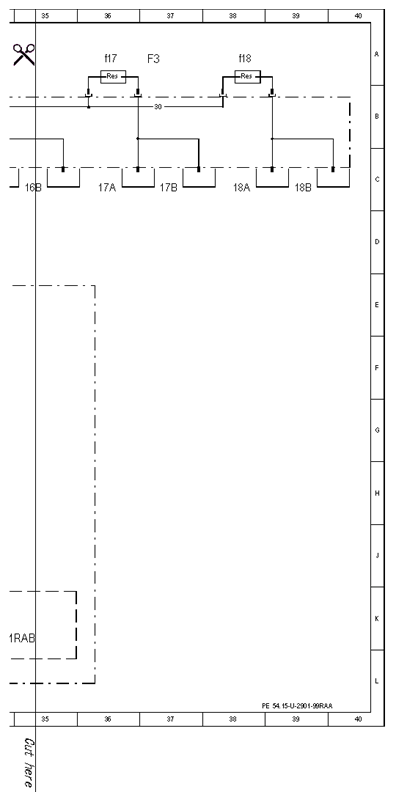

| F3f17 |
Fuse 17 |
36 A |
| F3f18 |
Fuse 18 |
38 A |
| N22 |
AAC [KLA] control and operating unit |
11 L |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
12 L |
| N29/2 |
Booster blower electronic blower controller |
5 L |
| N72/1 |
Upper control panel control unit |
19 L |
| N73 |
EIS [EZS] control unit |
26 L |
| N80 |
Steering column module |
15 L |
| U170 |
Valid for media interface |
32 E |
| U29 |
Valid for AAC [KLA] |
10 E |
| U673 |
Valid for comfort AAC [K-KLA] |
10 E |
| U926 |
Valid for compass |
29 E |
| X122/2 |
Booster blower connector (air conditioning) |
4 G |
| X18 |
Interior/cockpit connector |
1 G |
