Remove/install rear seat - AR91.12-P-1000GYB

MODEL 164.8

3rd seat row

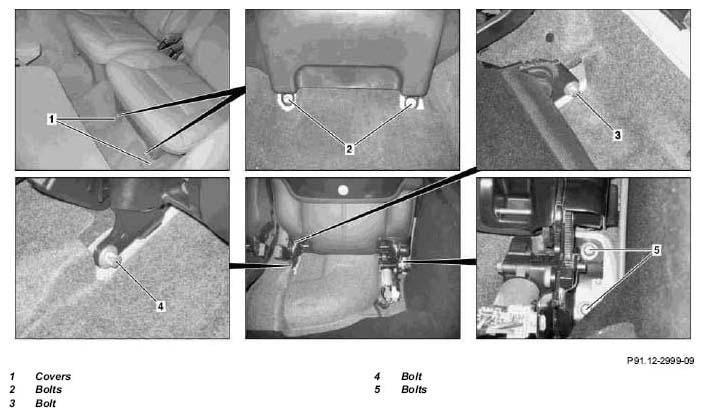

Fig 1: Identifying Rear Seat Components - 3rd Seat Row

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Unclip covers (1).	Long wedge	Figure
2	Unscrew bolt (2)		*BA91.12-P-1001-03F
3	Fold rear seat forward
4	Remove bolt (3)		*BA91.12-P-1001-03F
5	Fold up rear seat
6	Unscrew bolt (4)		*BA91.12-P-1001-03F
7	Remove screws (5)		*BA91.12-P-1001-03F
8	Release connector on folding rear backrest motor and detach
9	Remove rear seat
10	Install in the reverse order

REAR SEATS

Number	Designation		Type 164.8
BA91.12-P-1001-03F	Bolt, rear seat console to vehicle floor	Nm	50

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
