Stop lamp switch component description - GF42.10-P-2010BK

MODEL 219 with ENGINE 113.967

MODEL 164.1 with ENGINE 113.964

MODEL 251 with ENGINE 113.971

Shows model 219

Location

The brake light switch is installed at the brake pedal.

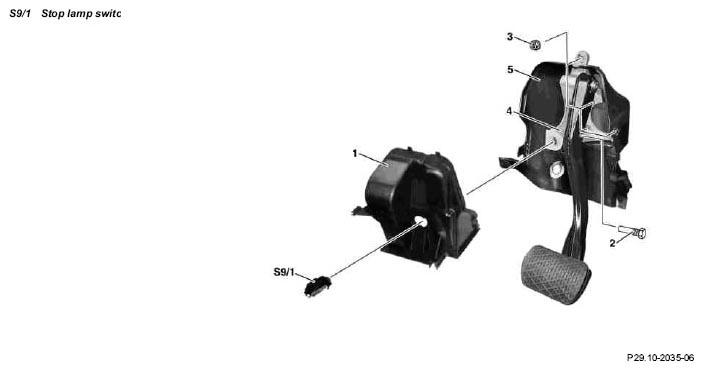

Fig 1: Identifying Stop Lamp Switch Components - Model 219

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

Record the actuation of the brake pedal to activate the brake lights and deactivate the cruise control, Distronic, etc.

Function

Contact closure is recorded (e.g. on model 219 by the Driver-side SAM control unit with fuse and relay module) and transferred on the CAN data bus.
