Remove/install temperature sensor - AR07.04-P-0070GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164, 207, 212, 251

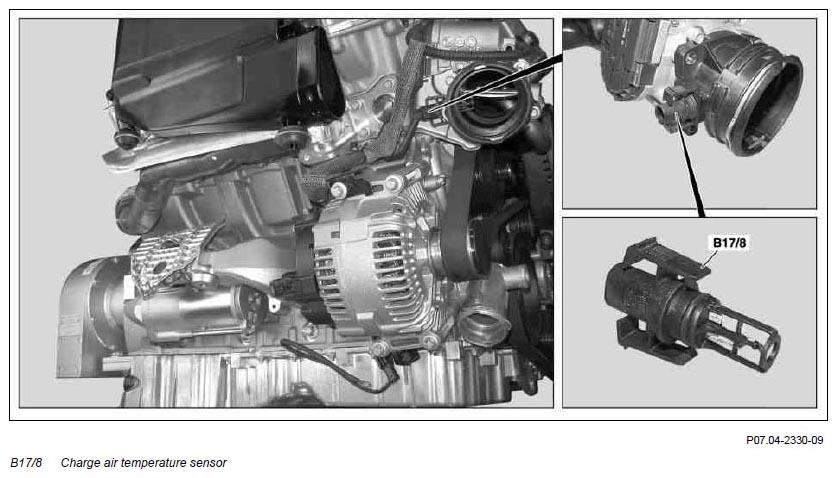

Charge air temperature sensor
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, lift gates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1.1 | Removes strut tower brace | Model 164.8 only |
AR62.30-P-2500GY |
| 1.2 | Remove partition wall between wheel wells | Model 251 only | AR62.30-P-2400RT |
| 2 | Remove engine cover | AR01.10-P-2405GZB | |
| 3 | Remove engine air intake duct upstream of air filter housing on the right | ||
| 4 | Disconnect electrical connector at charge air temperature sensor (B17/8) | ||
| 5 | Release charge air temperature sensor (B17/8) and pull out of the engine charge air duct housing downstream of the charge air cooler | ||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run |
