Remove/install intake air temperature sensor - AR07.52-P-1465GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642 in MODEL 164, 251
MODIFICATION NOTES
| 5.8.10 | "Connect STAR DIAGNOSIS and reset values in engine control unit" added | Step 5 |
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, lift gates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |

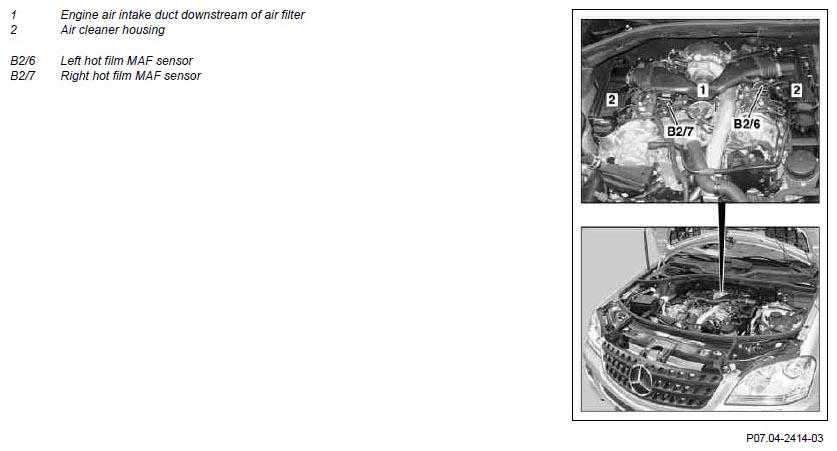

| 1 | Remove right air filter housing (2) | Model 164 | AR09.10-P-1150GZC |
| Model 251 | AR09.10-P-1150RTC | ||
| 2 | Remove engine air intake duct downstream of the air filter (1) | AR09.10-P-8130GZB | |
| 3 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 4 | Carry out engine test run | ||
| 5 | Connect STAR DIAGNOSIS and reset value in engine control unit |
|
AD00.00-P-2000-04A |
