Remove/install injection system control unit - AR07.08-P-7008GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272.973, 642.940 in MODEL 164

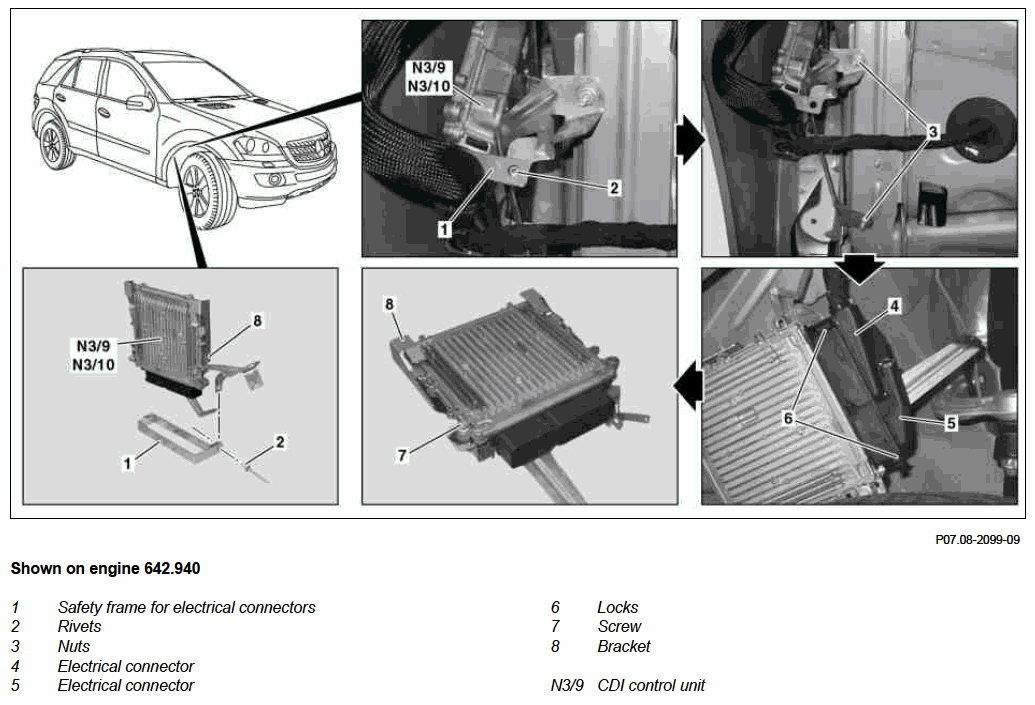

Fig 1: Removing/Installing Injection System Control Unit (1 Of 2)
G00544461Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

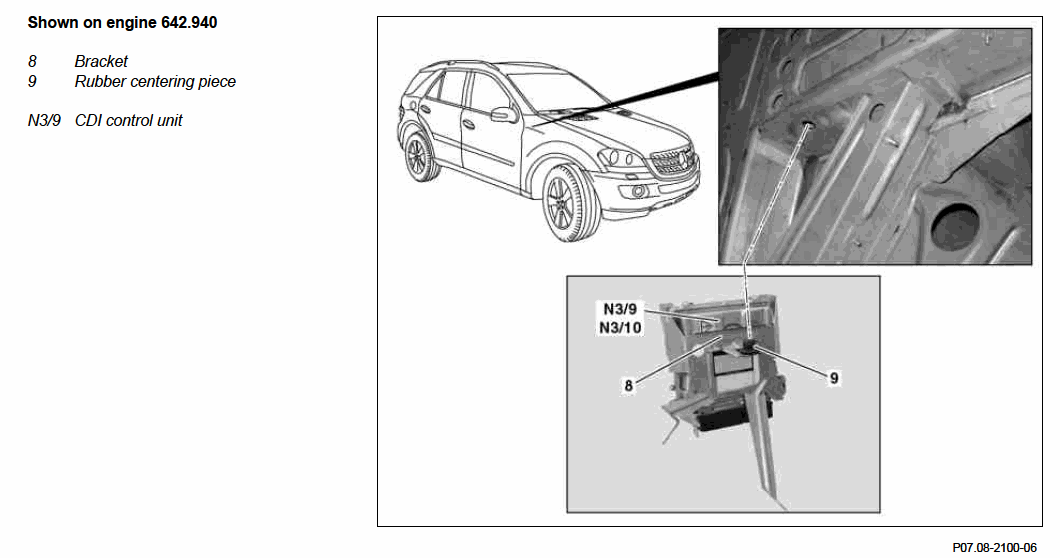

Fig 2: Removing/Installing Injection System Control Unit (2 Of 2)
G00544462Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
1 Read out coding from Parktronic system control unit (N3/9) Only when exchanging the CDI control unit and when it can still be read out with STAR DIAGNOSIS. AD00.00-P-2000-04A
DANGER Risk of death  caused by vehicle slipping or toppling off the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
2 Raise vehicle with vehicle lift   AR00.60-P-1000GZ
3 Remove right front wheel   AP40.10-P-4050Z
4 Remove rear section of fender liner in front fender on the right   AR88.10-P-1300GZ
5 Bore out rivet (2) and remove safety frame for electrical connectors (1) 5.0 mm dia. bit
Installation:  Replace rivet

6 Unscrew nuts (3) and remove bracket (8) along with CDI control unit (N3/9) Installation:  The rubber centering piece (9) on bracket (8) must be placed in hole in upper longitudinal member.
7 Disconnect the electrical connectors (4, 5) at the CDI control unit To disconnect the electrical connectors at the CDI control unit, pull the locks (6) to the outside.
8 Unscrew the bolt (7) and pull the CDI control unit out of the bracket (8)
9 Install in the reverse order
10 Code the CDI control unit Only if a new CDI control unit is installed. AD00.00-P-2000-04A
