Separate timing chain - AR05.10-P-7601-01PI

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Case (602 589 00 98 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Chain Separating Tool (602 589 02 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Pressure Pin (602 589 04 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Pressure Pins (602 589 04 63 01)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Insert pressure pin (1) into the pressure screw (2) and tighten the union nuts (3).
Screw the pressure pin (2) into the guide sleeve (4).
The pressure pin (1) must not jut into the tapered incoming area of the guide sleeve (4).
Screw the guide sleeve (4) into the chain separating tool (5) .

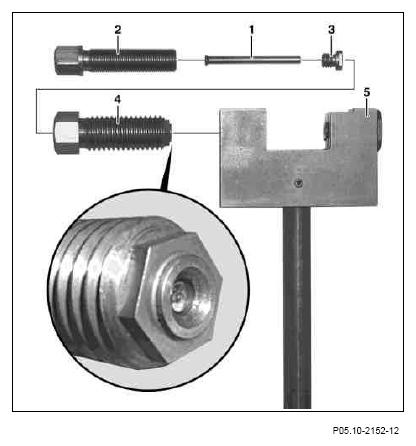

Fig 5: Identifying Pressure Pin, Screw, Union Nuts, Guide Sleeve And Separating Tool
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Cover timing case recess and cylinder head with shop towels.
Parts, which have fallen into the timing case recess or the cylinder head must be removed in order to avoid damage to the engine.
Fit the chain separating tool (5) onto the timing chain.
Screw the guide sleeve (4) into the chain separating tool (5) until the openings of the guide sleeve (4) and the guide (5a) surround the timing chain bolts (6a).
Screw the pressure pin (2) into the guide sleeve (4) and press out the timing chain bolts (6a).

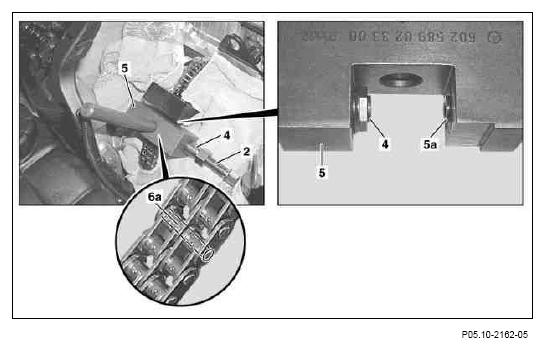

Fig 6: Identifying Chain Separating Tool Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove timing chain bolts (6a) from the guide (5a).
Unscrew pressure pin (2) from the guide sleeve (4) and remove the chain separating tool (5) .

Fig 7: Removing Chain Separating Tool
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
