Drawing in timing chain - AR05.10-P-7601-04PI

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Hold-Down Device Set (642 589 00 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Hold-Down (642 589 01 40 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Case (602 589 00 98 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Assembly Links (602 589 02 40 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Cover timing case recess and cylinder head with clean rag.
Parts, which have fallen into the timing case recess or the cylinder head must be removed in order to avoid damage to the engine.
Connect the new timing chain (2) and the old timing chain (1) with the assembly link (7.1), the outer assembly plate (7.2) and the assembly locking element (7.3), and secure.
The positioning bore (arrow) of the new timing chain (2) must be visible.
Remove rag from timing case recess and cylinder head.
Otherwise when cranking the engine, this can be drawn into the timing case recess.

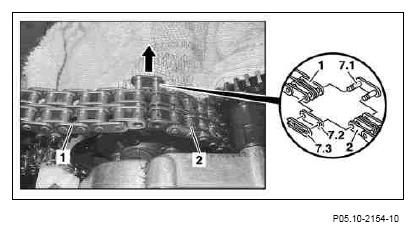

Fig 5: Connecting New & Old Timing Chains
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Slowly turn the engine at the center bolt of the crankshaft in the in direction of engine rotation until the ends of the new timing chain (2) can be connected.
During the insertion procedure, the old and new timing chains (1, 2) must be fed by a second person in and out of the timing case slot. The old and new timing chains (1, 2) are always held by the hold-down device (010) in mesh with the camshaft sprockets.

Fig 6: Holding Timing Chain
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove the assembly clip-type fastener (7.1), the outer assembly plate (7.2), the assembly locking element (7.3) and the old timing chain (1).
As the assembly clip-type fastener (7.1), the outer assembly plate (7.2) and the assembly locking element (7.3) are designed to assist with assembly only and are not suitable for engine running, the new timing chain (2) can rip, which would lead to engine damage.

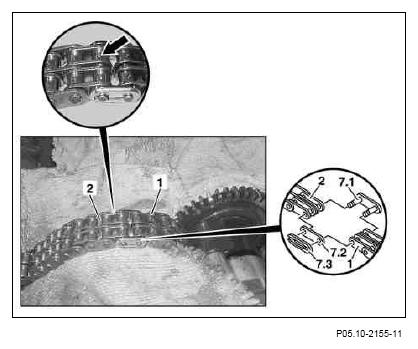

Fig 7: Identifying Timing Chains (Old And New)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
