Replace rear crankshaft radial sealing ring - AR03.20-P-3063GZB: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 164

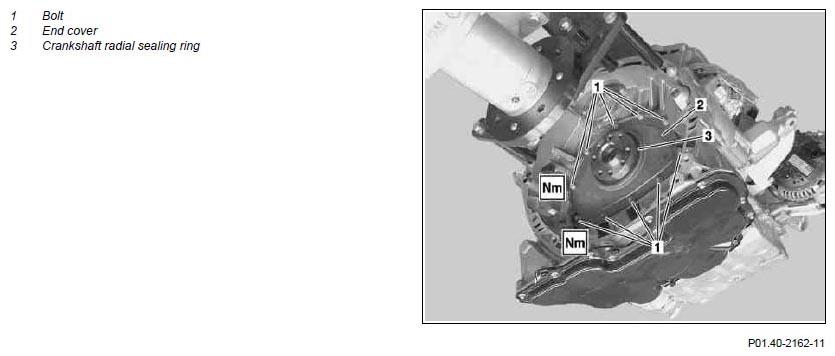

Fig 1: Identifying Rear Cover, Crankshaft Radial Sealing Ring And Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

28.5.08

Clean sealing surfaces - added

Step 2

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove end cover (2)	Installation: The end cover (2) must be replaced as the crankshaft radial sealing ring (3) is vulcanized into the end cover (2) and otherwise, there is leakage. Installation: Instructions in notes on sealant application and on correct installation of the end cover (2) must be strictly observed. Environmental and engine damage can occur if there is wrong installation. ↓	AR01.40-P-8913GZB
		Install rear crankshaft radial sealing ring	AR03.20-P-3063-01OM
			*BA01.40-P-1001-01S
			Fig 2
		Loctite sealant 5970	*BR00.45-Z-1013-01A
		Cleaner from package	*BR00.45-Z-1028-04A
		Loctite 7200	*BR00.45-Z-1038-04A
	Clean
2	Clean sealing surfaces for end cover (2)	Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Cleaning spray, Loctite 7063 (150ml)	*BR00.45-Z-1046-04A
3	Install in the reverse order

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation			Engine 642
BA01.40-P-1001-01S	Bolt connecting rear end cover to crankcase	Stage 1	Nm	8
BA01.40-P-1001-01S	Bolt connecting rear end cover to crankcase	Stage 2	Nm	10

Fig 2: Identifying Insertion Tool (271 589 00 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite sealant 5970	A 003 989 98 20
BR00.45-Z-1028-04A	Cleaner from package	Adolf Wurth GmbH & Co. KG Reinhold - Wurth - Str. 12-17 74653 Kunzelsau - Gaisbach Germany Tel.+49 7940 15-0 Fax +49 7940 15-1000 www.wuerth.de
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH Arabellastrasse 17 81925 Munchen Germany Tel. +49 899268-0 Fax+ 49 899101978 www.Loctite.de
BR00.45-Z-1046-04A	Cleaning spray, Loctite 7063 (150ml)	A 001 986 71 71 10
