Removing/installing piston rings - AR03.10-P-7311GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 164

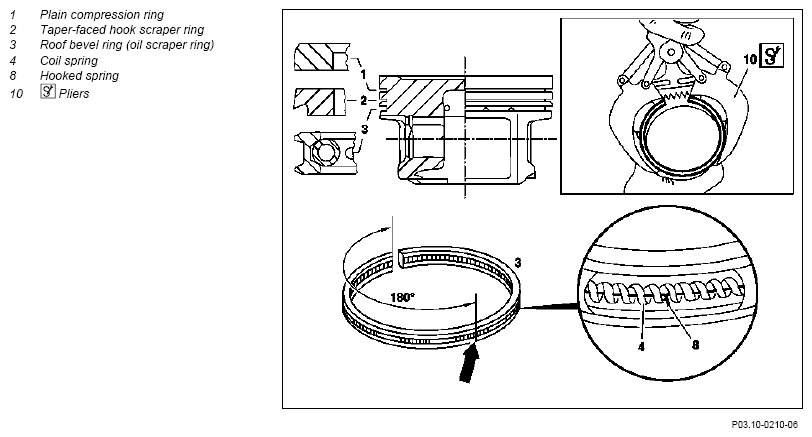

Fig 1: Removing/Installing Piston Rings
G07252949Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Measuring side clearance:

Fig 2: Measuring Side Clearance
G07252950Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Measuring end gap:

Fig 3: Measuring End Gap
G07252951Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/Install
1 Remove pistons   AR03.10-P-7021GZB
2 Determine end clearance of piston rings COMMERCIALLY AVAILABLE TOOLS Feeler gauge *WH58.30-Z-1004-12A
Piston ring vertical clearance *BE03.10-P-1003-02B
3 Remove piston rings from piston IMPORTANTInstallation:  Pay attention to the installation position of the piston rings. The emblem "Top" or the name of the manufacturer must point towards the piston crown.
IMPORTANTInstallation:  Insert the hook spring (8) with the garter spring (4) offset 180° (arrow) to the ring gap of the bevel-edged ring (oil scraper ring) (3). Insert the plain compression ring (1) and the taper-faced hook scraper ring (2) with the ring gaps offset by 120°.
SPECIAL TOOL Pliers Fig 4
4 Determine end gap of piston rings IMPORTANTInstallation:  Insert respective piston ring into the unused area of the cylinder contact surface.
COMMERCIALLY AVAILABLE TOOLS Feeler gauge *WH58.30-Z-1004-12A
Piston ring end gap *BE03.10-P-1004-02B
5 Install in the reverse order
TEST VALUES FOR PISTONS

Number Designation Engine 642
BE03.10-P-1003-02B Piston ring vertical clearance Groove 1 mm 0.12...0.16
groove 2 mm 0.065...0.110
Groove 3 mm 0.03...0.07
BE03.10-P-1004-02B Piston ring end gap Groove 1 mm 0.40...0.55
groove 2 mm 0.25...0.50
Groove 3 mm 0.20... 0.40
Fig 4: Identifying Pliers (000 589 51 37 00)
G07252952Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1004-12A Feeler gauge
