Remove/install exhaust system from flange connection - AR49.10-P-7280GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 164

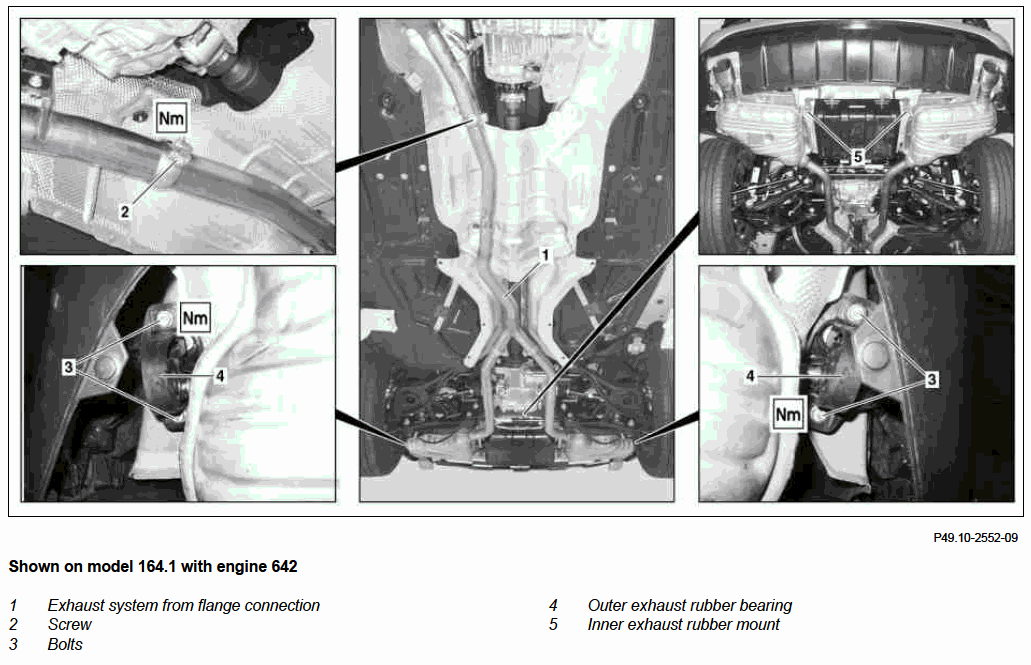

Fig 1: Removing/Installing Exhaust System From Flange Connection

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A

1	Raise vehicle		AR00.60-P-1000GZ
2	Support exhaust system from flange connection (1) using a transmission jack and transmission platform
3	Remove bolts on flange connection	Installation: Clean connecting points free of combustion and corrosion residues.
3	Remove bolts on flange connection	Hose clamp, diesel particulate filter to rear muffler	*BA14.40-P-1007-01B
4	Remove bolts (3) from outer exhaust rubber bearing (4)		*BA49.10-P-1008-01U
5	Remove bolts from inner exhaust rubber bearing (5)		*BA49.10-P-1011-01U
6	Remove exhaust system from flange connection (1)	With the aid of a helper.
	Checking
7	Check inner exhaust rubber mount (5) and outer exhaust rubber mount (4)	Check for wear, replace if required. Installation: Coat exhaust rubber mount with liquid lubricant for easier installation. Lubricant paste	*BR00.45-Z-1002-06A
8	Install in the reverse order
	Checking
9	Check installation position and clearance of exhaust system	The exhaust system must be mounted free of tension, align exhaust system if required.
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Test run engine and check exhaust system for leaks		AS00.00-Z-0005-01A

EXHAUST SYSTEM

Number	Designation		Engine 642 in model 164 without Code U42
BA49.10-P-1008-01U	Bolt, exhaust rubber mount bracket (outer) to bumper bracket	Nm	12
BA49.10-P-1011-01U	Bolt, exhaust rubber mount bracket (inner) to body	Nm	20

DIESEL PARTICULATE FILTER

Number	Designation		Engine 642 with code 474
BA14.40-P-1007-01B	Hose clamp, diesel particulate filter to rear muffler	Nm	20
BA14.40-P-1008-01B	Flange connection, diesel particulate filter to rear muffler	Nm	20

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
