Remove/install catalytic converter - AR49.10-P-5500GZQ

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 164

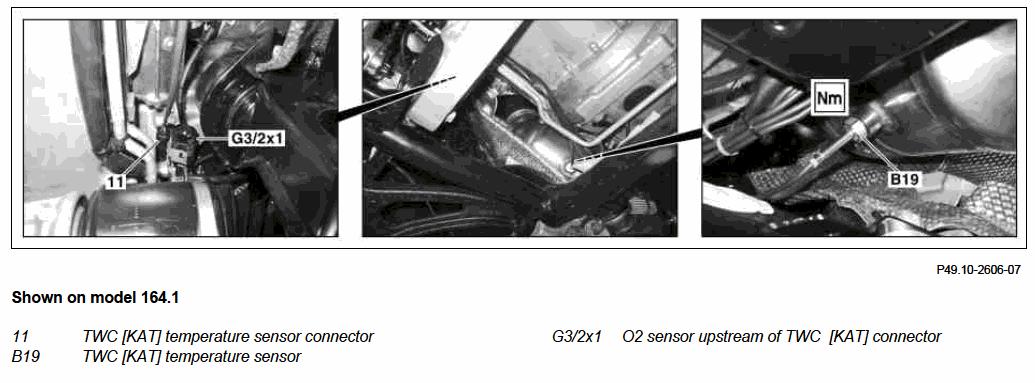

Fig 1: Removing/Installing Catalytic Converter (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

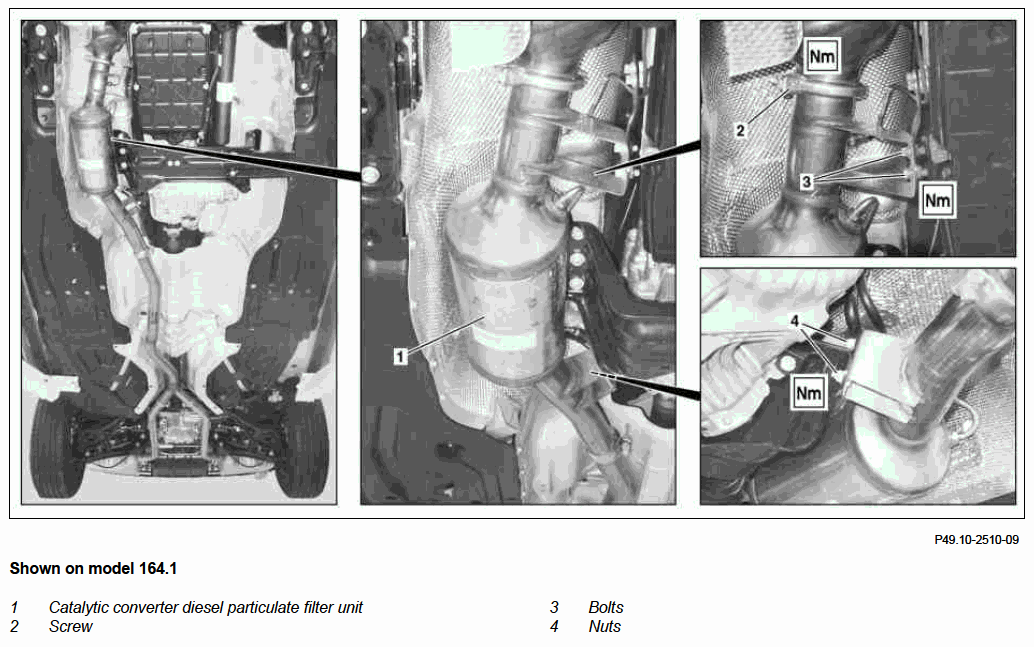

Fig 2: Removing/Installing Catalytic Converter (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

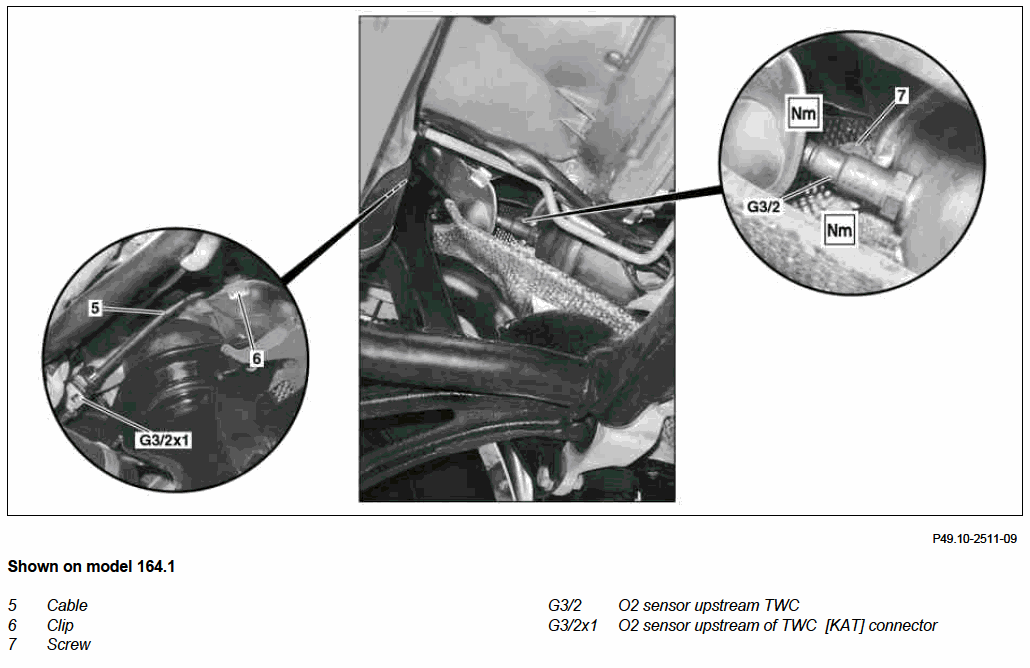

Fig 3: Removing/Installing Catalytic Converter (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle		AR00.60-P-1000GZ
2	Remove catalytic converter diesel particulate filter unit (1) from catalytic converter by removing bolt (2)	Installation: Clean connecting points free of combustion and corrosion residues.
			*BA14.40-P-1006-01B
3	Remove catalytic converter diesel particulate filter unit (1) from transmission support by removing bolt (3)		*BA14.40-P-1005-01B
4	Unscrew nuts (4) and remove catalytic converter diesel particulate filter unit (1) from transfer case bracket	Installation: Clean connecting points free of combustion and corrosion residues.
			*BA49.10-P-1003-01U
5	Support catalytic converter diesel particulate filter device (1) with telescoping transmission jack and transmission platform
6	Unclip TWC temperature sensor connector (11) and electrical line on TWC temperature sensor (B19)
7	Unclip connector O2 for sensor upstream TWC (G3/2x1) and electrical cable (5) from clip (6)
8	Remove bolt (7) and catalytic converter	Installation: Clean connecting points free of combustion and corrosion residues.
			*BA49.10-P-1005-01U
9	Install in the reverse order
	Checking
10	Check installation position and clearance of exhaust system	The exhaust system must be mounted free of tension, align exhaust system if required.
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Test run engine and check exhaust system for leaks

EXHAUST SYSTEM

Number	Designation			Engine 642 in model 164 without Code U42
BA49.10-P-1003-01U	Self-locking nut, diesel particulate filter to transfer case bracket		Nm	20
BA49.10-P-1005-01U	Bolt, primary catalytic converter hose clamp to catalytic converter		Nm	20

DIESEL PARTICULATE FILTER

Number	Designation		Engine 642 with code 474
BA14.40-P-1005-01B	Nut, diesel particulate filter to bracket	Nm	20
BA14.40-P-1006-01B	Hose clamp, diesel particulate filter to catalytic converter	Nm	35
