Remove/install right engine support - AR22.10-P-4340GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164, 251
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 1 | Disconnect ground line of battery | ||
| Model 164 | AR54.10-P-0003GZ | ||
| Model 251 | AR54.10-P-0003RT | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| 2.1 | Removes spring dome strut | Only for model 164.8 |
AR62.30-P-2500GY |
| 2.2 | Remove partition wall between wheelhouses | Model 251 | AR62.30-P-2400RT |
| 3 | Remove engine trim panel | ||
| 4 | Remove left and right engine intake air ducts | ||
| 5 | Remove bottom section of soundproofing | Model 164 | AR94.30-P-5300GZ |
| Model 251 | AR94.30-P-5300RT | ||
| 6 | Dismantle engine mount at right engine support (1). | Vehicles with 4MATIC | AR22.10-P-1100GZB |
| Vehicles without 4MATIC | AR22.10-P-1100RTB | ||

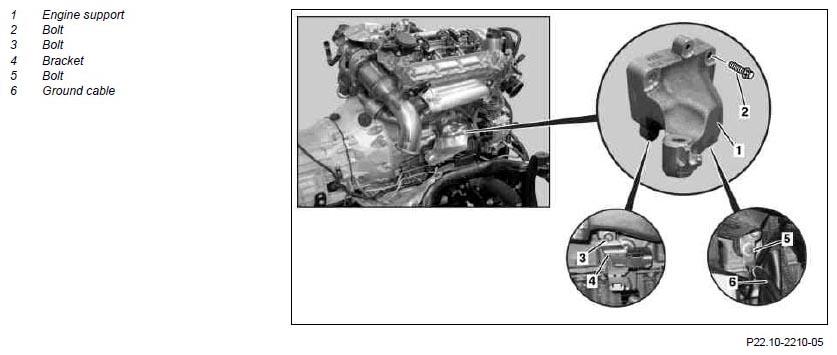

| 7 | Remove bolt (5) for ground line (6) on right engine support (1) | ||
| 8 | Remove ground line (6) for right engine support (1) and place to one side | ||
| 9 | Remove bolt (3) from bracket (4) for electrical connector at right engine support (1) | ||
| 10 | Remove bracket (4) for electrical connector at right engine support (1) from below | ||
| 11 | Remove bolt (2) | ||
| *BA22.10-P-1001-02A | |||
| 12 | Remove right engine support (1) in the downward direction | ||
| 13 | Install in the reverse order |
ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BA22.10-P-1001-02A | Bolt, engine support to crankcase | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | ||
