Remove/install left engine support - AR22.10-P-4350GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164, 251
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1.1 | Removes spring dome strut | Model 164.8 only |
AR62.30-P-2500GY |
| 1.2 | Remove partition wall between wheelhouses | Model 251 only | AR62.30-P-2400RT |
| 2 | Remove engine trim panel | ||
| 3 | Remove left and right engine intake air ducts | ||
| 4 | Remove bottom sections of soundproofing | Model 164 | AR94.30-P-5300GZ |
| Model 251 | AR94.30-P-5300RT | ||

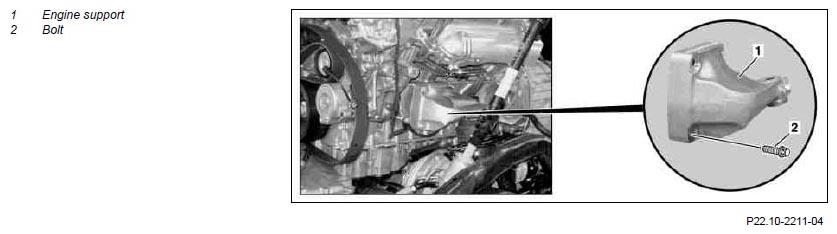

| 5 | Dismantle engine mount at left engine support (1). | Vehicles with 4MATIC | AR22.10-P-1100GZB |
| Vehicles without 4MATIC | AR22.10-P-1100RTB | ||
| 6 | Remove bolt (2) | ||
| *BA22.10-P-1001-02A | |||
| 7 | Remove left engine support (1) in the downward direction | ||
| 8 | Install in the reverse order |
ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BA22.10-P-1001-02A | Bolt, engine support to crankcase | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | ||
