Remove/install engine mount or engine crossmember at the rear - AR22.10-P-1180GZD
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273, 629, 642 in MODEL 164
ENGINES 272, 273, 642 in MODEL 251
MODIFICATION NOTES
| 17.11.06 | Bolt, rear engine crossmember to body | Engine 273 in model 164.8 | *BA22.10-P-1005-03G |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who are carriers of electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||

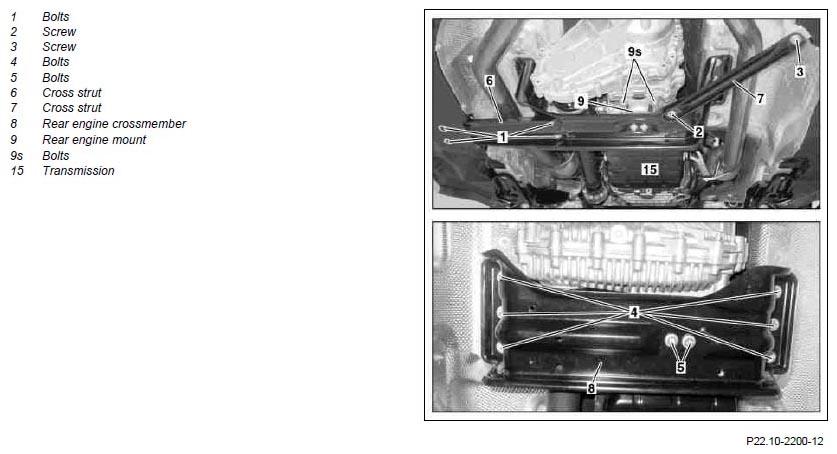

| Perform steps 1 to 4 when removing the rear engine mount (9) | |||
| 1 | Remove transmitter key or Keyless - Go start and stop button | On model 164.195 Switch off ignition. Remove transmitter key and Keyless - Go stop button from vehicle and keep at a location beyond transmitter range (at least 2 m). |
|
| 2 | Remove bolts (5) | *BA22.10-P-1004-03G | |
| *BA22.10-P-1004-03F | |||
| 3 | Remove bolts (9s) and take off rear engine mount (9) | *BA22.10-P-1003-03G | |
| *BA22.10-P-1003-03F | |||
| 4 | Support transmission (15) with transmission jack and plate | ||
| 5 | Lower transmission (15) with transmission jack somewhat and remove rear engine mount (9) | ||
| Perform steps 5 to 8 when removing the rear engine crossmember (8) | |||
| 6 | Remove bolts (1) and cross strut (6) | *BA62.30-P-1003-01E | |
| *BA62.30-P-1004-01E | |||
| 7 | Remove bolt (2) | *BA62.30-P-1001-01E | |
| 8 | Loosen bolt (3) and turn cross strut (7) to the side | *BA62.30-P-1002-01E | |
| 9 | Remove bolts (4) and remove rear engine crossmember (8) | *BA22.10-P-1005-03G | |
| *BA22.10-P-1005-03F | |||
| 10 | Install in the reverse order |
CROSSMEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 164 | Model 251 | ||
|---|---|---|---|---|---|
| BA62.30-P-1001-01E | Bolt, right bracket to engine crossmember | M10 | Nm | 45 | 45 |
| BA62.30-P-1002-01E | Bolt, right bracket to transmission tunnel | M10 | Nm | 45 | 45 |
| BA62.30-P-1003-01E | Bolt, left bracket to engine crossmember | M10 | Nm | 45 | 45 |
| BA62.30-P-1004-01E | Bolt, left bracket to transmission tunnel | M10 | Nm | 45 | 45 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 164 | |
|---|---|---|---|
| BA22.10-P-1003-03G | Bolt, rear engine mount to transmission | Nm | 20 |
| BA22.10-P-1004-03G | Bolt, rear engine mount to rear engine crossmember | Nm | 58 |
| BA22.10-P-1005-03G | Bolt, rear engine crossmember to body | Nm | 55 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 251 | |
|---|---|---|---|
| BA22.10-P-1003-03F | Bolt, rear engine mount to transmission | Nm | 20 |
| BA22.10-P-1004-03F | Bolt, rear engine mount to rear engine crossmember | Nm | 58 |
| BA22.10-P-1005-03F | Bolt, rear engine crossmember to body | Nm | 55 |
