Remove/install engine mount - AR22.10-P-1100GZB: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 164

ENGINES 642 in MODEL 251.020/023/022/122/123

Shown on right side of engine

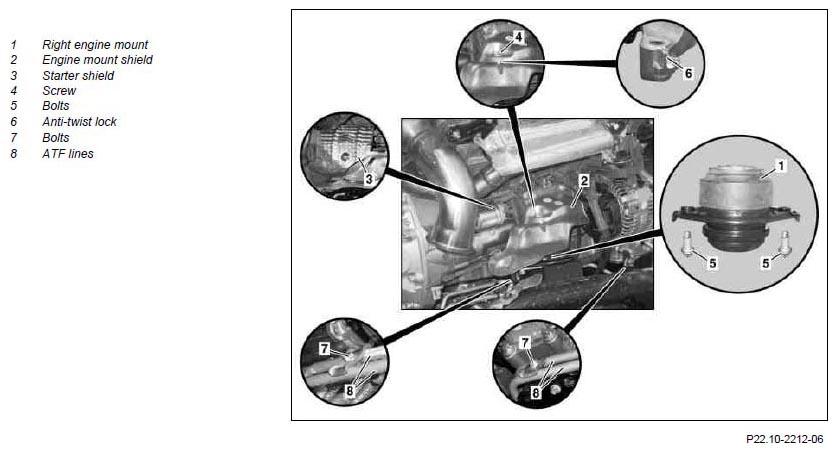

Fig 1: Identifying Engine Mount Components - Right Side
G06878183Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left side of engine

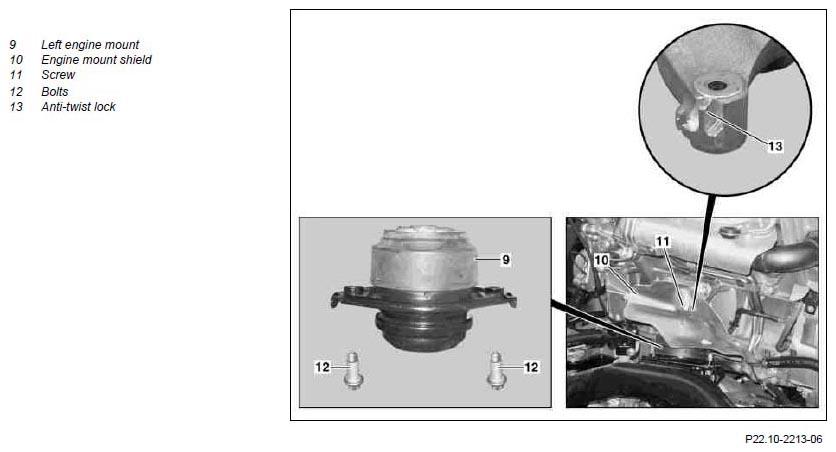

Fig 2: Identifying Engine Mount Components - Left Side
G06878184Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, lift gates or sliding roof Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1.1 Removes strut tower brace Model 164.8 only
IMPORTANT Remove strut tower brace from strut tower mounts.		 AR62.30-P-2500GY
1.2 Remove partition wall between wheel wells Model 251 only AR62.30-P-2400RT
2 Remove engine trim panel Model 164 AR01.10-P-2405GZB
Model 251 AR01.10-P-2405RTB
3 Remove left and right engine intake air ducts
  Right hand engine mount
DANGER Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. AS54.10-Z-0001-01A
4 Disconnect ground line at battery NOTES Insulate clamping device of the ground line in order to prevent inadvertent contact with the ground point of the battery.
Model 164 AR54.10-P-0003GZ
Model 251 AR54.10-P-0003RT
NOTES Notes on battery   AH54.10-P-0001-01A
5 Remove right air filter housing Model 164 AR09.10-P-1150GZC
Model 251 AR09.10-P-1150RTC
6 Partly remove poly - V belt   AR13.20-P-0001GZB
7 Remove alternator   AR15.40-P-5032GZB
8 Unclip electrical connector at engine mount shield (2)
9 Remove bolt (4) from right engine mount (1) from above TORQUE SPECIFICATION Model 164 *BA22.10-P-1002-03G
TORQUE SPECIFICATION Model 251 *BA22.10-P-1002-03F
SPECIAL TOOL Fig 3
10 Remove engine mount shield (2) from above IMPORTANTInstallation:  Pay attention to anti-twist lock (6) at engine support.
11 Remove bolt (11) from left engine mount (9). TORQUE SPECIFICATION Model 164 *BA22.10-P-1002-03G
TORQUE SPECIFICATION Model 251 *BA22.10-P-1002-03F
12 Mount engine lifting device and raise engine Model 164 AR33.10-P-0100-01GZ
Model 251
IMPORTANT Pay attention when lifting out engine that no lines are damaged and that the engine does not lean against partition wall.
IMPORTANT Observe manufacturer's assembly specifications and safety information.		 AR33.10-P-0100-01RT
TORQUE SPECIFICATION Model 251 *BA62.30-P-1008-01E
SPECIAL TOOL Engine hoist Fig 4
13 Remove bottom section of soundproofing Model 164 AR94.30-P-5300GZ
Model 251 AR94.30-P-5300RT
14 Remove starter shield (3) IMPORTANT If installed. AR15.30-P-7100GZB
15 Remove bolts (7) for hose clamps of automatic transmission oil lines (8) TORQUE SPECIFICATION *BA27.55-P-1004-01D
16 Remove bolts (5) from right engine mount (1) TORQUE SPECIFICATION Model 164 *BA22.10-P-1001-03G
TORQUE SPECIFICATION Model 251 *BA22.10-P-1001-03F
17 Take right engine mount (1) down and out IMPORTANTInstallation:  Pay attention to anti-twist lock (6) at engine support.
IMPORTANT Observe environmental protection regulations for disposal of right engine mounts (1); give right engine mount (1) to mixed scrap metal.
  Left engine mount
18 Mount engine lifting device and raise engine Model 164 AR33.10-P-0100-01GZ
Model 251
IMPORTANT Pay attention when lifting out engine that no lines are damaged and that the engine does not lean against partition wall.
IMPORTANT Observe manufacturer's assembly specifications and safety information.		 AR33.10-P-0100-01RT
TORQUE SPECIFICATION Model 251 *BA62.30-P-1008-01E
SPECIAL TOOL Engine hoist Fig 4
19 Remove bottom section of soundproofing Model 164 AR94.30-P-5300GZ
Model 251 AR94.30-P-5300RT
20 Remove bolt (11) from left engine mount (9). TORQUE SPECIFICATION Model 164 *BA22.10-P-1002-03G
TORQUE SPECIFICATION Model 251 *BA22.10-P-1002-03F
SPECIAL TOOL Fig 3
21 Remove engine mount shield (10) from below IMPORTANT If installed.
IMPORTANTInstallation:  Pay attention to anti-twist lock (13) at engine support.
22 Remove bolts (5) from right engine mount (1) TORQUE SPECIFICATION Model 164 *BA22.10-P-1001-03G
TORQUE SPECIFICATION Model 251 *BA22.10-P-1001-03F
23 Remove bolts (12) from left engine mount (9) TORQUE SPECIFICATION Model 164 *BA22.10-P-1001-03G
TORQUE SPECIFICATION Model 251 *BA22.10-P-1001-03F
24 Remove left engine mount (9) downwards IMPORTANTInstallation:  Pay attention to anti-twist lock (13) at engine support.
IMPORTANT Observe environmental protection regulations for disposal of left engine mounts (9); give left engine mount (9) to mixed scrap metal.
25 Install in the reverse order
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 164
BA22.10-P-1001-03G Bolt, front engine mount to front axle carrier Nm 53
BA22.10-P-1002-03G Bolt connecting front engine mount to engine support Nm 53
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 251
BA22.10-P-1001-03F Bolt, front engine mount to front axle carrier Nm 53
BA22.10-P-1002-03F Bolt connecting front engine mount to engine support Nm 53
TRANSMISSION OIL COOLING SYSTEM

Number Designation Transmission 722.9
BA27.55-P-1004-01D Bolt, dual clamp to oil line Nm 8
CROSSMEMBER AND FRONT REINFORCEMENT

Number Designation Model 251
BA62.30-P-1008-01E Bolt for partition wall reinforcement between wheel well liners to fender Nm 10
Fig 3: Identifying Set Of Engine Bearing Wrenches (001589 0116 00)
G06878185Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Engine Lifting Fixture (240 589 00 61 00)
G06878186Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
