Remove/install camshaft Hall sensor - AR15.10-P-2000GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Removes spring dome strut | Model 164.8 only |
AR62.30-P-2500GY |
| 2 | Remove engine trim panel | ||

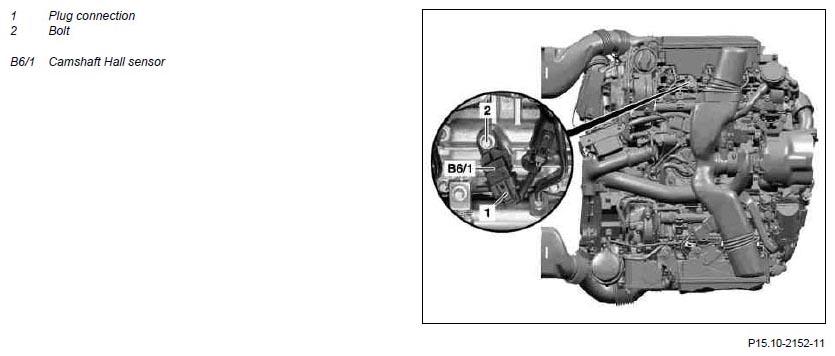

| 3 | Disconnect connector (1) | ||
| 4 | Remove bolt (2) | *BA15.10-P-1002-03G | |
| 5 | Remove camshaft Hall sensor (B6/1) | ||
| 6 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Check for oil leaks with engine running |
HALL SENSOR
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA15.10-P-1002-03G | Position sensor, camshaft to cylinder head cover | Nm | 8 |
