Remove, install coolant temperature sensor - AR15.60-P-2711GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164
| Remove/install | |||
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| 1 | Remove engine intake air duct downstream of air filter | AR09.10-P-8130GZB | |
| 2 | Detach clutch on coolant temperature sensor (B11/4) | ||
| 3 | Unlatch securing clamp (1) | ||

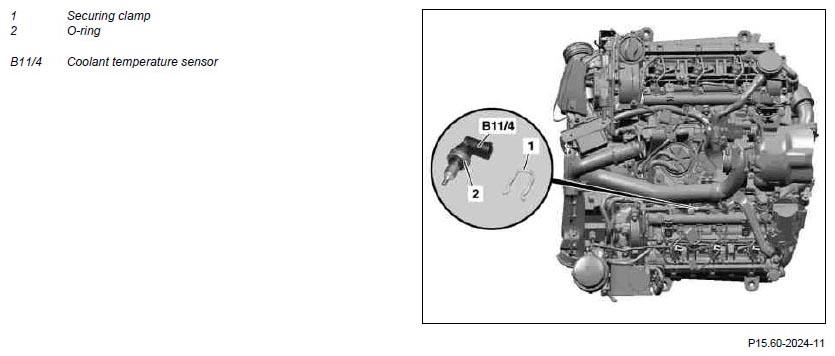

| 4 | Remove coolant temperature sensor (B11/4) | ||
| 5 | Install in the reverse order | ||
| 6 | Inspect cooling system for leaks | AR20.00-P-1010GZB |
