Remove/install side step - AR88.30-P-2400GY

MODEL 164 with CODE (846) Running boards

Shown on model 164.8

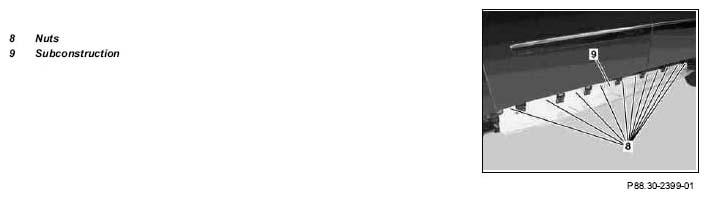

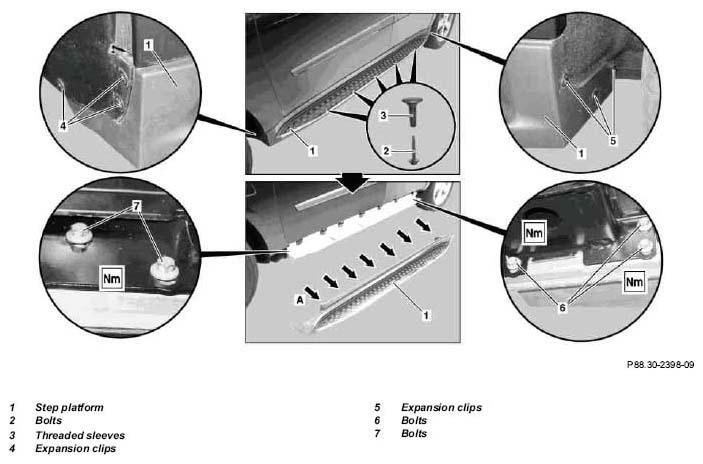

Fig 1: Identifying Side Step Remove/Install Components - Shown On Model 164.8

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.8

Fig 2: Identifying Side Step Remove/Install Components - Shown On Model 164.8

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Move vehicle onto drive-on platform	When using lifting platform, bolts (6) cannot be removed.
2	Remove rear rubber mounts for lifting platform plate	So that bolts (6) can be removed.
3	Unscrew bolt (2)
4	Remove threaded sleeves (3).
5	Remove expansion clips (4, 5)	Installation:  Replace expansion clips.
6	Open front and rear door
7	Insert mounting wedge between longitudinal member and running board (1) and unclip metal clips (arrows A) from subconstruction (9).
8	Remove running board (1)	When removing and installing, pay particular attention to lower edge of front and rear door to prevent paint damage.
9	Close front and rear door
10	Unscrew nuts (8).	Installation:  Install new nuts.
11	Remove bolts (6, 7)	Installation:  Align subconstruction (9) (raise slightly), then tighten bolts.
12	Remove subconstruction (9)	The subconstruction is sharp edged. Danger of paint damage.
13	Install in the reverse order
